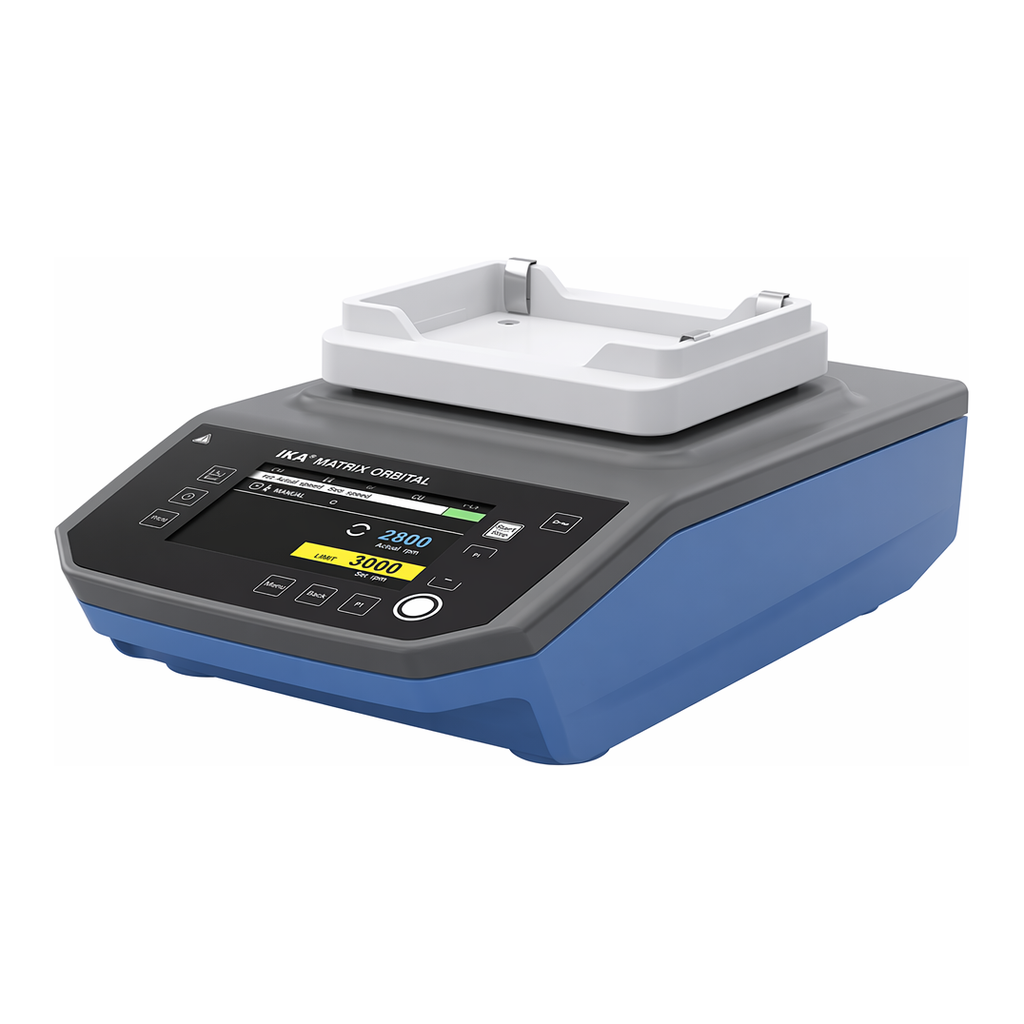

IKA MATRIX Orbital Thermoshaker 가열&냉각 쉐이커

■ 혈액 샘플, 약제, DNA / RNA 샘플, ELISA 분석에 사용

■ 자동 Mixing, Heating, Cooling 시스템
■ 인서트, 부가장치 및 충전량에 따라 속도 조절
■ 최대 3,000rpm의 속도와 3mm의 Shaking Stroke으로 액체가 빠르고 효과적으로 혼합됨
■ 교차오염 없이 최적의 혼합 결과를 얻을 수 있음
■ 알루미늄 다이캐스팅으로 견고함과 안정성 보장
■ IKA > <

Cat. No.	Model	Type
H04-05-665	30000627	Mixing
H04-05-666	30000750	Mixing＆Heating
H04-05-667	30000751
H04-05-668	30000747
H04-05-669	30000753
H04-05-670	30000731	Mixing, Heating＆Cooling
H04-05-671	30000717	Heating＆Cooling

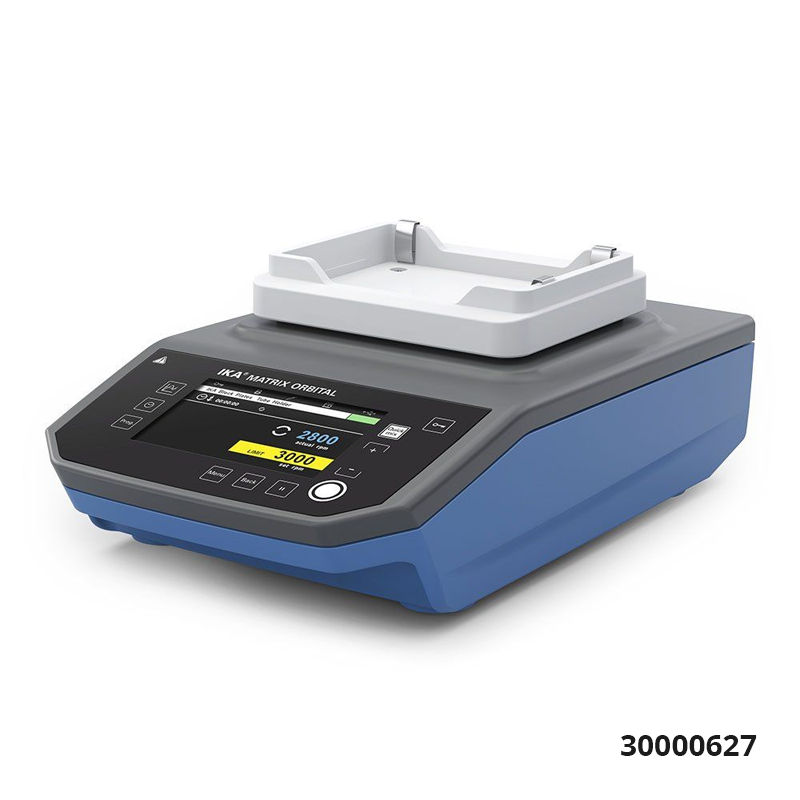

MATRIX Orbital

Cat. No.	H04-05-665
Model	30000627
---	---
Type of movement	Mixing
---	---
Speed Range	300~3000 rpm
---	---
Insert	Variable Insert
---	---
Max. Shaking Weight	0.3 kg
---	---
Operating Mode	Timer and Continuous Operation
---	---
Timer	1 sec ~ 6000 min
---	---
Size	w198×d318×h124 mm
---	---
Protection Class	IP21
---	---
Power	100~240 V, 50/60 Hz

MATRIX Orbital Delta

Cat. No.	H04-05-666	H04-05-667	H04-05-668	H04-05-669
Model	30000750	30000751	30000747	30000753
---	---	---	---	---
Type of movement	Mixing＆Heating
---	---	---	---	---
Speed Range	300~1500 rpm	300~2000 rpm		300~1500 rpm
---	---	---	---	---
Heating Range	RT +4~100℃
---	---	---	---	---
Insert	24×0.5 ml tube	24×1.5 ml tube	24×2.0 ml tube	Microtiter plate
---	---	---	---	---
Max. Shaking Weight	0.3 kg
---	---	---	---	---
Operating Mode	Timer and Continuous Operation
---	---	---	---	---
Timer	1 sec ~ 6000 min
---	---	---	---	---
Size	w216×d351×h147 mm	w216×d351×h149 mm	w216×d351×h158 mm
---	---	---	---	---
Protection Class	IP21
---	---	---	---	---
Power	100~240 V, 50/60 Hz

MATRIX Orbital Delta Plus

Cat. No.	H04-05-670	H04-05-671
Model	30000731	30000717
---	---	---
Type of movement	Mixing, Heating＆Cooling	Hating＆Cooling
---	---	---
Speed Range	300~3000 rpm	-
---	---	---
Heating Range	-15~100℃	-30~100℃
---	---	---
Heating Rate	Max. 5.5 °C/min	Max. 6 °C/min
---	---	---
Cooling Rate	Max. 2.5 °C/min	0.8 °C/min
---	---	---
Insert	Variable Insert
---	---	---
Max. Shaking Weight	0.3 kg
---	---	---
Operating Mode	Timer and Continuous Operation
---	---	---
Timer	1 sec ~ 6000 min
---	---	---
Size	w216×d351×h127 mm
---	---	---
Protection Class	IP21
---	---	---
Power	100~240 V, 50/60 Hz

Optional Accessories

========================

MATRIX Orbital

Cat. No	Model	Description
H04-05-684	30001157	Insert for 0.5 ml vial
H04-05-685	30001158	Insert for 1.5/ 2.0 ml vial
H04-05-686	30001159	Insert for 0.2 ml PCR vial

MATRIX Orbital Delta

Cat. No	Model	Description
H04-05-672	30001253	Cover for MATRIX Orbital
H04-05-673	30001244	Heatable Matrix ThermoCover

MATRIX Orbital Delta Plus

Cat. No	Model	Description
H04-05-674	30000853	Attachment for 96 PCR Plate
H04-05-675	30000857	Attachment for 384 PCR Plate
H04-05-676	30000840	Attachment for 24× 0.5 ml vial
H04-05-677	30000829	Attachment for 24× 1.5 ml vial
H04-05-678	30000834	Attachment for 24× 2.0 ml vial
H04-05-679	30000859	Attachment for 8× 5 ml vial
H04-05-680	30000844	Attachment for 24× 12 mm vial
H04-05-681	30000821	Attachment for 8× 15 ml vial
H04-05-682	30000863	Attachment for 4× 50 ml vial
H04-05-683	30000848	Attachment for 24×cryo vial
H04-05-687	30000849	Attachment for Microtiter Plate
