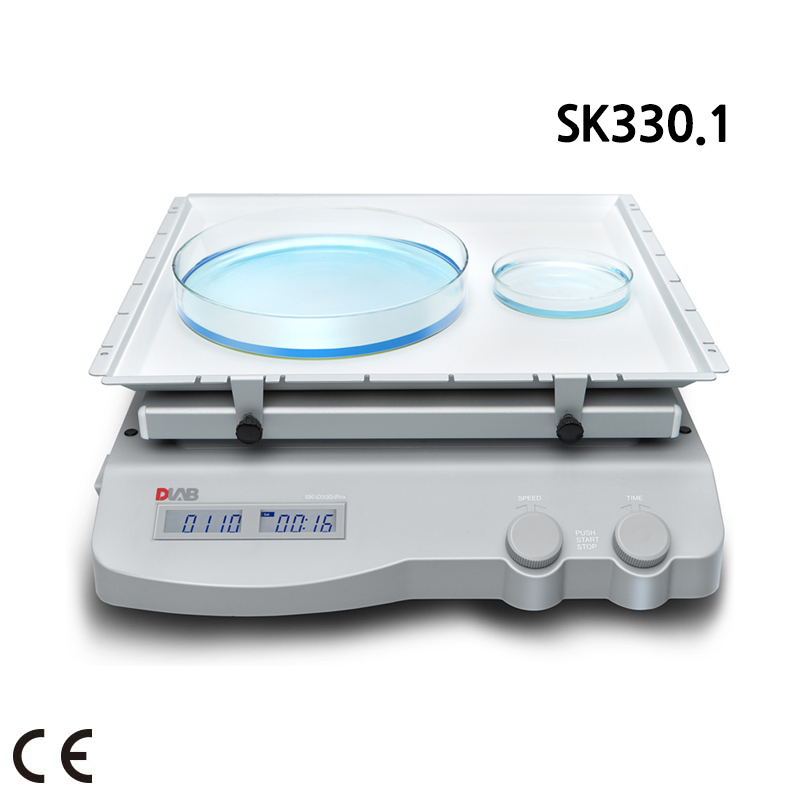

■ Universal Attachment 기본 포함 ( SK330.1 or SK180.1 )
■ Digital Speed & Time Control ■ 저소음 반복 균일 운동 ■ 다양한 Attachment로 거의 모든 모양의 Flask 등 용기 사용 가능 ■ Over Speed Detection & Protection ■ Dish Attachment 는 Non-slip Mat를 가지고 있음 ■ DLAB
Cat. No.
Model
Max. Road
Speed
S04-35-100
SKO330-PRO
7.5 kg (중형)
100 ~ 500 rpm
S04-35-200
SKO180-PRO
2.5 kg (소형)
100 ~ 800 rpm
Specification
Cat. No.
S04-35-100
S04-35-200
Model
SKO330-PRO
SKO180-PRO
Orbital Diameter
10 mm
4 mm
Max. Load(with Attachment)
7.5 Kg
2.5 Kg
Motor Rating Input / Output
28 / 15 W
Speed Range
100 ~ 500 rpm
100 ~ 800 rpm
Timer
Yes ( 1min ~ 19hr 59min or Continuous )
Overall Size
w370×d420×h100 mm
w300×d340×h100 mm
Permissble Temp. / Humidity
5 ~ 40℃ / 80%
Protection Class acc. to Din EN 60529
IP 21
전기 규격
100 ~ 240 V, 50/60 Hz
Optional Platform for SKO330
Cat. No.
Model
Description
S04-35-150
SK330.1
Universal Attachment, 300×300 mm
S04-35-154
SK330.2
Fixing Clip Attachment w/o Holder
S04-35-155
SK330.3
Lengthway Roller Attachment
S04-35-158
SK330.5
Dish Attachment, 300×285 mm
S04-35-162
SK330.9
Wire Spring Attachment
S04-35-186
H-703301
Spare Bar for SK330.1
S04-35-187
H-703302
Connect Stick for Dish Attachment
H-703302 : SKO180의 Dish Attachment의 2단 적재시에도 사용
Optional Platform for SKO180
Cat. No.
Model
Description
S04-35-250
SK180.1
Universal Attachment, 240×240 mm
S04-35-254
SK180.2
Fixing Clip Attachment, w/o Holder
S04-35-255
SK180.3
Lengthway Roller Attachment
S04-35-258
SK180.4
Dish Attachment, 240×215 mm
S04-35-259
SK180.5
Dish Attachment, 300×200 mm
S04-35-260
SK180.6
Dish Attachment, 280×280 mm
S04-35-262
SK180.9
Wire Spring Attachment
S04-35-286
H-701801
Spare Bar for SK180.1
Optional Flask Holder, Stainless Steel 재질
| Cat. No. | Model | Description |
| --- | --- | --- | | S04-35-266 | H-702210 | Flask Clip for 25 ml | | S04-35-270 | H-702220 | Flask Clip for 50 ml | | S04-35-274 | H-702230 | Flask Clip for 100 ml | | S04-35-278 | H-702240 | Flask Clip for 250 ml | | S04-35-282 | H-702250 | Flask Clip for 500 ml |
