Servicebio Electrophoresis Power Supply (Dual Module, Programmable)
독립 듀얼 출력과 프로그래머블 기능을 갖춘 전기영동 전원 공급장치. 일정 전압·전류 및 전압/전류 구배 모드 지원. 과전압·과전류 등 이상 경보 기능 탑재. 블루라이트 조명 등 외부기기용 12V 출력 제공. 다양한 생명과학 전기영동 실험에 적합.
✨AI 추천 연관 상품
AI가 분석한 이 상품과 연관된 추천 상품들을 확인해보세요
연관 상품을 찾고 있습니다...
Product Introduction
This electrophoresis power supply is a rectifier that converts alternating current (AC) into direct current (DC), providing controllable constant voltage and constant current outputs. It is designed to meet the needs of electrophoresis and other laboratory applications. Widely used in biology and medicine, it supports experiments such as nucleic acid gel electrophoresis, protein gel electrophoresis, and Western blot protein transfer.
Product Features

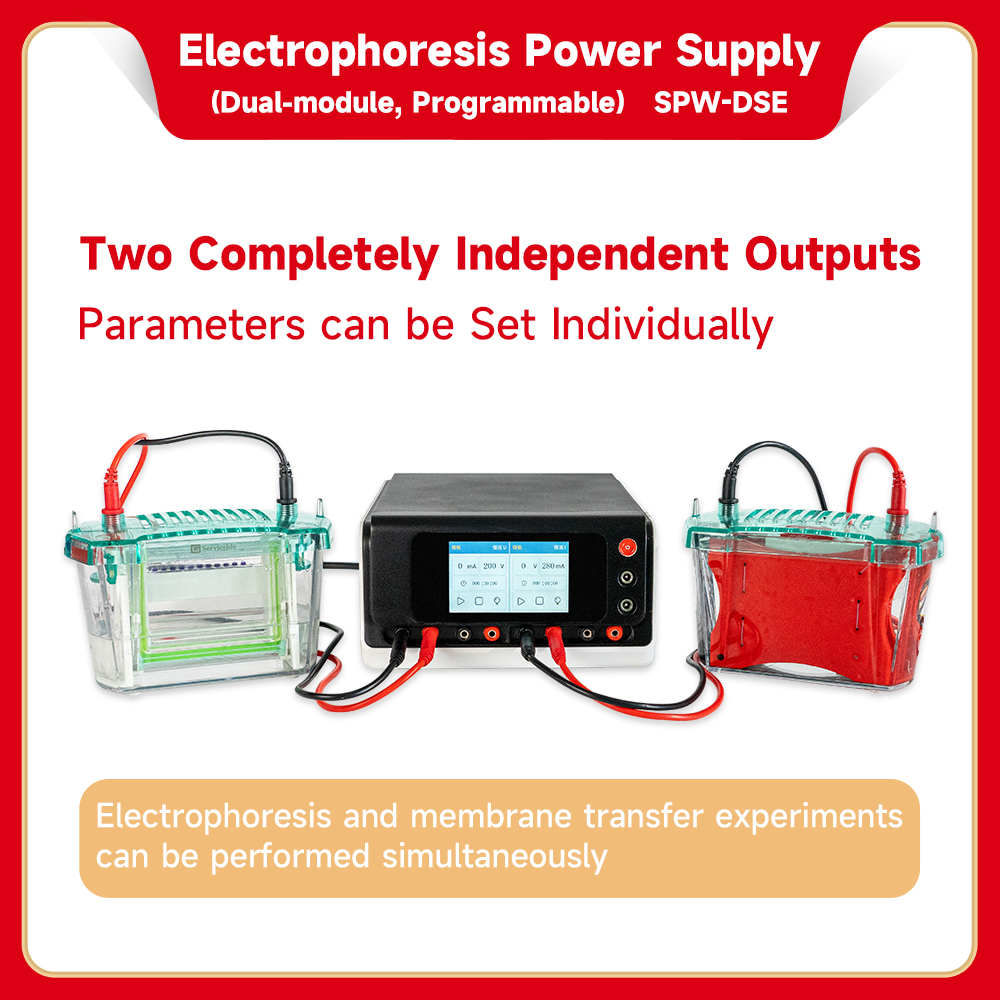

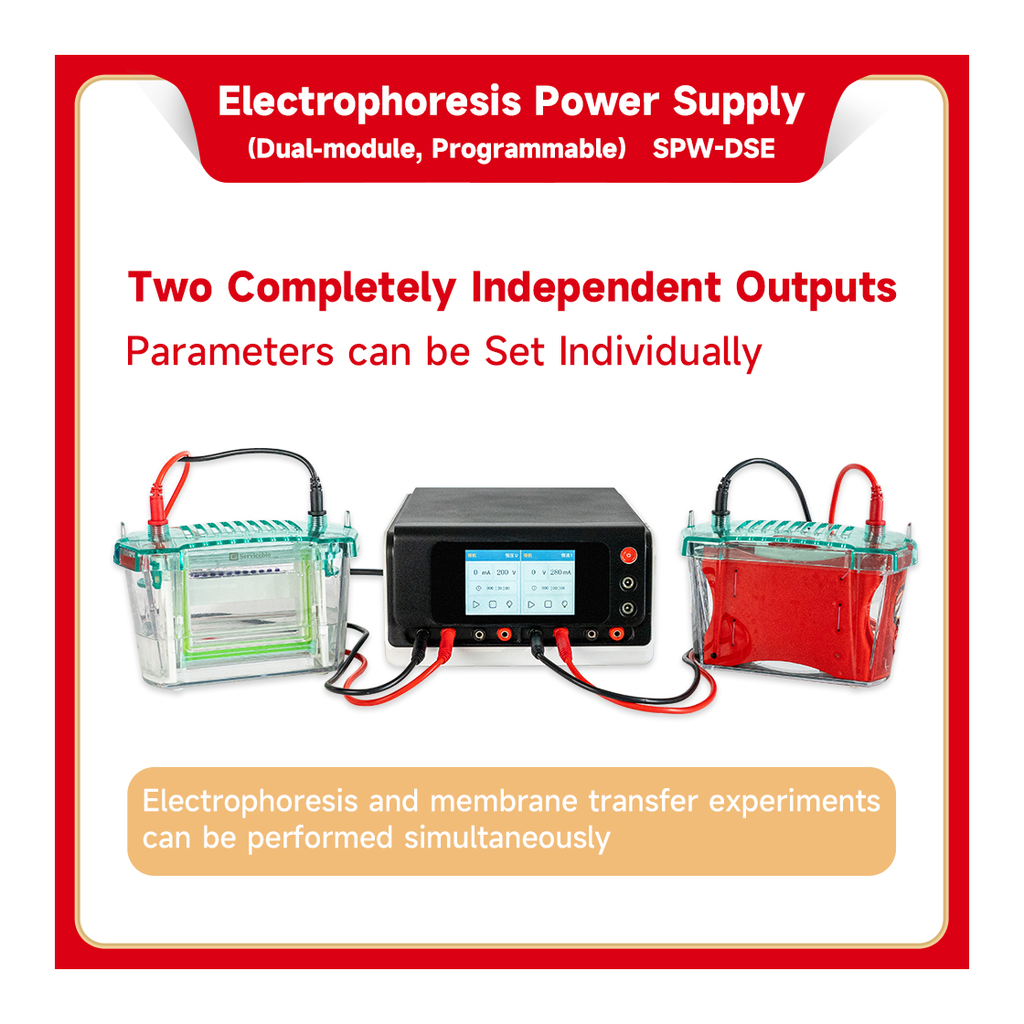

- Completely independent dual outputs, allowing separate parameter settings.
- Programmable function supporting four working modes: constant voltage, constant current, voltage gradient, and current gradient.
- Two additional 12V outputs suitable for blue light illuminators or gel loading lamps, controllable separately.
- Equipped with multiple abnormality alerts including overvoltage, overcurrent, overload, variable load, and no load.
Parameter Comparison
| Item | SPW-DSE | SPW-6S |
|---|---|---|
| Item Code | SPW-DSE | SPW-6S |
| Channel | Independent dual channels, total of 6 output ports | Single channel, total of 6 output ports |
| Terminal | Independent dual power supply outputs, controllable separately | Parallel output ports |
| Temperature Range | 4–35℃ | 4–40℃ |
| Parameters | 500V, 500mA, 250W | 600V, 600mA, 300W |
| Voltage Range | 6–500V | 6–600V |
| Current Range | 6mA–500mA | 6mA–600mA |
| Type | Constant voltage, constant current, gradient voltage, gradient current | Constant voltage, constant current, gradient voltage, gradient current |
| Timing Range | 0–99h 60min | 0–99h 60min |
| Pause/Resume Function | Yes | Yes |
| Programmable Method | Gradient voltage, gradient current, three steps | Gradient voltage, gradient current, three steps |
| Power-off Memory Function | Yes | Yes |
| Screen Size | 4 inches | 4 inches |
| Input Power | AC 180–240V / 110–120V, 50/60Hz | AC 180–240V / 110–120V, 50/60Hz |
| Size | 265 × 215 × 120 mm | 265 × 215 × 120 mm |
| Net Weight | 2.25 kg | 1.8 kg |
