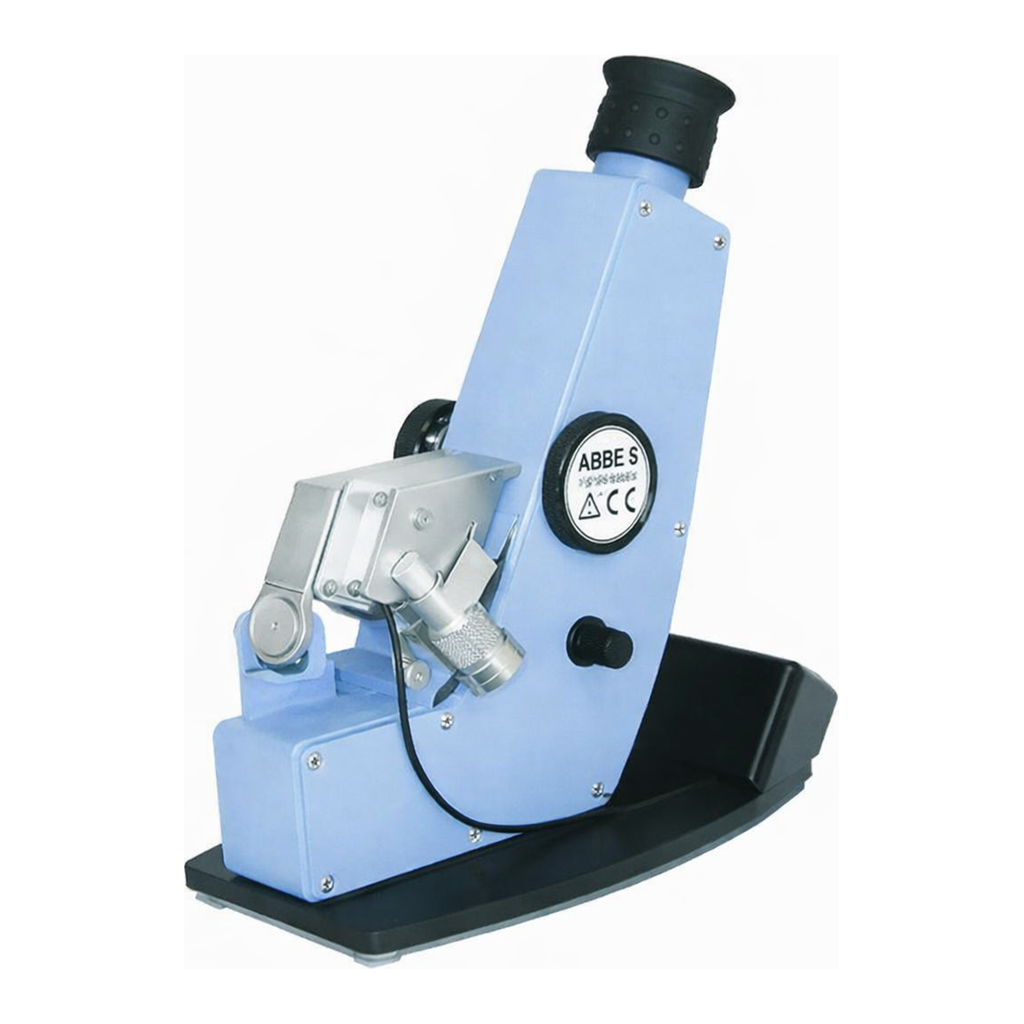

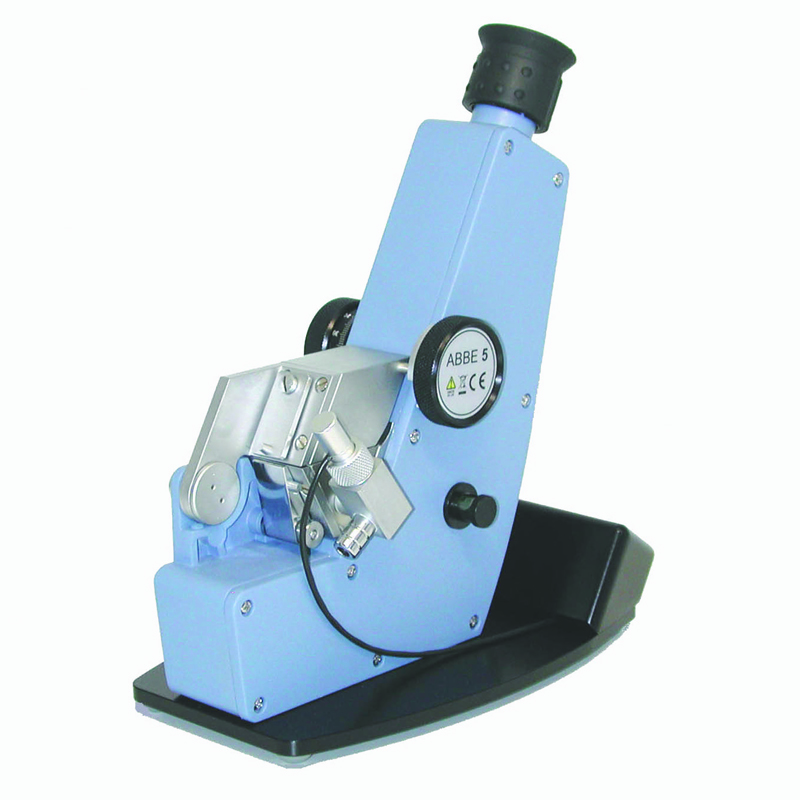

■ 액체나 고체의 굴절률을 측정할 수 있는 아베 굴절계
■ 특정 Light Source 없이 Daylight를 가지고 측정 가능함
■ Prism Box는 자켓 타입으로 2개의 Hose Connection이 부착되어 있음
■ Circulation Bath (Option)을 이용, 기기내의 온도를 일정하게 유지 시킬수 있음
■ 부착된 LCD 창을 통해 기기내의 온도를 항상 확인할 수 있음
■ Complete Set : Abbe Refractometer, Operation Instruction, Software,
Calibration Test Piece, Hard flight case, Contact Liquid for
Test Plate and solid Sample ( Monobromonapthalene)
■ Bellingham+Stanley
| Cat. No. |
Model |
굴절률 |
Brix (Sugar %) |
| R09-105-107 |
Abbe 5 |
1.30 ~ 1.70 |
0 ~ 95°Brix |
| Cat. No. |
R09-105-107 |
|
| Model |
Abbe 5 |
|
| --- |
--- |
--- |
| 측정항목 |
굴절률 (RI Range) |
Brix (Sugar %) |
| --- |
--- |
--- |
| Range |
1.30 ~ 1.70 RI |
0 ~ 95°Brix |
| --- |
--- |
--- |
| Resolution |
0.0005 |
0.25°Brix |
| --- |
--- |
--- |
| Operating Temp. |
5 ~ 70℃ |
|
| --- |
--- |
--- |
| Temp. Resolution |
0.1℃ |
|
| --- |
--- |
--- |
| Temp. Accuracy |
±1℃ |
|
| --- |
--- |
--- |
| Storage/Ambient Temp. |
5 ~ 40℃ |
|
| --- |
--- |
--- |
| Power Source |
1×LR44 Alkalin 1.5V Button Cell.
Approx. life 12-months continuous usage |
|
| --- |
--- |
--- |
| Size (Packed) |
w370×d270×h180 mm |
|
Optional Accessory
| Cat. No |
Model |
Description |
| R09-105-602 |
10-43 |
Contact liquid (Monobromonapthalene) |
| R09-105-607 |
10-61 |
Contact liquid (Methyl Iodide) |
| R09-105-613 |
72-200 |
Traceable calibration plate |
| R09-105-618 |
44-590 ① |
Optional, Spare prism box assembly |
| R09-105-624 |
44-520 ② |
Optional, Light sourse, bench mounted |
| B04-91-410 |
LC-LT208 |
Circulating water bath |
● Contact liquid : Test plate나 측정하고자 하는 샘플이 고체일때 사용
- Monobromonapthalene : 6 ml (RI up to 1.65)
- Methyl Iodide : 3 ml (RI up to 1.74)
● Test plate : Silica test plate : RI 1.45839 (±0.0001 RI at 20℃)
● Optional Light Sourse : Daylight가 충분하지 않을 경우에 사용. 백열등 5 W, 300 mm Goose Neck Size, 220 V
