■ Bellingham+Stanley Liquid Cell
Cat. No. |
Model |
Description |
R09-105-642 |
10-42 |
Volatile Liquid Cell |
R09-105-649 |
10-58 |
Divided Cell for Differential Measurements |

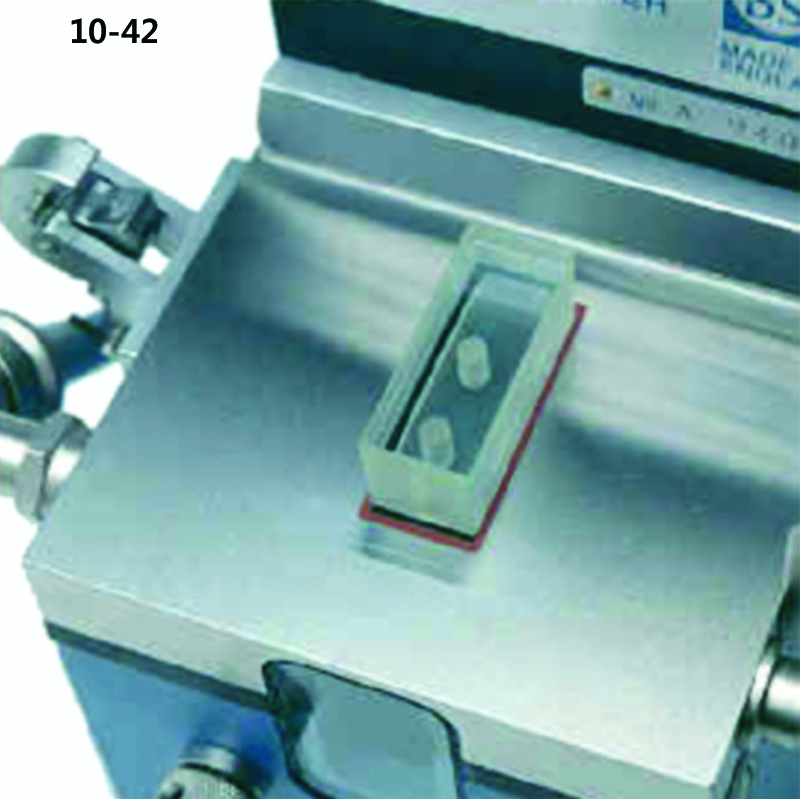

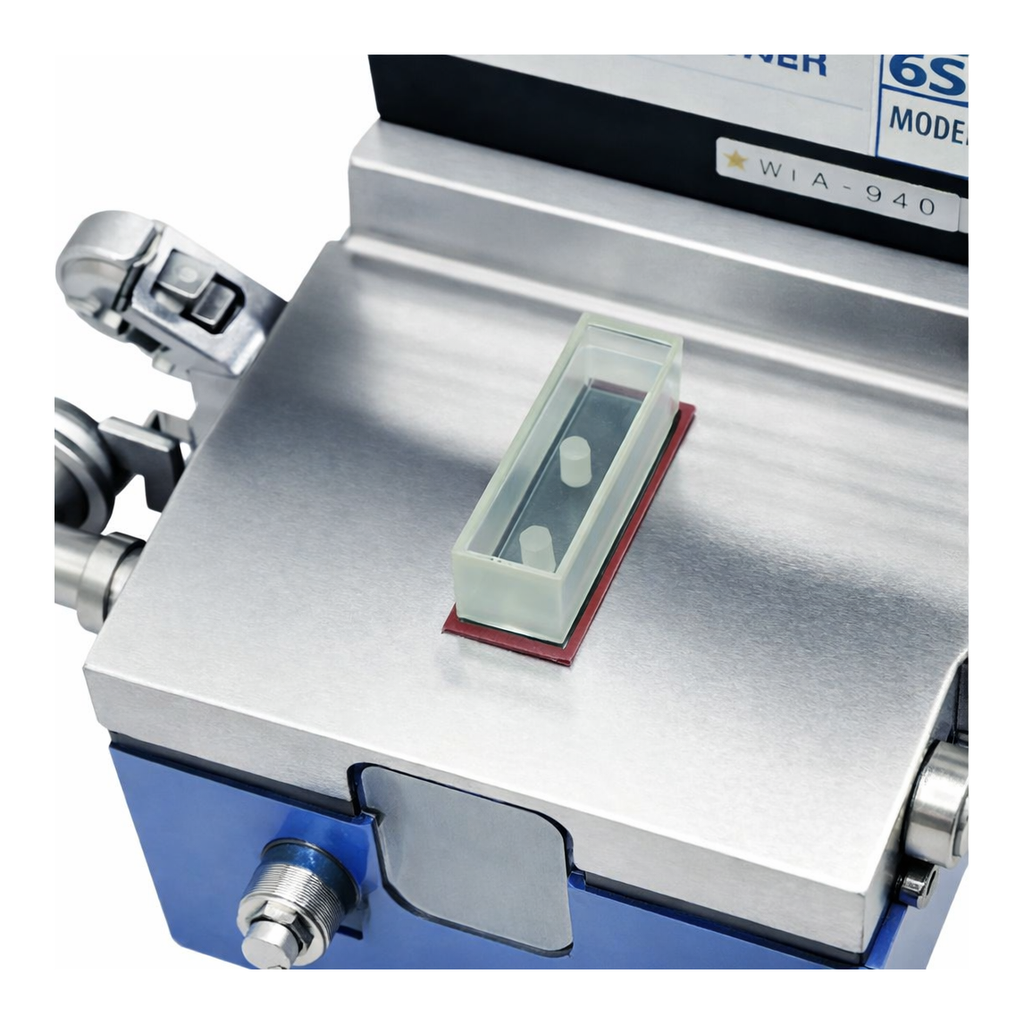

● Volatile Liquid Cell : 측정하고자 하는 샘플이 휘발성을 띨 때 쓰이는 홀더
● Divided Cell : 서로 다른 성질을 가지고 있는 샘플을 측정시 쓰이는 홀더
Contact Liquid for Test Plate and Solid Sample
Cat. No. |
Model |
Description |
R09-105-602 |
10-43 |
Contact Liquid (Monobromonapthalene) |
R09-105-607 |
10-61 |
Contact Liquid (Methyl Iodide) |
R09-105-663 |
10-62 |
Contact Liquid (SMI) |
● Test plate나 측정하고자 하는 샘플이 고체일때 사용
● Monobromonapthalene : 6 ml (RI up to 1.65)
샘플이 합성 수지일 경우 Glass substrate (10-59)와 같이 사용● Methyl Iodide : 3 ml (RI up to 1.74)
● SMI : 10 ml (RI up to 1.79) (Test plate는 사용못함)
Eyepiece
Cat. No. |
Model |
Description |
R09-105-668 |
10-49 |
Polarising Eyepiece |
● Polarising Filter : 측정하고자 하는 샘플이 복굴절을 같는 샘플일 경우 (10-49)
기타 Accessory
Cat. No. |
Model |
Description |
R09-105-655 |
10-59 |
Glass Substrate (Use With 10-43) |
R09-105-688 |
10-46 |
Silica Test Plate, RI : 1.45839 |
R09-105-690 |
10-44 |
Glass Test Plate, RI : 1.5222 |
R09-105-678 |
10-41 |
Funnel Flow Through Cell (Repetetive) |
B04-91-410 |
LC-LT208 |
Circulating Water Bath |
● Glass Substrate : Sample이 합성수지일 경우 사용하는 것으로 (10-43) Contact Liquid와 같이 사용함
● Silica Test plate : Calibration test piece (RI : 1.45839)
● Glass Test plate : Calibration test piece (RI : 1.5222)
● Macro bore funnel flow cell
: A sample can be poured onto the prism from carton or can
