■ Belt 구동 방식의 진공펌프
■ 저 RPM 구동으로 소음이 적고, 내구성이 뛰어남

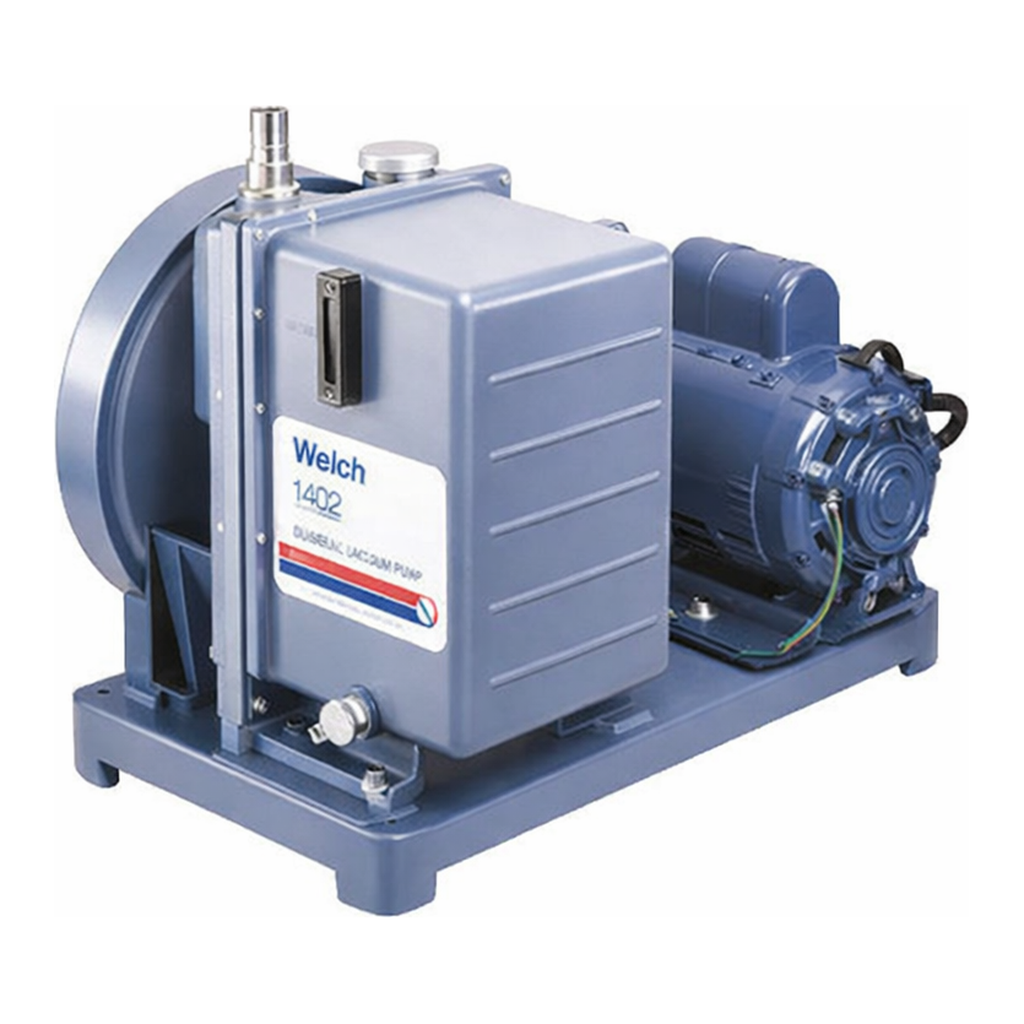

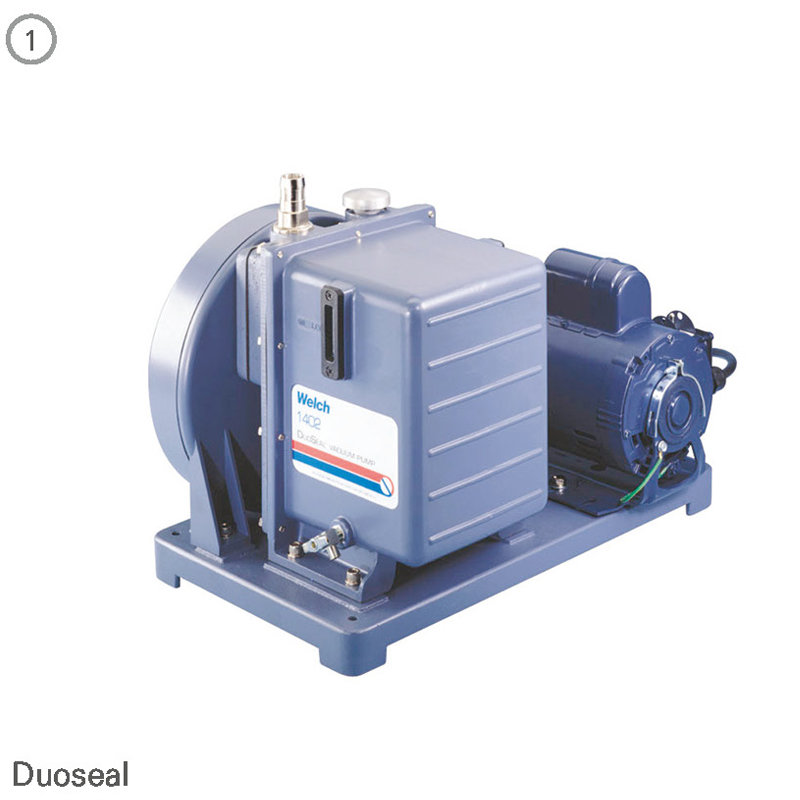

■ Welch-Ilmvac Two Stage Vacuum Pump, Duoseal® ①
| Cat. No |
Model |
유량 |
최대진공도 |
| P06-750-402 |
1402C-01 |
160 L/min |
1 X 10-4Torr |
For Corrosive Gases, Chemstar® ②
| Cat. No |
Model |
유량 |
최대진공도 |
| P06-750-406 |
1402N-60 |
160 L/min |
1 X 10-4 Torr |
| P06-750-410 |
1376N-60 |
300 L/min |
1 X 10-4 Torr |
● HCl, O3, H2SO4, HBr, HOAc, SOx, Br2, F3CCO2H, H2S, Cl2, CH2O, HNO3, etc...
● 케미칼 전용펌프로 오일통이 테프론 코팅되어져 있음
| Cat. No. |
P06-750-402 |
P06-750-406 |
P06-750-410 |
| Model |
1402C-01 |
1402N-60 |
1376N-60 |
| --- |
--- |
--- |
--- |
| Pumping Speed |
160 L/min |
|
300 L/min |
| --- |
--- |
--- |
--- |
| Ultimate Pressure |
10-4 Torr(0.00013 mbar) |
|
|
| --- |
--- |
--- |
--- |
| Pump RPM |
525 rpm |
|
|
| --- |
--- |
--- |
--- |
| Hose Connetor |
튜빙 ID 16mm |
NW25 |
|
| --- |
--- |
--- |
--- |
| Motor Power |
370W |
|
750W |
| --- |
--- |
--- |
--- |
| Weight |
60kg |
60.5kg |
82.3kg |
| --- |
--- |
--- |
--- |
| Size(w X d X h, mm) |
300 X 510 X 600 |
350 X 490 X 390 |
310 X 490 X 390 |
| --- |
--- |
--- |
--- |
| Voltage |
230V, 60Hz, 1Ph |
|
|
Accessory
| Cat. No |
Model |
Description |
| P06-750-991 |
1420K-25 |
Acid Neutralization Trap |
| P06-750-993 |
1416E-02 |
Oil Mist Trap |
| P06-750-995 |
8995G-11 |
Gold Vacuum Pump Oil 1L |
| P06-750-997 |
8995G-15 |
Gold Vacuum Pump Oil 4L |
● 1420K-25 : 다량의 알칼리 물질이 함유되어 있어 강산의 유체일 경우 펌프의 수명을 늘려줌
