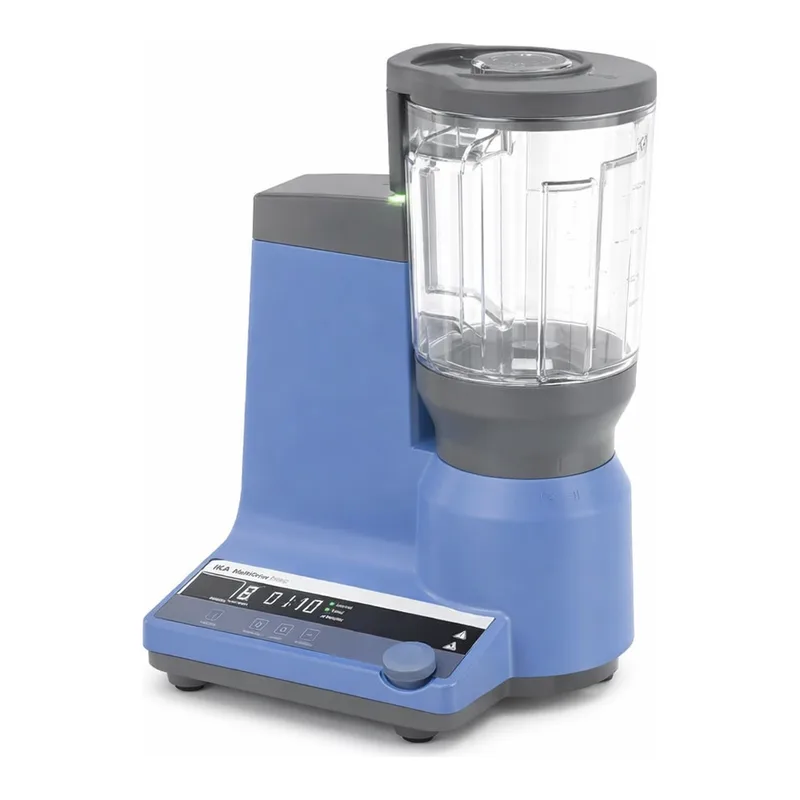

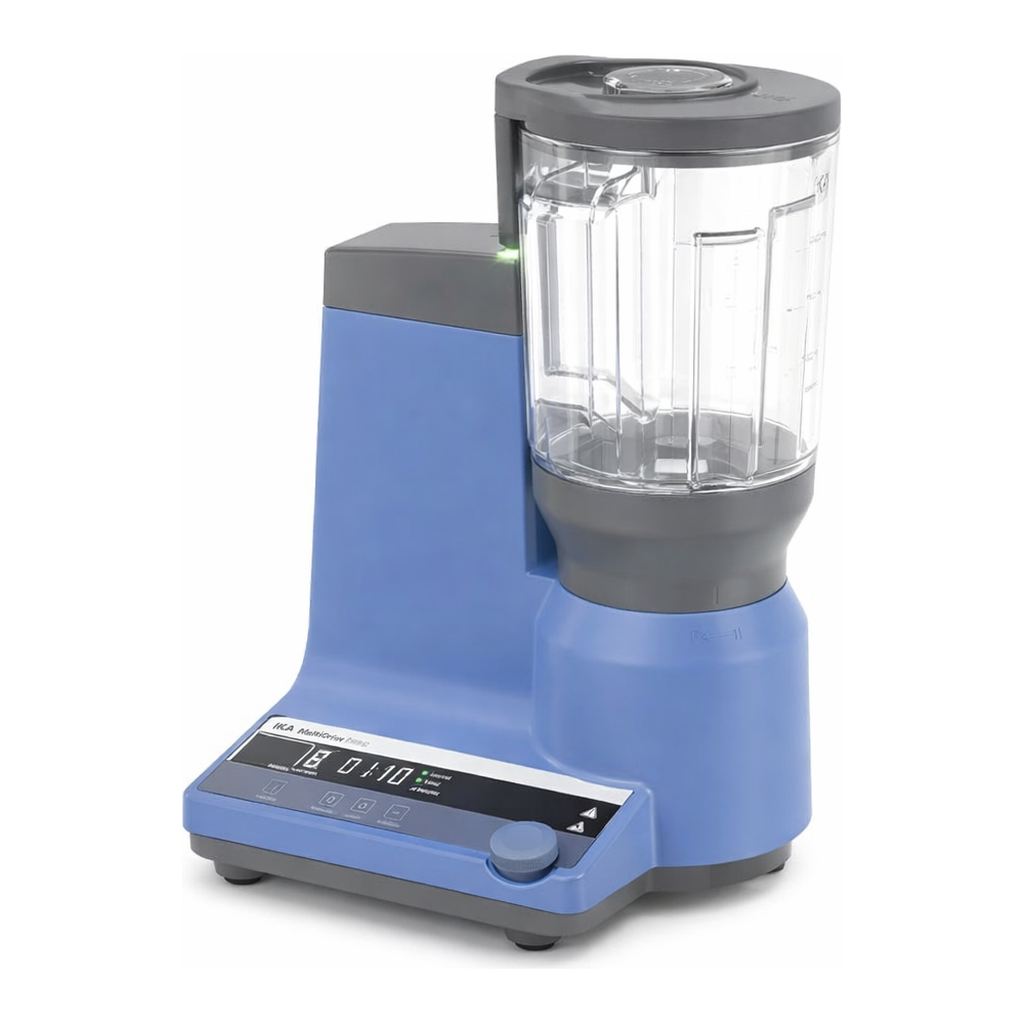

IKA Mixing and Grinding Mill 다용도 밀, Multidrive Basic or Control
| 상품 옵션 정보 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | CAS 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| M03-05-125 | - | M03-05-125 Mixing and Grinding Mill/Multidrive/Control, 1/EA | 재고문의 | ea | 10,730,000원 | - | 11,803,000원 | |
| M03-05-120 | - | M03-05-120 Mixing and Grinding Mill/Multidrive/Basic, 1/EA | 재고문의 | ea | 8,780,000원 | - | 9,658,000원 | |
| M03-05-142 | - | M03-05-142 DI2000T/Vessel//w Dispersing Element, 1/EA | 재고문의 | ea | 2,430,000원 | - | 2,673,000원 | |
| M03-05-132 | - | M03-05-132 BL2000T/Vessel//w Cutter, Temperature Sensor, 1/EA | 재고문의 | ea | 1,320,000원 | - | 1,452,000원 | |
| M03-05-130 | - | M03-05-130 BL2000/Vessel//w Cutter, 1/EA | 재고문의 | ea | 1,070,000원 | - | 1,177,000원 | |
다른 상품 둘러보기
■ Hard, Soft or Fibrous Sample용
■ Mixing & Grinding Vessel은 별도 구매 해야함
■ 다양한 용기를 사용 광범위한 범위의 분쇄 작업 용 (Coarse and Fine Crushing)
■ Milling Chamber MI250 MultiDrive basic으로 IKA M 20 Mill을 대체할 수 있음
■ Interval Operation, Integrated Cooling Systemin Cooling Vessel
■ IKA
| Cat. No | Model | Type | Description |
|---|---|---|---|

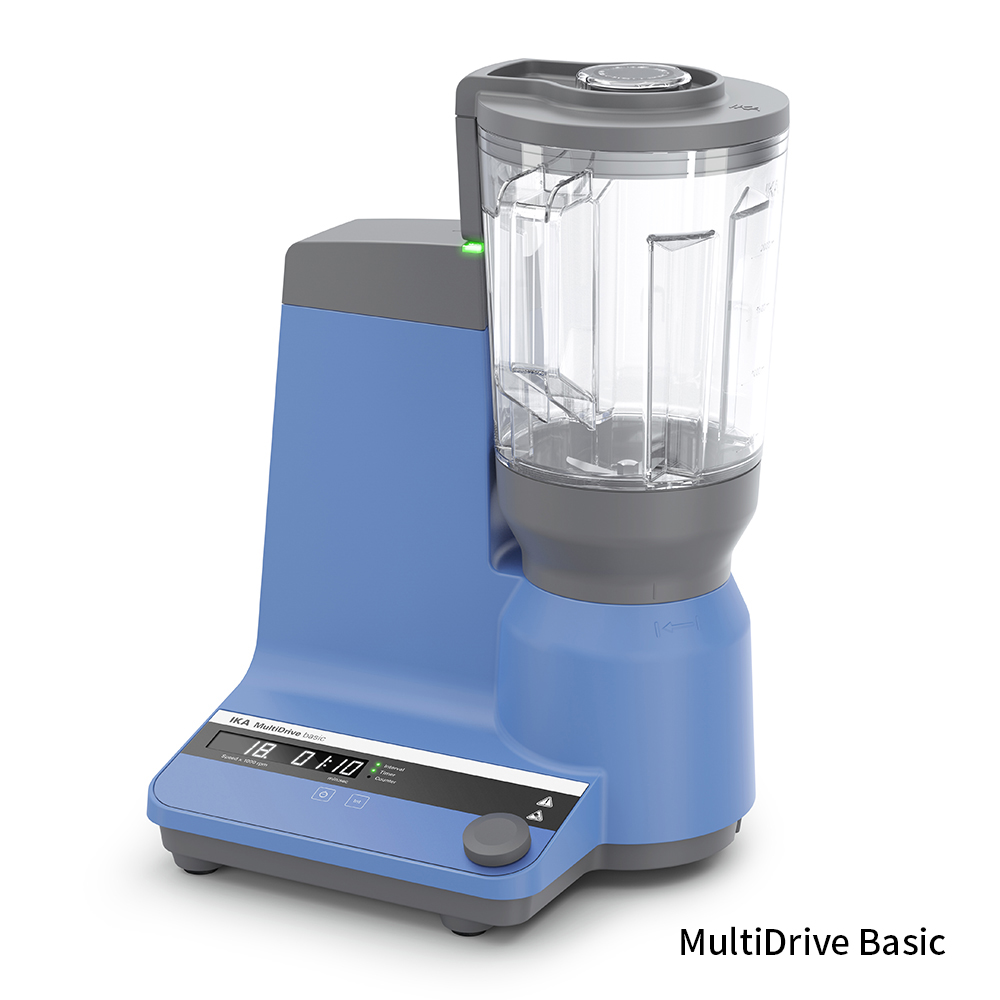

| M03-05-120 | 25002638 | MultiDrive basic | Cutting/Impact |
| M03-05-125 | 25002643 | MultiDrive control | Cutting/Impact/온도,무게측정 |
| Type | MultiDrive basic | MultiDrive control |
|---|---|---|
| Operating Principle | Cutting / Impact / Blending / Dispersing | |
| Feed Hardness Max. | 5 Mohs (9 Mohs with Hard Metal Knife) | |
| Feed Grain Size Max. | BL: 50 mm, MI: 7 mm | BL: 50 mm, MI: 7 mm, MT/BT: 10 mm |
| Useable Volume Max. | BL: 2000 ml, MI: 250 ml / 400 ml | BL/DI: 2000 ml, MI: 250 ml/ 400 ml MT: 150 ml, BT: 250 ml |
| Material of Grinding Vessels | BL: PCTG, MI: Stainless Steel | BL/DI/MT/BT: PCTG, MI: Stainless Steel |
| Material Beater / Cutter | BL/MI: Stainless Steel, MI: Hard Metal | BL/DI/MT/BT: Stainless Steel MI: Hard metal |
| Speed | 3000 - 20000 rpm | |
| Setting of Operation Time | 1 sec - 5 min (Off Time 10 min) | 5 sec - 30 min (Off Time 10 min, 용기에 따라 다름) |
| Timer / Counter | Yes | |
| Intermittent operation | Yes | |
| Programmable | No | Yes |
| Cooling Water | Connection by Milling Chamber | |
| Milling with Dry Ice | by Milling Chamber | |
| Temperature measurement | No | Yes (only Vessel with "T") |
| Vessel recognition | No | Yes (only Vessel with "T") |
| Weighing function | No | Yes |
| Motor Rating (in/output) | 1000 / 800 W ( Brushless Motor ) | |
| Display | LED | TFT |
| Interface | USB | |
| Dimension | w300×d250×h350mm, 8.5kg | |
| Permissible Ambient Temperature | 5 - 40 ℃ / IP31 | |
| Voltage | 220-240V, 50/60 Hz | |
* BL : Blender Vessel, MI : Milling Chamber, DI : Dispering Vessel, MT : Milling Tube, BT : Blending Tube
Optional Universal Blender
| Cat. No | Model | Type | 용량 | Size,w×d×h | 최대입자 |
|---|---|---|---|---|---|
| M03-05-130 | 25003961 | BL2000 | 2L | 180×220×280mm | 20mm |
| M03-05-132 | 25003962 | BL2000T | BL2000 with Temp Sensor, for Control Type | ||
| M03-05-166 | 20112097 | MI250-S | 250ml | 160×160×180mm | 7mm |
| M03-05-170 | 20112099 | Mi400-S | 400ml | 160×160×180mm | 7mm |
| M03-05-168 | 20112098 | MI250T-S | MI250-S with Temp Sensor, for Control Type | ||
| M03-05-172 | 20112100 | MI400T-S | MI400-S with Temp Sensor, for Control Type | ||
| M03-05-142 | 25003960 | DI2000T | 2L | 180×220×280mm | 20mm |
| M03-05-158 | 20023173 | MT150.5 | 150ml | 90×90×115mm | 10mm |
| M03-05-160 | 20023174 | BT250.5 | 250ml | 90×90×160mm | 10mm |
| Type | Application |
|---|---|
| BL2000 | with Mixing Knife, Wet Grinding / Meat, Sausage, Soy Beans, Silage, Vegetable |
| MI250 | with Beater & Cooling, Dry Grinding / Woods, Pet food, Frozen Product, Plastic |
| MI400 | with Beater & Cooling, Dry Grinding / Woods, Pet food, Frozen Product, Plastic |
| DI2000T | with Rotor-stator & Temp. Sensor, for Dispersing Emulsion, Yoghurt, Extracts |
