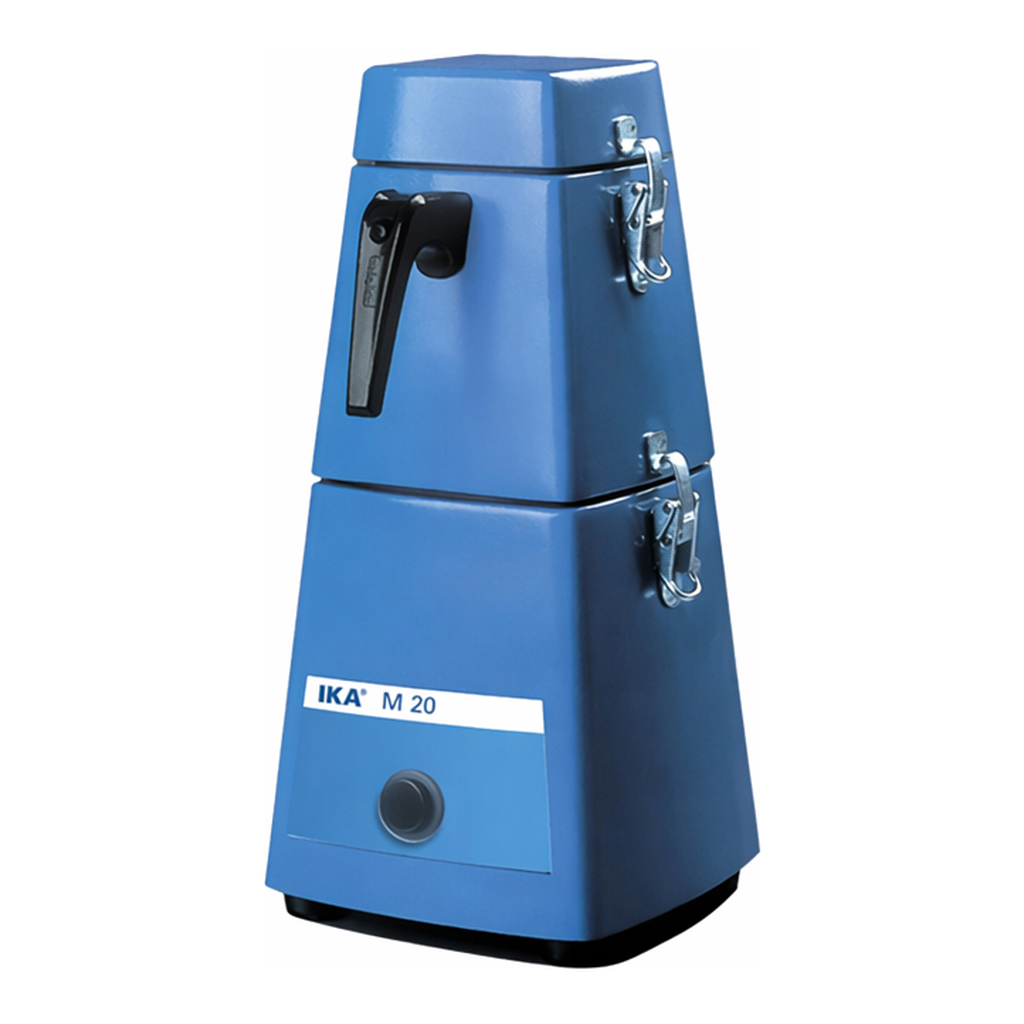

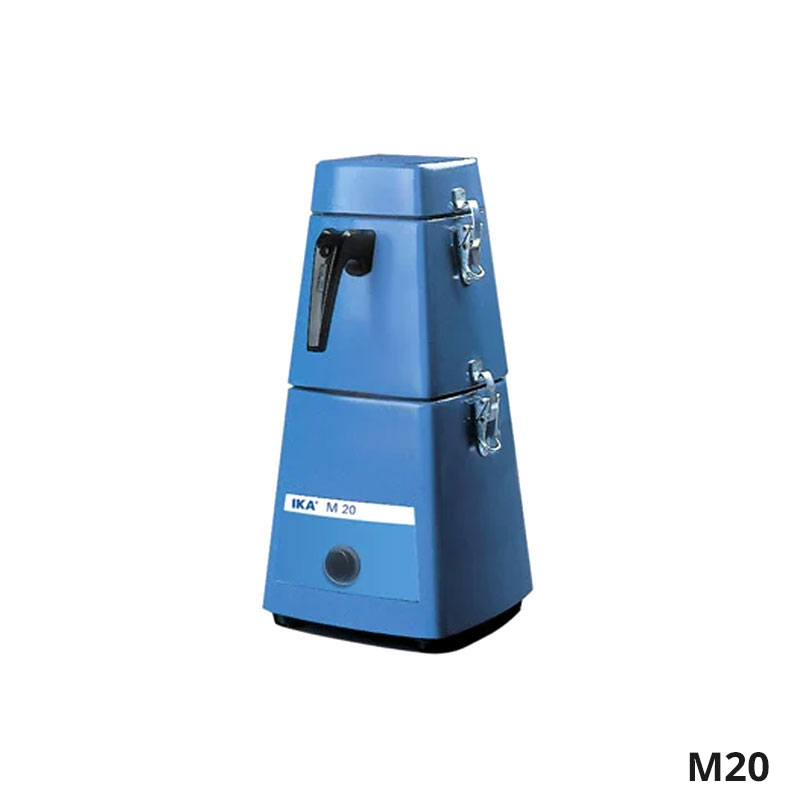

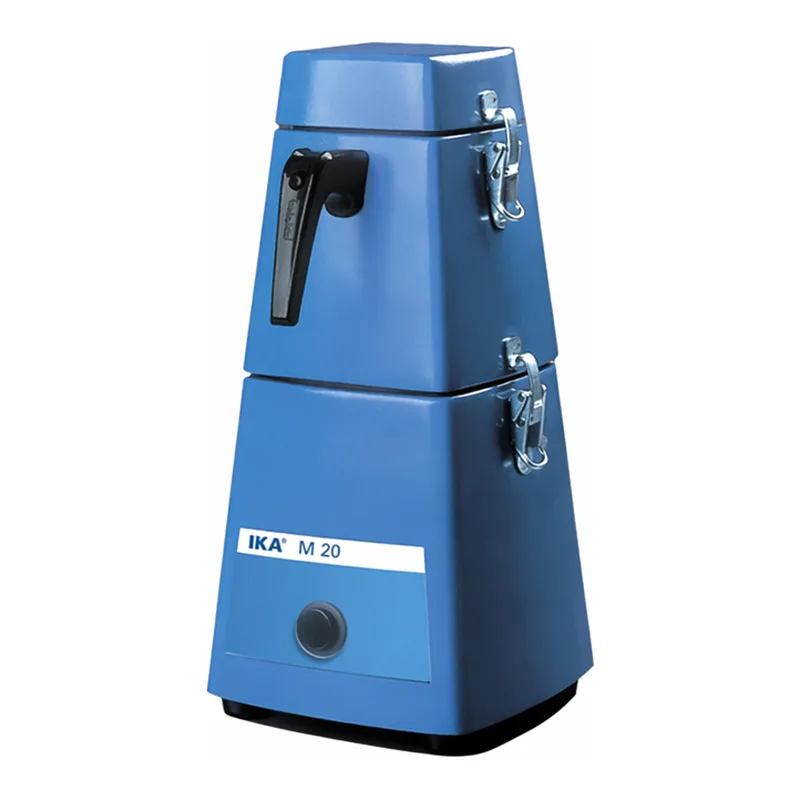

■ 구성 : M20 Mill, M21 Cutter, M20.1 Chamber
■ Batch mill suitable for dry grinding of hard and brittle substances
■ 단단하고 깨지기 쉬운 (Hard and Brittle) 소량 시료의 Dry Grinding용
■ 건조한 야채 / 곡물, 토양, 냉동 육류 및 Plastic Granulates용으로 적함함
■ Spare Chamber M 20.1 (Option)을 사용하여 교대로 작업이 가능함
■ Meat, Tissue, Plant, Elastomer등을 분쇄하기에 앞서 액체 질소를 직접 넣어
동결이 가능함
■ Double Walled Grinding Chamber : 냉각수를 이용하여 온도를 낮출 수 있음
■ Protection class acc. to DIN EN 60529 (IP21)
■ IKA
| Cat. No |
Model |
Type |
용량 |
R.P.M |
| M03-05-071 |
1603600 |
M20 |
250 ml |
20,000 (fixed) |
| --- |
--- |
--- |
--- |
--- |
| Cat. No. |
M03-05-071 |
| Type |
M20 |
| --- |
--- |
| Motor Rating (in/output) |
440 / 225 W |
| Speed |
20,000 rpm (fixed) |
| Useful Volume |
250 ml |
| Duty Cycle On/Off |
7 min / 10 min |
| Overload Protection |
Current Limitation |
| Circumferential Speed |
72 m/s |
| Max. Granularity of Task |
Max. 5 - 7 mm |
| Material Grinding Chamber |
Stainless Steel (AISI 304) |
| Material Cover |
Stainless Steel (AISI 304) |
| Dimension / Weight |
w170× d170× h350 mm / 6.6 kg |
| Power |
230V, 50/60 Hz |
Optional Accessory
| Cat. No |
Model |
Type |
Description |
| M03-05-542 |
0328200 |
M 21 |
Spare cutter, stainless steel ① |
| M03-05-550 |
0521800 |
M 22 |
Hard metal cutter ② |
| M03-05-555 |
1443400 |
M 23 |
Star-shaped cutter ③ |
| M03-05-559 |
8006200 |
M 20.1 |
Grinding chamber ④ |
- ① M 21 : Spare Cutter (경도 5 이하인 Brittle용)
② M 22 : Hard Metal Cutter (경도 9이하인 고강도 시료용임)
③ M 23 : Star-Shaped Cutter (섬유질 시료나 Plastic 시료용임)
④ M 20.1 : Grinding Chamber
