Masterflex L/S Standard Digital Pump Systems, Avantor
| 상품 옵션 정보 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | CAS 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| MFLX77919-25 | - | MasterFlex MFLX77919-25 PUMP MFLEX L/S 8CH/4RL EUROPEAN 230V ea | 재고문의 | ea | 0원 | - | 0원 | |
| MFLX77919-35 | - | MasterFlex MFLX77919-35 PUMP MFLEX L/S 4CH/8RL EUROPEAN 230V ea | 재고문의 | ea | 0원 | - | 0원 | |
다른 상품 둘러보기

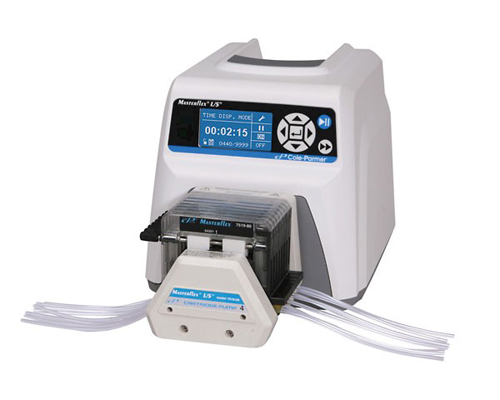

L/S® Cartridge Pump Systems
Multiple-channel low-flow transfer and perfusion!
Description
· Cartridges accept multiple tubing sizes for wide flow range
· Change tubing in one channel without disturbing others—cartridges snap in and out for tubing changes
· Finely adjust occlusion to increase accuracy
· Use only one cartridge, or load to capacity
· Digital dispensing drive features maintenance-free brushless motor
· Program dispensing parameters, including delay interval, for automated dispensing
· Four-channel, eight-roller pump offers lowest pulsation for better accuracy
· 1⁄10-hp continuous-duty brushless drive
· Tach feedback for ±0.1% drive speed control
· Remote control via DB25 female connector on drive
· IP33 rated, stackable ABS housing
· Membrane keypad with lockout
· See page 714 for complete drive specifications
| Flow range (mL/min) |
Pump head included |
Tubing included |
Tubing sizes accepted |
Drive included |
Drive speed range (rpm) |
Drive IP rating |
Power (50/60 Hz) |
|
| L/S eight-channel four-roller cartridge pump system | ||||||||
| 0.0034 to 18 |
L/S Cartridge head 07519-06 with eight small cartridges 07519-80 |
Tygon E-LFL microbore tube set, 1.42-mm ID 06447-34 ; pk of 12 |
Microbore tube sets; L/S 13, L/S 14 |
07522-30 | 0.02 to 100 | IP33 | 90 to 130 VAC, 2.2 A; 190 to 260 VAC, 1.1 A |
|
| L/S reduced-pulsation four-channel eight-roller cartridge pump system | ||||||||
| 0.0024 to 12 |
L/S Cartridge head 07519-20 with four small cartridges 07519-85 |
Tygon E-LFL microbore tube set, 1.42-mm ID 06447-34; pk of 12 |
Microbore tube sets; L/S 13, L/S 14 |
07522-30 | 0.02 to 100 | IP33 | 90 to 130 VAC, 2.2 A; 190 to 260 V AC, 1.1 A |
Additional Microbore Two-Stop Pump Tube Sets
| Pump tubing | 0.89 mm ID | 1.42 mm ID | 2.06 mm ID | 2.79 mm ID | |
| Flow rate per channel (mL/min) |
Cartridge head 07519-06 | 0.0015 to 7.4 | 0.0034 to 18 | 0.0074 to 37 | 0.0126 to 63 |
| Cartridge head 07519-20 | 0.0010 to 5.2 | 0.0024 to 12 | 0.0044 to 22 | 0.0068 to 34 | |
| Platinum-cured silicone |
 |
GY-06421-26 | GY-06421-34 | GY-06421-42 | GY-06421-48 |
| Santoprene® |  |
GY-06431-26 | GY-06431-34 | GY-06431-42 | GY-06431-48 |
| Tygon® E-LFL |  |
GY-06447-26 | GY-06447-34 | GY-06447-42 | GY-06447-48 |
| Viton® |  |
GY-96428-26 | GY-96428-34 | GY-96428-42 | GY-96428-48 |
