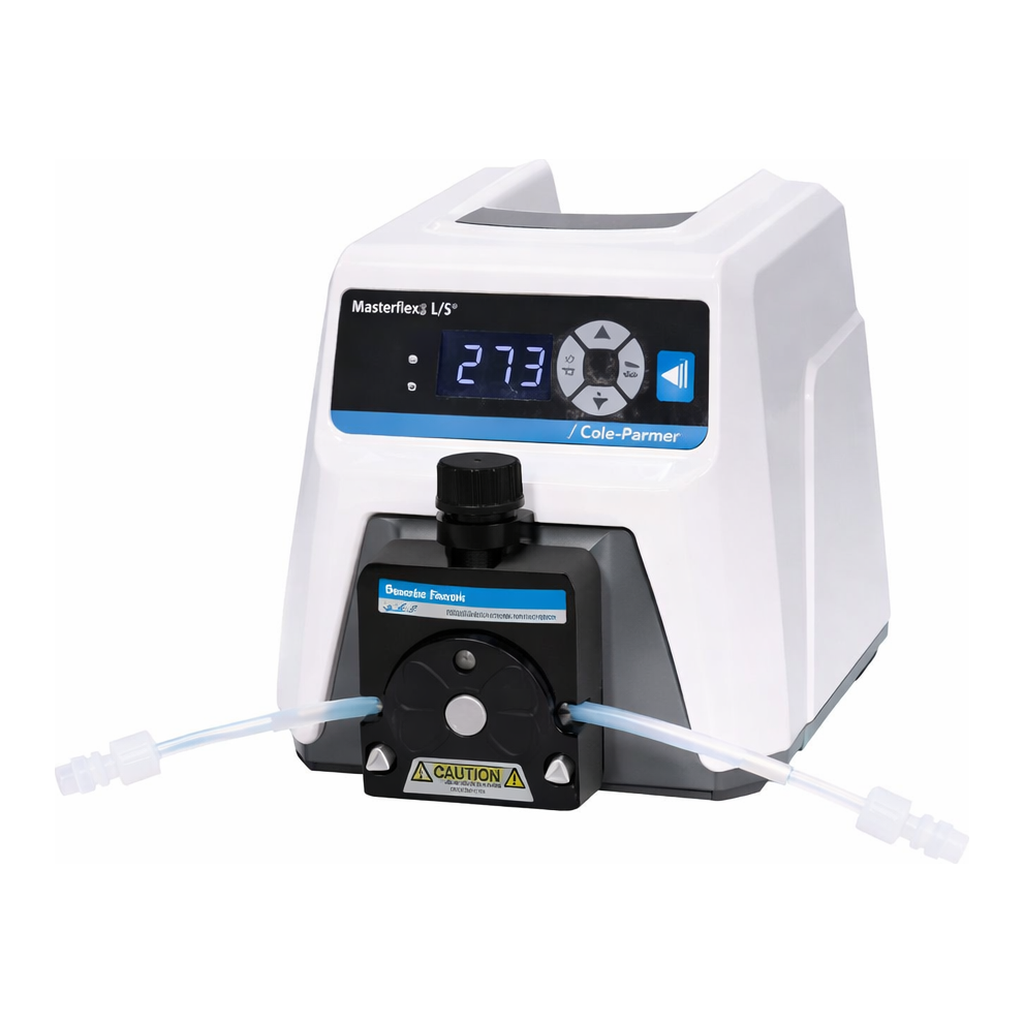

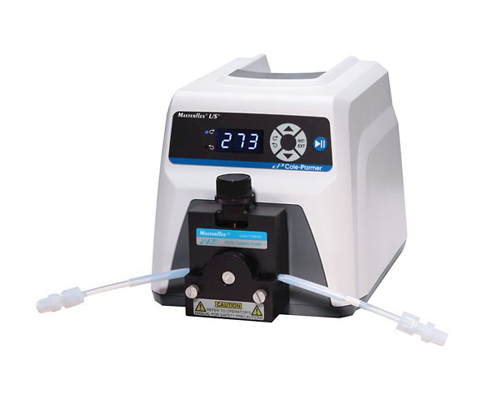

L/S® PTFE-Tubing Pump System
Worry-free transfer of aggressive organic solvents
**
Description**
· Limited chemical exposure with PTFE tubing as only wetted part
· Higher pressure pumping, up to 100 psi
· Adjustable occlusion—tighten for higher pressure, loosen for longer tubing life
· Contamination-free transfer of liquids containing small particulates
Complete system includes: L/S® PTFE-tubing pump head 77390-00, PTFE-tubing set 77390-60, and L/S® variable-speed drive 07528-20 (3 to 300 rpm). System also includes two 1⁄4` NPT(M) pipe adapters.
| Maximum continuous pressure | 100 psi (6.9 bar) |
| Maximum suction lift | 8 ft (2.4 m) |
| Drive requirements | minimum 1⁄10 hp |
| Average tubing life (100 rpm, 0 psi) | 500 hours |
| Body material | anodized aluminum, acetal |
| Roller material | stainless steel |
Products
| Flow range at 3 to 300 rpm | rpm | Rollers | Drive dimensions(L x W x H) | Power (50/60 Hz) | Catalog number | |
| 4-mm OD tubing | 6-mm OD tubing | |||||
| 0.18 to 17 mL/min | 0.75 to 65 mL/min | 3 to 300 | 6 | 10x 8.5 x 8.5` (25.4 x 21.6 x 21.6 cm) |
90 to 260 VAC | GY-77912-10 |
Tubing Sets
PTFE-Tubing Sets include two 15` (38-cm) lengths and cannot be substituted with ordinary PTFE tubing.
GY-77390-50 PTFE-tubing. 2-mm ID, 4-mm OD. Set of 2
GY-77390-60 PTFE-tubing. 4-mm ID, 6-mm OD. Set of 2
Tubing Set Accessories
For 4-mm OD PTFE-tubing sets:
GY-31321-61 Straight connector,40 psi (9.2 bar) max
GY-06605-53 PTFE extension tubing,4-mm OD. Pack of 25 ft (7.6 m)
For 6-mm OD PTFE-tubing sets:
GY-31321-64 Straight connector,135 psi (9.2 bar) max
GY-06605-54 PTFE extension tubing,6-mm OD. Pack of 25 ft (7.6 m)
🏷️Masterflex 상품 둘러보기
동일 브랜드의 다른 상품들을 확인해보세요
Masterflex
Masterflex L/S Spooled Pump Tubing, PharMed BPT, Avantor
4,260,100원
Masterflex
Masterflex L/S Standard Digital Pump Systems, Avantor
Masterflex
Masterflex L/S Standard Digital PTFE-Tubing Pump System, Avantor
5,183,900원
Masterflex

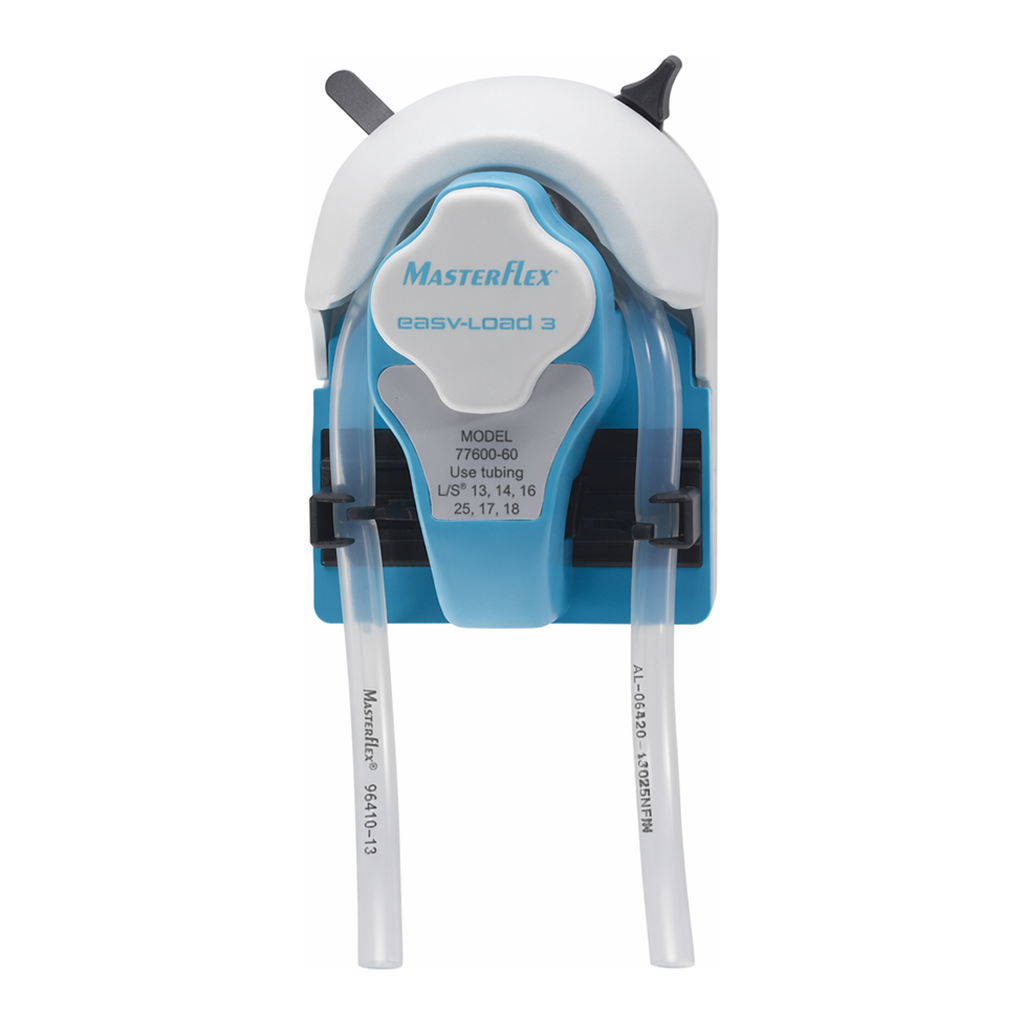

Masterflex L/S Easy-Load 3 Pump Heads for High-Performance Precision Tubing, Avantor
691,200원
Masterflex

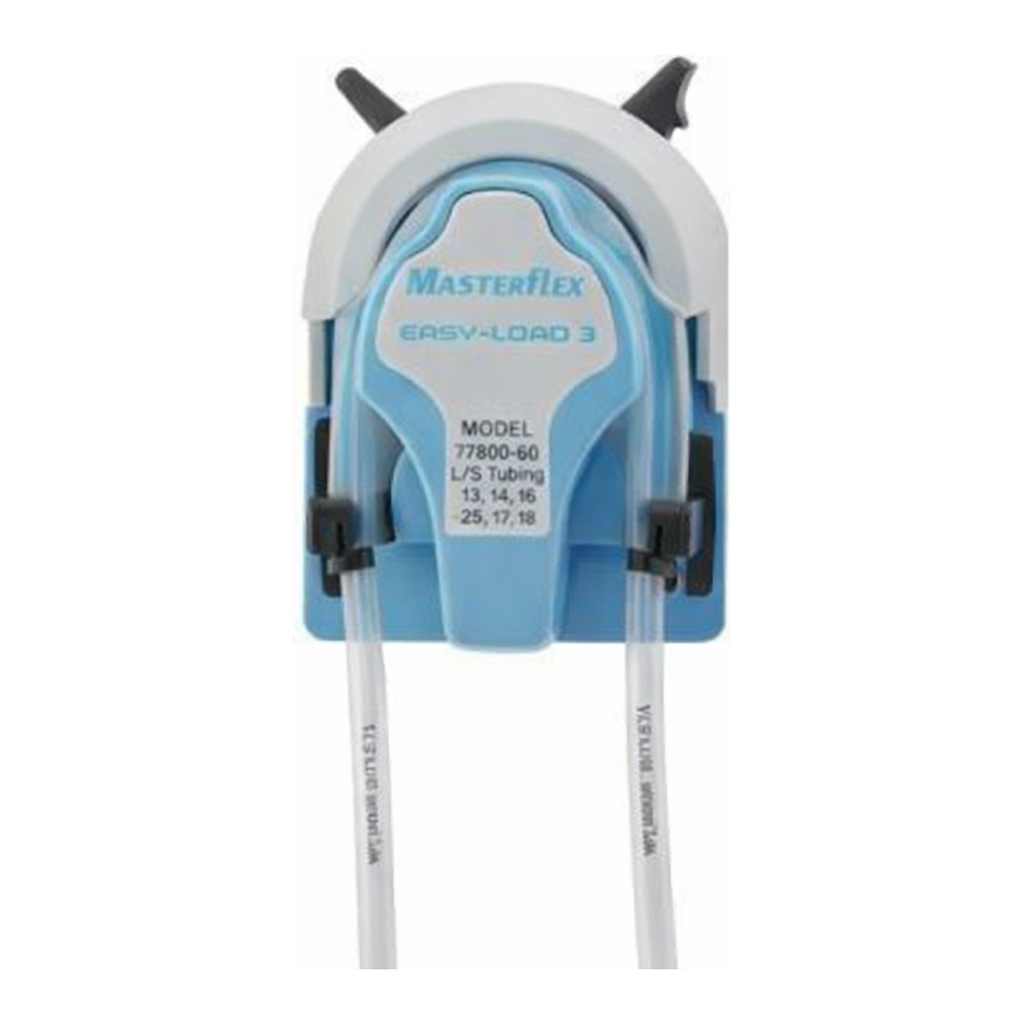

Masterflex L/S Easy-Load 3 Pump Heads for Precision Tubing, Avantor
