■ 본체만 구매 시 분해툴킷 미포함이며 별도 구매해야함
■ Dispersing Tool 구매 시 분해툴킷 포함(S10D-7G-KS-65 및 S10D-7G-KS-110에는 미포함)

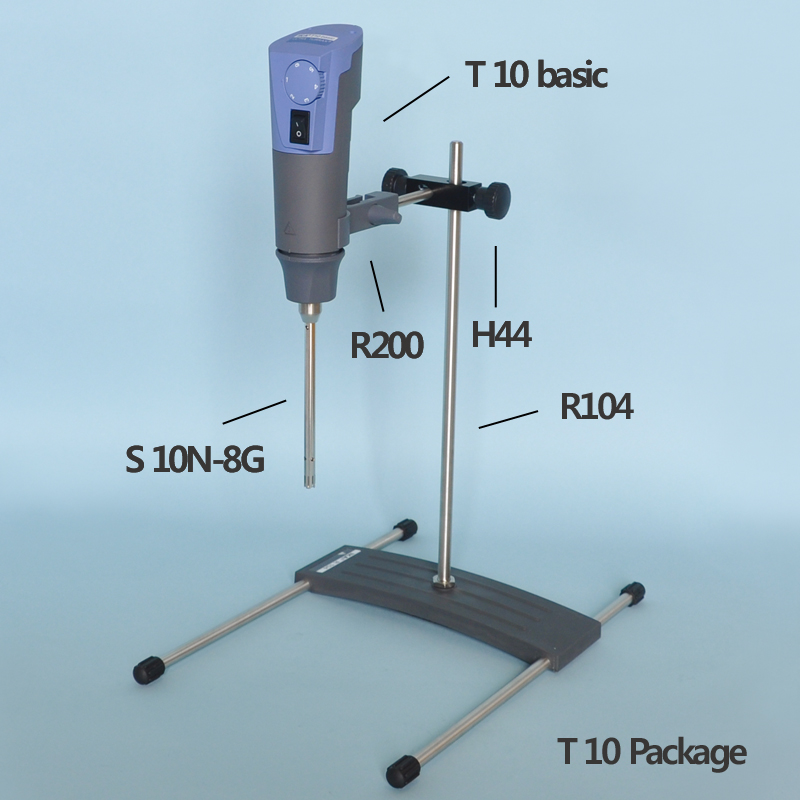

■ T10 Package : T10 basic, S10N-8G, H44, R104, R200

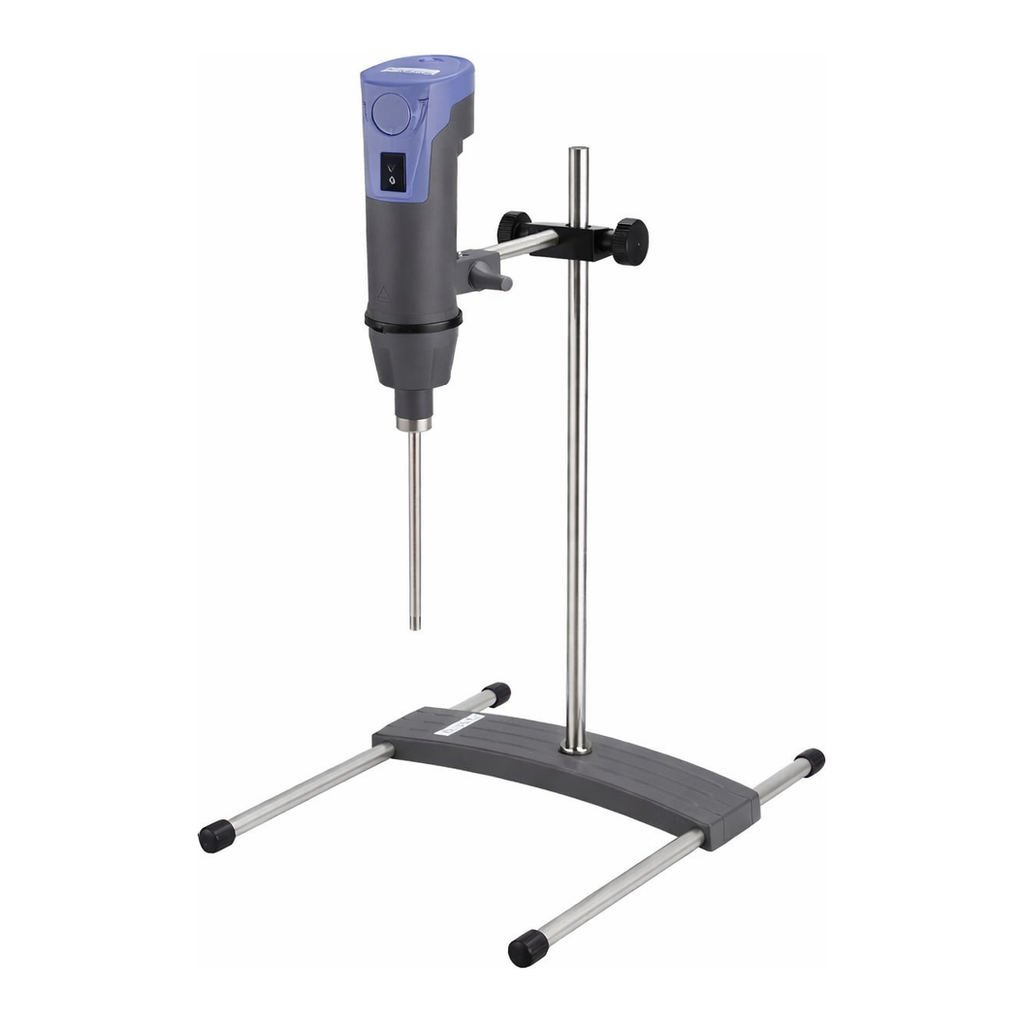

■ Hand-held 및 Stand를 이용하여 사용 가능
■ Dispersing elements를 쉽게 교체할 수 있는 커플링(Coupling)방식
■ IKA
| | | | |
| --- | --- | --- | --- |소용량 균질기
| Cat. No | Model | Type | 작업 가능 용량 |
| --- | --- | --- | --- |
| H01-05-205 | 3737000 | T10 basic | 0.5 ~ 100 ml |
| H01-05-125 | 3737000P | T10 Package |
| H01-05-920 | 3372000 | R200 | Clamp |
| H01-05-935 | 2437700 | H44 | Boss Head Clamp |
| H01-05-960 | 3386000 | R104 | Stand |
|
|
|
| Type |
|
T10 basic |
| --- |
--- |
--- |
| Motor Rating in/out |
|
125W / 75W |
| --- |
--- |
--- |
| Volume Range |
|
1 ~ 100 ml (H2O) |
| --- |
--- |
--- |
| Max. Viscosity |
|
5,000 mPas |
| --- |
--- |
--- |
| Speed Range |
|
8,000 ~ 30,000 rpm |
| --- |
--- |
--- |
| Speed 조절 |
|
6 단 (Scale) |
| --- |
--- |
--- |
| Size |
Extension Arm |
Ø8×L100 mm |
| --- |
--- |
--- |
| Overall |
w63×d57×h210 mm |
|
| --- |
--- |
--- |
| Power |
|
230 V, 50/60 Hz |
Tool/Dispersing Element for T10 basic
| Cat. No. |
H01-05-514 |
H01-05-520 |
H01-05-526 |
| Model |
3304000 |
3305500 |
3370100 |
| --- |
--- |
--- |
--- |
| Type |
S10N-5G |
S10N-8G |
S10N-10G |
| Working Range |
0.5 ~ 10 ml |
1 ~ 50 ml |
1 ~ 100 ml |
| Stator Diameter |
5 mm |
8 mm |
10 mm |
| Roter Diameter |
3.8 mm |
6.1 mm |
7.6 mm |
| Immersion min/max |
20 / 75 mm |
20 / 95 mm |
20 / 100 mm |
| Shaft length |
92 mm |
115 mm |
|
| Ultimate Suspension |
5 - 25 um |
|
|
| Ultimate Emulsion |
1 - 10 um |
|
|
Plastic Dispersing Element for T10 basic
| Cat. No. |
H01-05-817 |
H01-05-829 |
| Model |
3433225 |
3433325 |
| --- |
--- |
--- |
| Type |
S10D-7G-KS-65 |
S10D-7G-KS-110 |
| --- |
--- |
--- |
| Working Range |
1 ~ 20 ml |
1 ~ 40 ml |
| Stator Diameter |
7 mm |
|
| Rotor Diameter |
4.8 mm |
|
| Immersion min/max |
20 / 50 mm |
20 / 90 mm |
| Shaft length |
65 mm |
110 mm |
| Max. Temperature |
100℃, Autoclavable |
|
| 재질 |
Polycarbonate (PC) & Polysulfon (PCU), FDA 승인 |
|
● Ideal for Homogenizing Tissue Sample
Sawtooth(ST) dispersing Tool for T10 basic
| Cat. No. |
H01-05-831 |
H01-05-833 |
| Model |
4446500 |
4446700 |
| --- |
--- |
--- |
| Type |
S10N-8G-ST |
S10N-10G-ST |
| --- |
--- |
--- |
| Working Range |
1 ~ 50 ml |
1 ~ 100 ml |
| Stator Diameter |
8 mm |
10 mm |
| Rotor Diameter |
6.1 mm |
7.6 mm |
| Immersion min/max |
22 / 95 mm |
23 / 100 mm |
| Shaft length |
115 mm |
|
| Rotor/Stator Gap |
0.25 um |
0.2 um |
| 재질 |
PTFE, AISI316L |
|
Optional Accessory
| Cat. No |
Model |
Type |
작업 가능 용량 |
| H01-05-690 |
25001829 |
Tool Kit |
Flat key P |
| H01-05-692 |
25001830 |
Shaft key |
|
● Tool kit for T10, T25 Digital Homogenizer
