Thermo Scientific™

Eutech DO 1730 Dissolved Oxygen Bench Meters

Eutech DO 1730 dissolved oxygen bench meters offer a basic, cost-effective testing option for measuring DO as % saturation or concentration with temperature. Each Eutech 1730 DO meter features a large display with backlight, easy operation and meter-integrated electrode holder.

Select Eutech DO 1730 dissolved oxygen bench meters for a basic, cost-effective option for your dissolved oxygen testing needs. Eutech 1730 DO meters measure DO as % saturation or concentration with temperature. Each Eutech 1730 DO meter features a large display with backlight, easy operation and meter-integrated electrode holder.

사양

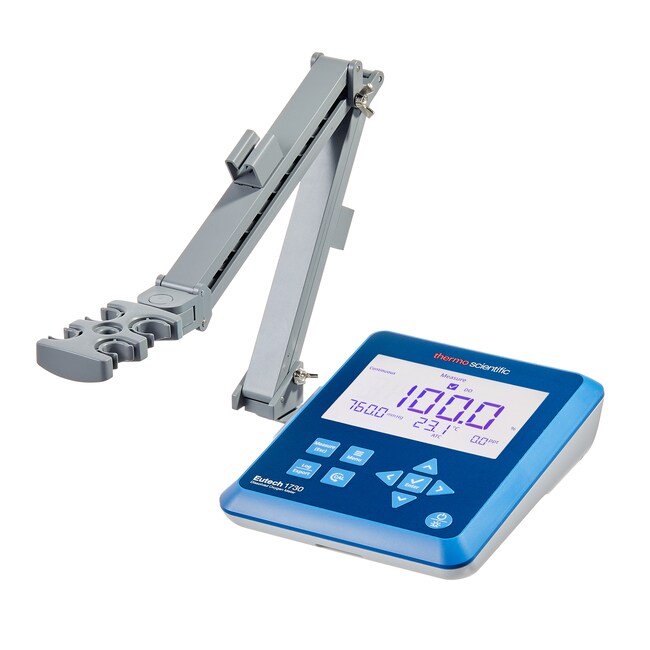

설명Eutech DO 1730 dissolved oxygen bench meter with stand

출력Computer or printer (STARA-106)

포함Meter with electrode stand, PC cable, universal power adapter

용도(애플리케이션)Meter and Stand Option, Select and Purchase The Electrode Separately

Measurement ModesDissolved Oxygen (% Saturation with Temperature), Dissolved Oxygen (mg/L with Temperature), Dissolved Oxygen (ppm with Temperature)

센서 유형Galvanic

범위(폴라로그래픽 DO)0.0 to 300.0% saturation; 0.00 to 30.0 mg/L or ppm

분해능(폴라로그래픽 DO)0.1, 1% saturation; 0.01, 0.1 mg/L or ppm

정확도(폴라로그래픽 DO)±2% saturation ± 1 LSD; ±0.2 mg/L ± 1 LSD

압력 범위400.0 to 850.0 mmHg; 0.533 to 1.133 bar

보정 모드100% saturation, 0% saturation, custom concentration value

온도(미터법) 범위-5.0°C to +105.0°C

분해능(온도)0.1°C

정확도(온도)±0.3°C

온도 선택Manual or automatic with built-in ATC sensor

온도 프로브 보정1 point temperature offset calibration

디스플레이 유형5 in. backlit LCD

백라이트 옵션Yes

메모리Non-volatile

데이터 포인트500 data sets with time and date

로그 기능 유형Automatic with Auto-Read and Timed read modes, manual with Continuous read mode

데이터 관리 세부 정보Continuous, Auto-Read and Timed read modes

알람 출력Calibration reminder alarm

입력BNC for DO and phono plug for ATC

인증/적합성CE, TUV 3-1, FCC Class A

IP 등급IP54

AC 어댑터Universal 100-240 V 50/60 Hz power supply with twist-and-lock meter connection and interchangeable wall plugs for US/Japan, Euro, UK/Singapore, Australia/New Zealand and China outlets

치수(길이 x 폭 x 높이)198.3 x 155.2 x 61.7 mm (7.81 x 6.11 x 2.43 in.)

중량(미터법)700 g

중량(영국식 단위)1.54 lb.

상대 습도 범위5 to 85%, non-condensing

워런티3 year meter warranty

Percent Saturation Range Polarographic DO0.0 to 300.0% saturation

Unit SizeEach
