Thermo Scientific™

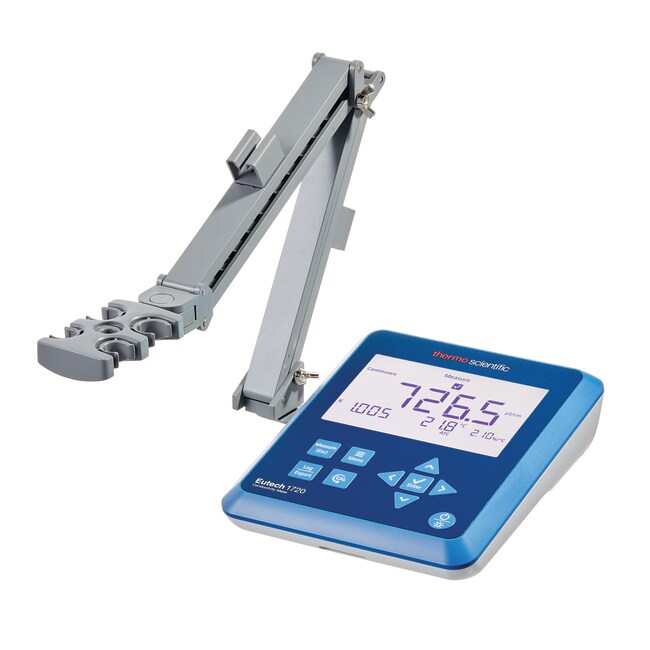

Eutech EC 1720 Conductivity Bench Meters

Eutech EC 1720 conductivity bench meters offer a basic, cost-effective testing option for measuring conductivity, salinity or TDS with temperature. Each Eutech 1720 conductivity meter features a large display with backlight, easy operation and meter-integrated electrode holder.

Select Eutech EC 1720 conductivity bench meters for a basic, cost-effective option for your conductivity, salinity and total dissolved solids (TDS) testing needs. Eutech 1720 conductivity meters measure conductivity, salinity or TDS with temperature. Each Eutech 1720 conductivity meter features a large display with backlight, easy operation and meter-integrated electrode holder.

사양

정확도(전도도)±0.5% of the reading ± 1 LSD

설명Eutech EC 1720 conductivity/salinity/TDS bench meter with stand

출력Computer or printer (STARA-106)

포함Meter with electrode stand, PC cable, universal power adapter

용도(애플리케이션)Meter and Stand Option, Select and Purchase The Electrode Separately

Measurement ModesConductivity with Temperature, Salinity with Temperature, TDS with Temperature

함께 사용가능한 프로브2-cell and 4-cell conductivity electrodes

세포 상수0.100 to 10.00 cm-1

보정Conductivity, salinity, TDS and temperature

보정 지점(전도도)1-5 points conductivity

보정 지점1 point salinity, 1-5 points TDS

범위(전도도)0.00 μS to 500.0 mS

분해능(전도도)0.01, 0.1, 1 μS; 0.01, 0.1 mS

온도 보상Linear (0 to 10%/°C) or off

온도 계수0 to 10%/°C

온도(미터법) 참조15.0, 20.0, 25.0 or 30.0°C

범위(염도)0.00 to 80.0 ppt

분해능(염도)0.01, 0.1 ppt

정확도(염도)±0.5% of the reading ± 1 LSD

염도 측정 모드Natural Seawater (ppt)

분해능(TDS)0.01, 0.1, 1 ppm; 0.01, 0.1 ppt

정확도(TDS)±0.5% of the reading ± 1 LSD

TDS 계수 범위0.40 to 1.00

온도 범위(미터법)-5.0°C to +105.0°C

분해능(온도)0.1°C

정확도(온도)±0.3°C

온도 선택Manual or automatic with built-in ATC sensor

온도 프로브 보정1 point temperature offset calibration

디스플레이 유형5 in. backlit LCD

백라이트 옵션Yes

메모리Non-volatile

데이터 포인트500 data sets with time and date

로그 기능 유형Automatic with Auto-Read and Timed read modes, manual with Continuous read mode

데이터 관리 세부 정보Continuous, Auto-Read and Timed read modes

알람 출력Calibration reminder alarm

입력DIN for conductivity with built-in ATC

인증/적합성CE, TUV 3-1, FCC Class A

IP 등급IP54

AC 어댑터Universal 100-240 V 50/60 Hz power supply with twist-and-lock meter connection and interchangeable wall plugs for US/Japan, Euro, UK/Singapore, Australia/New Zealand and China outlets

치수(길이 x 폭 x 높이)187.2 x 155.2 x 61.7 mm (7.37 x 6.11 x 2.43 in.)

중량(미터법)700 g

중량(영국식 단위)1.54 lb.

워런티3 year meter warranty

Unit SizeEach
