■ 재질 : Stainless Steel 304
■ 바닥에서부터 Booth Type으로 제작 설치
■ 기타 자세한 사항은 문의 요함 (규격외 사이즈 공급가능)
■ PL Insurance (제조물 배상 책임 보험)
■ Validation(IQ, OQ) 가능
■ LK Labkorea
■ (주)엘케이랩코리아 제작품 제품문의 : 031-573-4952(내선 1703) / 070-4282-1452 / fac@lklab.com
| | | |

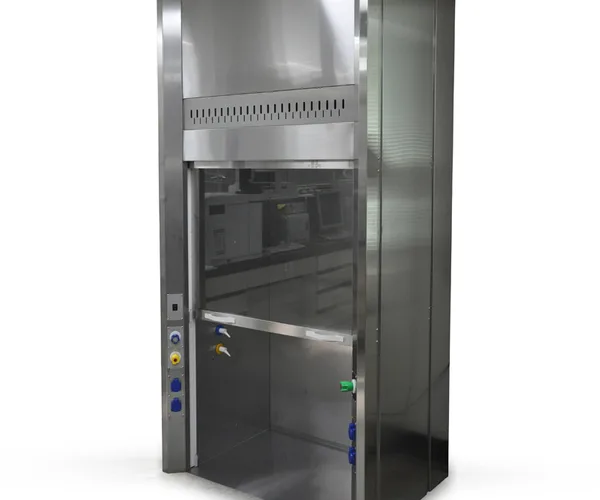

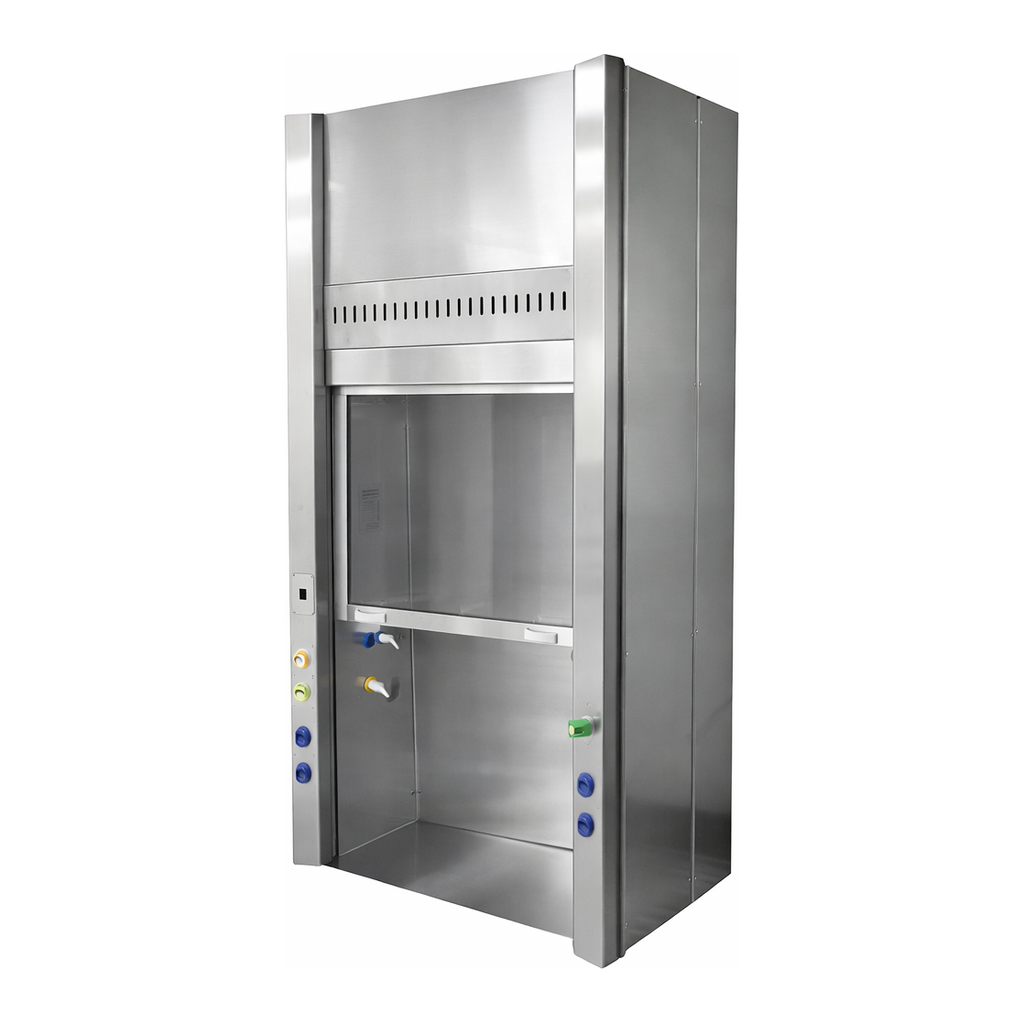

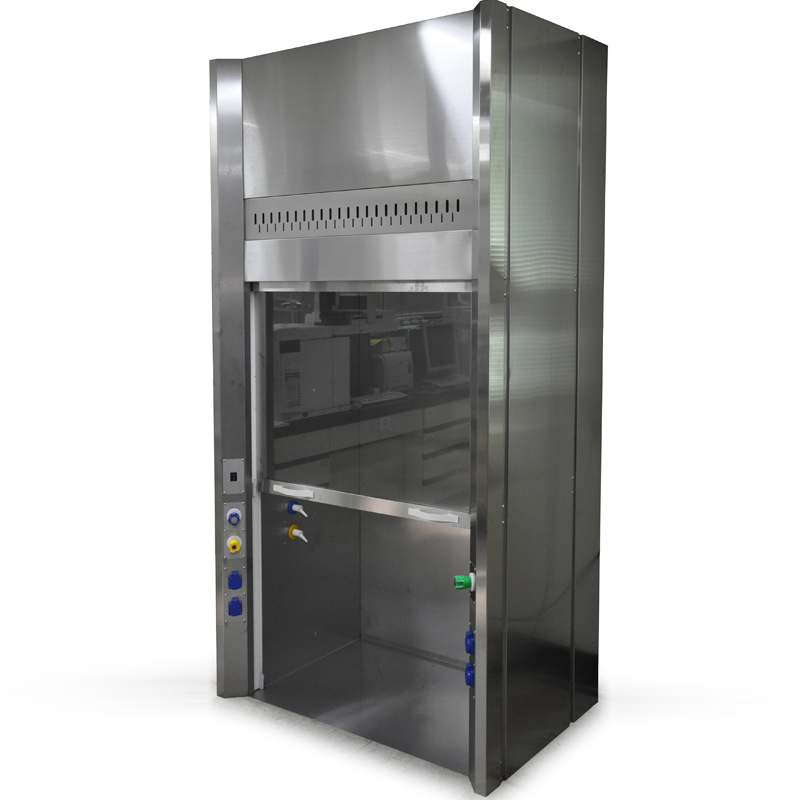

| --- | --- | --- |워크인 후드
| Cat. No | Model | 외부 Wide |
| --- | --- | --- |
| H02-26-350 | FHW1500SSS | 1500 mm |
| H02-26-380 | FHW1800SSS | 1800 mm |
| H02-26-410 | FHW2100SSS | 2100 mm |
Specification
| Model |
|
FHW1500SSS |
FHW1800SSS |
FHW2100SSS |
| Material |
|
Stainless Steel 304 ( Internal, External, Working Plate ) |
|
|
| --- |
--- |
--- |
--- |
--- |
| Size |
Internal |
w1220×d630×h2100mm |
w1320×d630×h2100mm |
w1620×d630×h2100mm |
| --- |
--- |
--- |
--- |
--- |
| External |
w1500×d800×h2350mm |
w1800×d800×h2350mm |
w2100×d800×h2350mm |
|
| --- |
--- |
--- |
--- |
--- |
| Cock |
|
Air, Gas 각 1개 |
|
|
| --- |
--- |
--- |
--- |
--- |
| Sink |
|
요청에 의해 설치 가능 |
|
|
| --- |
--- |
--- |
--- |
--- |
| Explosion proof lamp |
|
2ea |
|
|
| --- |
--- |
--- |
--- |
--- |
| Concent |
|
220V×4ea (요청에 의해 110V 설치 가능) |
|
|
| --- |
--- |
--- |
--- |
--- |
| Power |
|
110V / 60Hz and 220V / 60Hz |
|
|
| --- |
--- |
--- |
--- |
--- |
