Invitrogen™

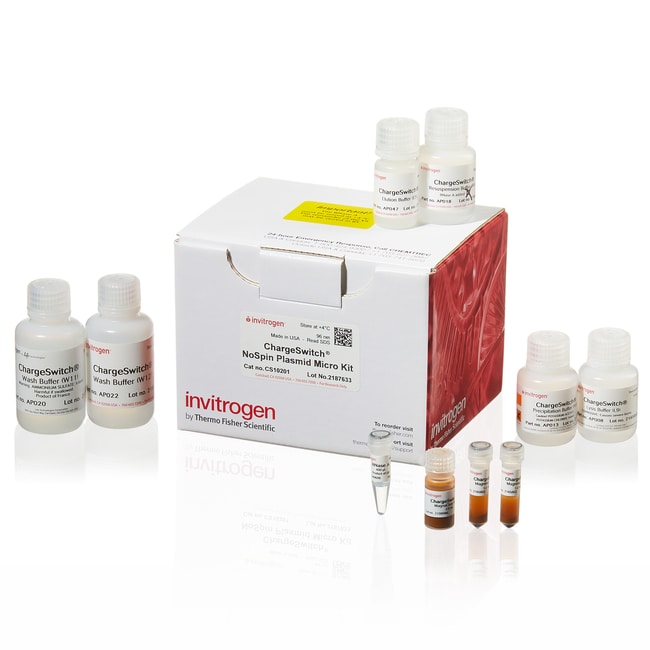

ChargeSwitch™ NoSpin Plasmid Micro Kit

The ChargeSwitch NoSpin Plasmid Micro Kit provides centrifuge-free microprep plasmid purification that is not only ideal for automation but is자세히 알아보기

The ChargeSwitch NoSpin Plasmid Micro Kit provides centrifuge-free microprep plasmid purification that is not only ideal for automation but is adaptable to the KingFisher Flex Purification System. The novel NoSpin reagent causes bacterial cell flocculation and allows cells to be pelleted without the need for automation bottlenecks like centrifugation. This kit includes all the necessary reagents for 0.5–1 mL overnight culture samples with a typical yield of up to 5 μg and requires the use of a magnetic accessory or automation system such as the KingFisher Flex system.

• Provides centrifuge-free purification
• Avoids introduction of enzymatic contaminants for better results
• Optimized for automation
• Ideal for use on the KingFisher Flex system

Performance improvements
This ChargeSwitch NoSpin Plasmid Micro Kit workflow has been adapted to the KingFisher Flex system to allow for purification of 96 samples in about half the time it takes to perform manually. The use of this automated platform results in better performance of the workflow for increased yield (3-fold), purity, and integrity (supercoiling increased from 50% to 90%) (see figures).

Expected Yield (manual): up to 5 μg
Expected Yield (automated): up to 10 μg
Plasmid DNA size: any size plasmid or cosmid
Number of steps (manual): 30
Number of 96 deep well plates: 7
Total time (manual): 90 min
Automated time (hands on + script): 14 min + 30 min (44 min)
Wash steps: 2
Elution volume (μL): 100

사양

형식Kit

Isolation TechnologyChargeSwitch Chemistry

샘플 종류Bacterial Culture

최종 제품 유형Plasmid DNA

용도(애플리케이션)Next-Generation Sequencing, Transfection, Cloning, Sequencing, Transformation, Nucleic Acid Labeling, PCR, In Vitro Transcription

고처리량 호환성High-throughput Compatible (KingFisher Flex)

프렙 스케일< 100 μg (Small-Scale) Plasmid DNA

제품라인ChargeSwitch™

제품 유형NoSpin Plasmid Micro Kit

수량96 Preps

배송 조건Room Temperature

타겟Plasmid DNA

Unit SizeEach
