■ Strong, lightweight aluminium construction

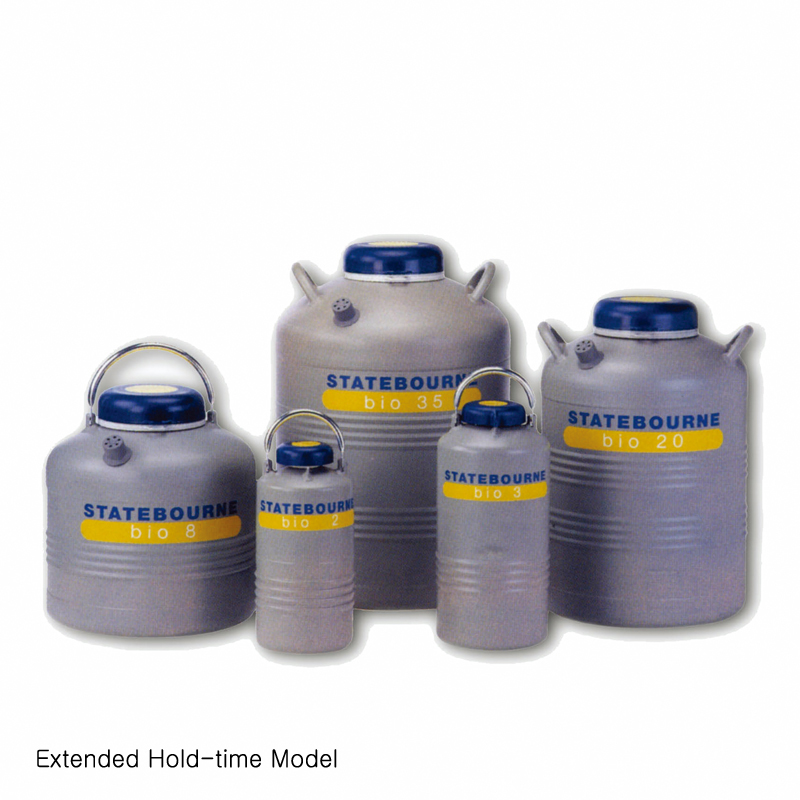

■ Statebourne Extended Hold-time Model
| Cat. No |
Model |
용량 |
Size |
| C25-07-095 |
Bio 2 |
2 L |
Φ185×h390 mm |
| C25-07-100 |
Bio 3 |
3 L |
Φ216×h464 mm |
| C25-07-105 |
Bio 8 |
8 L |
Φ407×h475 mm |
| C25-07-110 |
Bio 10 |
10 L |
Φ305×h640 mm |
| C25-07-115 |
Bio 20 |
20 L |
Φ407×h640 mm |
| C25-07-120 |
Bio 35 |
35 L |
Φ480×h730 mm |
● With narrow neck openings for high thermal efficiency
● This models offer long tern storage possibilties with minimal LN2 consumption
|
|
|
|
|
|
|
| Cat. No. |
C25-07-095 |
C25-07-100 |
C25-07-105 |
C25-07-110 |
C25-07-115 |
C25-07-120 |
| --- |
--- |
--- |
--- |
--- |
--- |
--- |
| Model |
Bio 2 |
Bio 3 |
Bio 8 |
Bio 10 |
Bio 20 |
Bio 35 |
| --- |
--- |
--- |
--- |
--- |
--- |
--- |
| Capacity |
2 L |
3 L |
8 L |
10 L |
20 L |
35 L |
| Evaporation Rate |
0.08 L/day |
0.11 L/day |
0.10 L/day |
0.10 L/day |
0.10 L/day |
0.10 L/day |
| Static Hoding Time |
25 day |
27 day |
80 day |
100 day |
200 day |
350 day |
| Weight Empty |
3 kg |
4.3 kg |
8.6 kg |
7.9 kg |
11.1 kg |
18.6 kg |
| Weight Full |
4.6 kg |
6.7 kg |
15.1 kg |
16 kg |
27.3 kg |
46.9 kg |
| Neck Diameter |
32 mm |
51 mm |
51 mm |
51 mm |
51 mm |
51 mm |
| Roller Base |
× |
× |
O |
× |
O |
O |
| Number of Canister |
3 |
6 |
6 |
6 |
6 |
6 |
| Canister Dia. / Height |
25 / 120 mm |
38 / 120 mm |
38 / 120 mm |
38 / 275 mm |
38 / 275 mm |
38 / 275 mm |
| 2ml Vial Capacity |
× |
× |
× |
180 ea |
180 ea |
180 ea |
| Straw Capa. 0.25 / 0.5cc |
360 / 120ea |
1200 / 500ea |
1200 / 500ea |
2400 / 1000ea |
2400 / 1000ea |
2400 / 1000ea |
Large Capacity Model
| Cat. No |
Model |
용량 |
Size |
| C25-07-125 |
Bio 12 |
12 L |
Φ408×h470 mm |
| C25-07-130 |
Bio 21 |
21 L |
Φ480×h579 mm |
| C25-07-135 |
Bio 22 |
Φ480×h537 mm |
|
| C25-07-140 |
Bio 34 |
34 L |
Φ480×h710 mm |
| C25-07-145 |
Bio 36 |
35 L |
|
● With wide neck openings for easy access
● This models allow the storage of large quantities of biological material
|
|
|
|
|
|
| Cat. No. |
C25-07-125 |
C25-07-130 |
C25-07-135 |
C25-07-140 |
C25-07-145 |
| --- |
--- |
--- |
--- |
--- |
--- |
| Model |
Bio 12 |
Bio 21 |
Bio 22 |
Bio 34 |
Bio 36 |
| --- |
--- |
--- |
--- |
--- |
--- |
| Capacity |
12 L |
21 L |
21 L |
34 L |
35 L |
| Evaporation Rate |
0.19 L/day |
0.19 L/day |
0.28 L/day |
0.18 L/day |
0.30 L/day |
| Static Hoding Time |
63 day |
110 day |
75 day |
189 day |
117 day |
| Weight Empty |
10.8 kg |
15.6 kg |
15.7 kg |
17.8 kg |
19.1 kg |
| Weight Full |
20.4 kg |
32.6 kg |
32.7 kg |
45.3 kg |
47.4 kg |
| Neck Diameter |
70 mm |
89 mm |
120 mm |
89 mm |
120 mm |
| Roller Base |
O |
O |
O |
O |
O |
| Number of Canister |
9 |
6 |
10 |
6 |
10 |
| Canister Dia. / Height |
46 / 120mm |
68 / 120mm |
73 / 120mm |
69 / 275mm |
73 / 275mm |
| 2ml Vial Capacity |
× |
× |
× |
684 ea |
1020 ea |
| Straw Capa. 0.25 / 0.5cc |
4680 / 2200ea |
4920 / 2300ea |
8200 / 3800ea |
9840 / 4200ea |
16400 / 7800ea |
Accessory
Roller Base
| Cat. No |
Model |
규격 |
| C25-07-500 |
9902082 |
for Bio 8, 20, 12 |
| C25-07-520 |
9902112 |
for Bio 21, 22, 34, 35, 36 |
Other Accessory
| Cat. No |
Model |
규격 |
| C25-07-560 |
9702000 |
Cryoguard low level alarm |
| C25-07-570 |
9701321 |
Temperature Logger |
