■ Strong, Lightweight Aluminium Construction
■ 높은 열효율과 매우 낮은 증발 손실
■ Unique Pouring Trolley for Cryolab 25
■ 버킷 핸들 (2L, 5L & 10L) 또는 이중 핸들 (20L, 25L, 35L & 50L)
■ Roller Base, Trolley 와 LN2 Dispenser는 별도임 (Accessory란 참조)

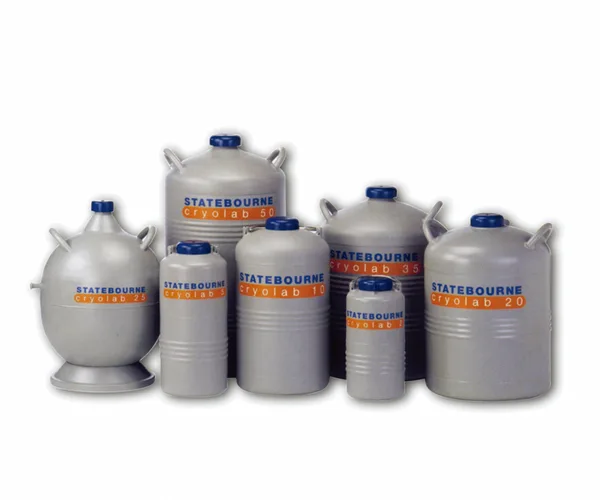

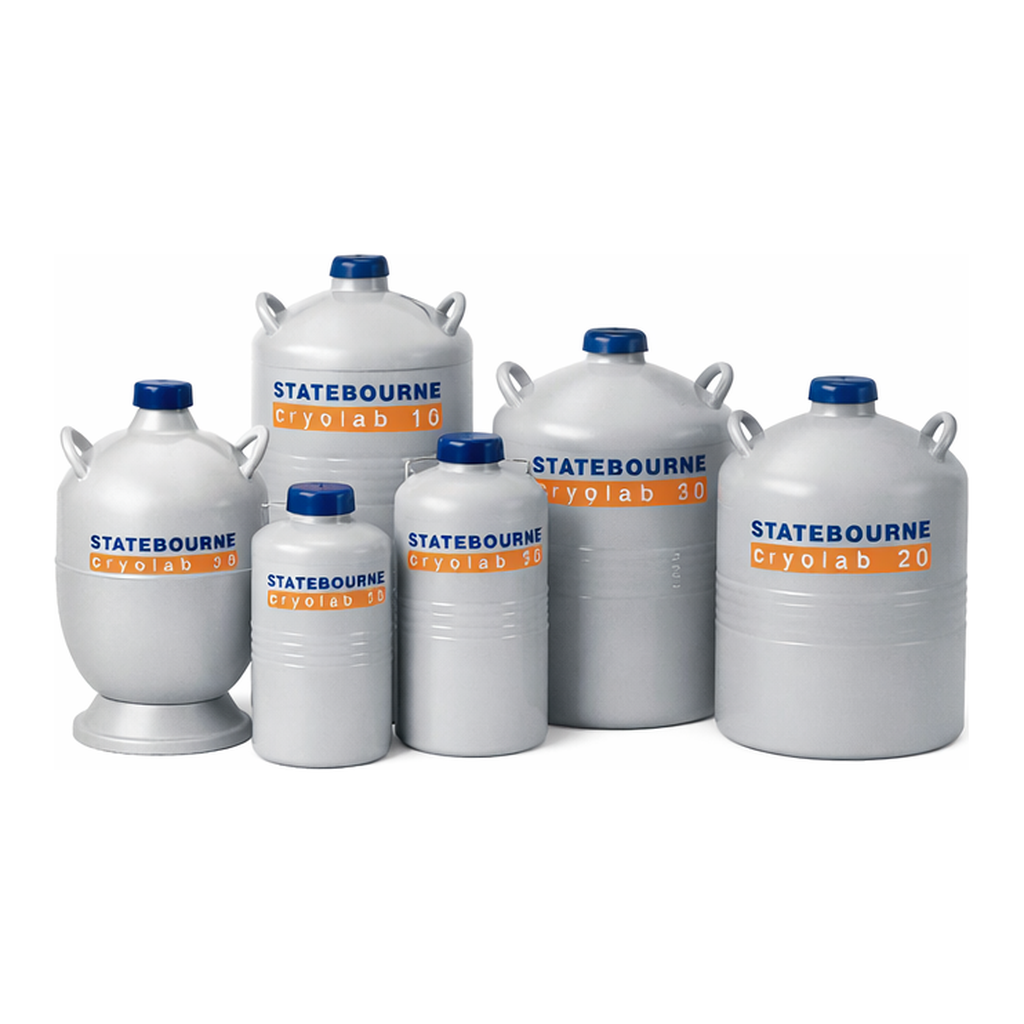

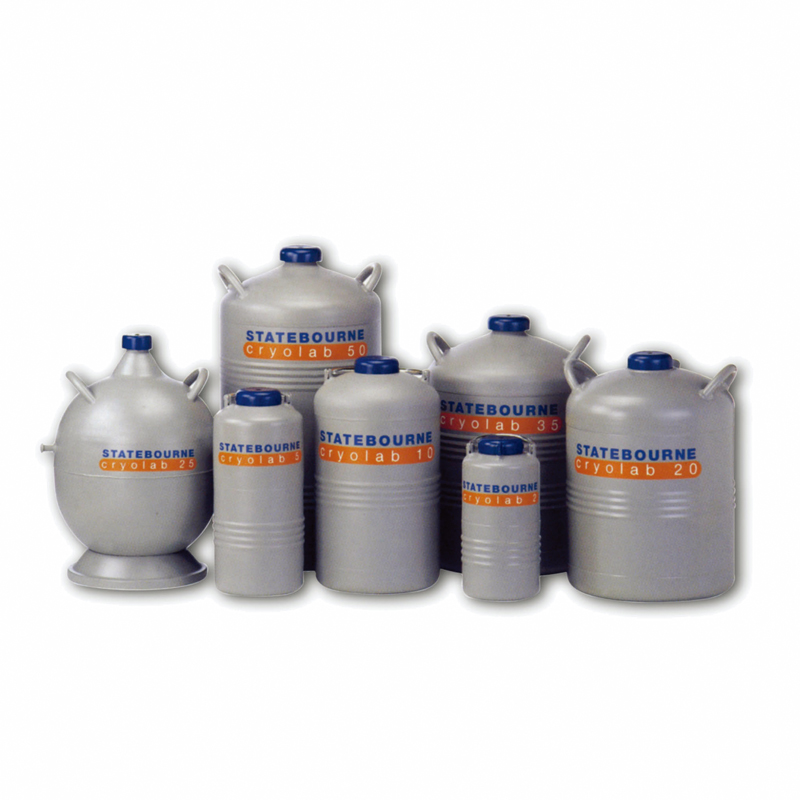

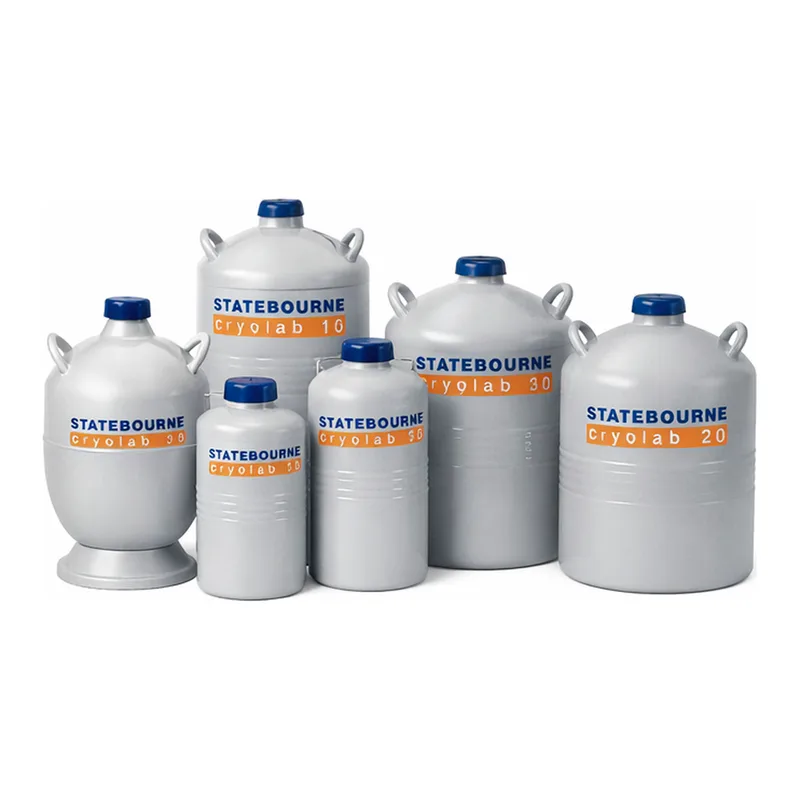

■ Statebourne / Cryolab®
| Cat. No |
Model |
용량 |
Size |
| C25-07-005 |
Cryolab 2 |
2 L |
Ø185×h385 mm |
| C25-07-010 |
Cryolab 5 |
5 L |
Ø216×h495 mm |
| C25-07-015 |
Cryolab 10 |
10 L |
Ø305×h560 mm |
| C25-07-020 |
Cryolab 20 |
20 L |
Ø407×h570 mm |
| C25-07-025 |
Cryolab 25 |
25 L |
Ø395×h585 mm |
| C25-07-030 |
Cryolab 35 |
35 L |
Ø407×h650 mm |
| C25-07-035 |
Cryolab 50 |
50 L |
Ø407×h810 mm |
| Cat. No. |
C25-07-005 |
C25-07-010 |
C25-07-015 |
C25-07-020 |
C25-07-025 |
C25-07-030 |
C25-07-035 |
| Model |
Cryolab 2 |
Cryolab 5 |
Cryolab 10 |
Cryolab 20 |
Cryolab 25 |
Cryolab 35 |
Cryolab 50 |
| Capacity |
2 L |
5 L |
10 L |
20 L |
25 L |
35 L |
50 L |
| Evaporation Rate |
0.08 L/day |
0.18 L/day |
0.2 L/day |
0.18 L/day |
0.25 L/day |
0.27 L/day |
0.28 L/day |
| Static Hoding Time |
25 day |
28 day |
50 day |
111 day |
100 day |
130 day |
178 day |
| Weight Empty |
2.8 kg |
4.1 kg |
5.6 kg |
9.1 kg |
7.4 kg |
12.2 kg |
15.5 kg |
| Weight Full |
4.4 kg |
8.1 kg |
13.7 kg |
25.3 kg |
27.6 kg |
40.5 kg |
55.9 kg |
| Neck Diameter |
32 mm |
51 mm |
51 mm |
51 mm |
51 mm |
63 mm |
63 mm |
| Roller Base |
× |
× |
× |
O |
O |
O |
O |
| LN2 Dispenser |
× |
× |
O |
O |
O |
O |
O |
| LN2 Dispenser w/ Flexible Hose |
× |
× |
× |
O |
O |
O |
O |
Liquid Dispenser / Liquid Withdrawal Device
| Cat. No |
Model |
적용 Vessel Neck Size |
| C25-07-610 |
9701306 |
51 mm for Cryolab 10 |
| C25-07-612 |
9701056 |
51 mm for Cryolab 20, 25 |
| C25-07-614 |
9701057A |
63 mm for Cryolab 35 |
| C25-07-616 |
9701057 |
63 mm for Cryolab 50 |
Liquid Dispenser with 1.2m Flexible Hose
| Cat. No |
Model |
적용 Vessel Neck Size |
| C25-07-622 |
9701157 |
51 mm for Cryolab 20, 25 (w/ 1.2m Transfer Hose) |
| C25-07-624 |
9701152A |
63 mm for Cryolab 35 (w/ 1.2m Transfer Hose) |
| C25-07-628 |
9701152 |
63 mm for Cryolab 50 (w/ 1.2m Transfer Hose) |
- Liquid Withdrawal Device with 1.2m Flexible Hose
Roller Base
| Cat. No |
Model |
Description |
| C25-07-500 |
9902082 |
for Cryolab 20, 35, 50 |
| C25-07-510 |
9901063 |
for Cryolab 25 |
Trolley for Cryolab 25
| Cat. No |
Model |
Description |
| C25-07-515 |
9901064 |
Pouring Trolley, w472 x h1033 mm |
