Norgen Plasma/Serum Cell-Free Circulating DNA Purification Midi Kit Dx
SKU: Dx55600
For isolating cell-free circulating DNA (cfc-DNA) from plasma/serum for subsequent in vitro diagnostic use.
Features and Benefits
- Concentrate circulating DNA into a flexible elution volume (25–50 µL)
- Isolate inhibitor-free cell-free circulating DNA
- Compatible with Streck Cell-Free DNA BCT® Tubes
- Spin column chromatography using Norgen’s proprietary resin
- Research use format also available
These kits provide a fast, reliable and convenient method for isolating high-quality, high-purity and inhibitor-free cfc-DNA from plasma or serum samples. Designed to isolate all fragment sizes from fresh or frozen specimens, the purified DNA is suitable for PCR, qPCR, methylation-sensitive PCR, Southern blot, microarray, and NGS applications.
Background
Cell-free circulating DNA (cfc-DNA) serves as potential biomarkers for cancers, autoimmune diseases, and fetal DNA in maternal blood. cfc-DNA fragments (<1000 bp) can be used for non-invasive prenatal testing, fetal sex determination, genetic disorder screening, and preeclampsia identification.
Kit Formats
| Kit Type | Input Volume Range | Purification Time | Description |
|---|---|---|---|
| Micro Kit Dx | 10–200 µL | 15–20 min | For small plasma/serum volumes |
| Mini Kit Dx | 200–500 µL | 15–20 min | For moderate sample volumes |
| Midi Kit Dx | 1–4 mL | 90 min | Handles large input volumes using two-column system |
| Maxi Kit Dx | 5–10 mL | 90 min | Two-column system for very large volumes |
Kit Specifications
| Specification | Value |
|---|---|
| Minimum Plasma/Serum Input | 1 mL |
| Maximum Plasma/Serum Input | 4 mL |
| Size of DNA Purified | ≥ 50 bp |
| Elution Volume | 25–50 µL |
| Time to Complete 10 Purifications | 90 minutes |
| Average Yields* | Variable depending on specimen |
*Refer to product manual (page 7) for yield and quantification details.
Storage and Stability
All buffers are stable at room temperature (15–25°C) for up to 2 years.
Proteinase K is ready-to-use and stable for up to 2.5 years at room temperature; refrigeration at 2–8°C extends shelf life.

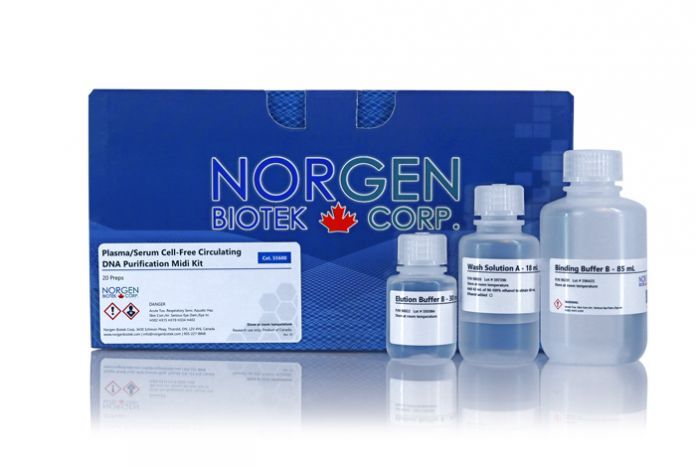

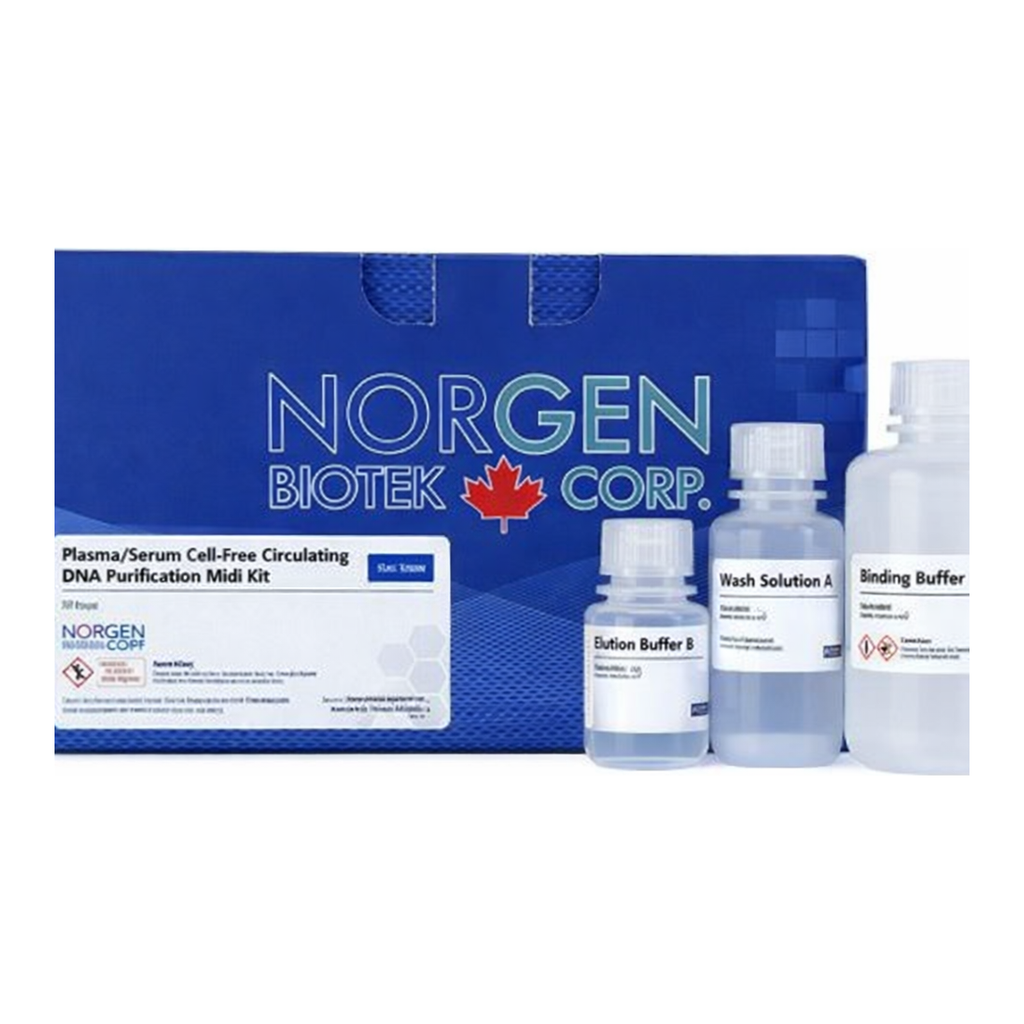

Kit Components
| Component | Cat. Dx55100 (50 preps) | Cat. Dx55500 (50 preps) | Cat. Dx55600 (20 preps) | Cat. Dx55800 (10 preps) |
|---|---|---|---|---|
| Binding Buffer B | 2 × 40 mL | 40 mL | 2 × 85 mL + 12 mL | 2 × 85 mL + 40 mL |
| Proteinase K | 2 × 1 mL | 0.6 mL | 6.5 mL | 8 mL |
| Solution WN | 18 mL | 18 mL | 18 mL | 18 mL |
| Wash Solution A | 38 mL | 18 mL | 18 mL | 18 mL |
| Elution Buffer B | 8 mL | 8 mL | 30 mL | 30 mL |
| Micro Spin Columns | 50 | 50 | 20 | 10 |
| Mini Spin Columns | 50 | – | – | – |
| Midi Spin Columns | – | – | 20 | – |
| Maxi Spin Columns | – | – | – | 10 |
| Collection Tubes | 100 | 50 | 20 | 10 |
| Elution Tubes (1.7 mL) | 100 | 50 | 20 | 10 |
| Product Insert | 1 | 1 | 1 | 1 |
Supporting Data
Figure 1. Purification of DNA from different plasma volumes
Norgen’s Mini Kit purified DNA from 200 µL, 300 µL, and 400 µL plasma compared to Competitor Q. qPCR of 5S rRNA gene showed linear increase with sample volume and higher recovery for Norgen.
OCR 데이터 요약
| Plasma Volume | Norgen (Relative 5S rRNA) | Competitor Q (Relative 5S rRNA) |
|---|---|---|
| 200 µL | ~1.3 | ~1.1 |
| 300 µL | ~1.9 | ~1.5 |
| 400 µL | ~2.7 | ~2.3 |
Figure 2. Linearity of DNA purified from increasing plasma volumes
Norgen’s Mini Kit showed high linearity (98%) across plasma volumes.
| Plasma Volume | Relative Amount | % Linearity |
|---|---|---|
| 200 µL | ~1.4 | 100 |
| 300 µL | ~1.9 | 98 |
| 400 µL | ~2.0 | 98 |
Figure 3. Detection of the human 5S gene
Average Ct values decreased with increasing PCR input volume (2, 4, 8 µL), indicating absence of PCR inhibitors.
Figure 4–6. Maxi Kit Data Summary
Comparison of Norgen vs Competitor Q across 5 mL, 8 mL, and 10 mL plasma samples.
| Plasma Volume | Norgen (Relative 5S rRNA) | Competitor Q | % Linearity |
|---|---|---|---|
| 5 mL | ~27 | ~25 | 100 |
| 8 mL | ~40 | ~35 | 94 |
| 10 mL | ~50 | ~45 | 96 |
Figure 10–12. Midi Kit Data Summary
Norgen’s Midi Kit demonstrated consistent linear recovery and absence of PCR inhibitors across 0.5–4 mL plasma volumes.
| Plasma Volume | % Recovery (5S rRNA) |
|---|---|
| 0.5 mL → 1 mL | 97% |
| 1 mL → 2 mL | 95% |
| 2 mL → 4 mL | 95% |
Documentation
- Protocol – Dx55600 (20 prep)
- Safety Data Sheet – Dx55600
- Application Note: Cell-Free DNA Preservation Study
- Flyer: Plasma/Serum Cell-Free Circulating DNA Kits
