Thermo Scientific™

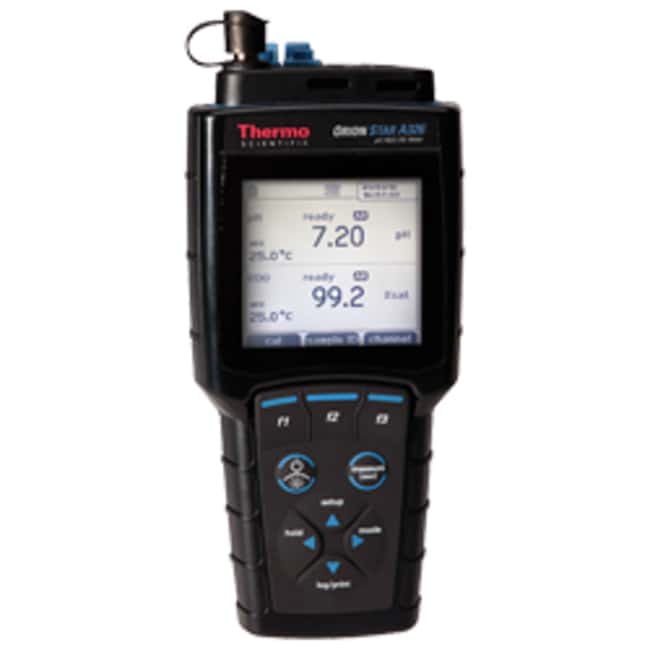

Orion Star™ A326 pH/Dissolved Oxygen Portable Multiparameter Meter

Accurately measure pH, dissolved oxygen and temperature with our pH/DO/RDO portable meter for high performance in challenging field tests.

Get high accuracy and premium performance everywhere you need it with the Thermo Scientific™ Orion Star™ A326 pH/Dissolved Oxygen Portable Multiparameter Meter. This meter is designed for a wide range of pH, mV, ORP, dissolved oxygen and temperature testing and field applications. Evaluate samples in the most demanding locations using this waterproof meter with IP67-rated housing. Use the two meter channels to measure pH and dissolved oxygen simultaneously or view each channel separately. Log up to 5000 data point sets with time/date stamp and easily transfer calibration and data logs via USB or RS232 to a printer or computer.

사양

AC 어댑터Universal 50-60 Hz, 100-240 VAC power adapter (sold separately, Cat. No. 1010003)

출력USB, RS232

정확도(바로미터)±6mmHg

정확도(mV)±0.2 mV or ±0.05% of reading whichever is greater

정확도(pH)±0.002

정확도(폴라로그래픽 DO)±0.2mg/L or ±2% of reading, whichever is greater

정확도(RDO)±0.1mg/L up to 8mg/L, ±0.2mg/L from 8 to 20mg/L, ±10% of reading up to 50mg/L

알람 출력High/low limit alarm, calibration due alarm

백라이트 옵션Yes, selectable

대기압 보정400 to 850mmHg, automatic using built-in barometer or manual entry

배터리 수명800 hr.

배터리 종류4 AA (included)

보정pH with calibration editing option, relative mV (RmV), ORP, dissolved oxygen and temperature

보정 모드Water-saturated air, air-saturated water, manual (Winkler titration), zero point

보정 지점1 point relative mV (RmV) mode, 1 point ORP mode

보정 지점(pH)1 to 5

인증/적합성CE, TUV 3-1, FCC Class A

데이터 관리 세부 정보Transfer single, range or all data points to printer or computer

데이터 포인트5000 with date and time stamp

설명Orion Star A326 pH/RDO/DO portable meter

채널2

디스플레이 유형LCD Graphic, Backlit

IP 등급IP 67

Measurement ModespH, mV, Relative mV, ORP with Temperature, Dissolved Oxygen (% Saturation), Dissolved Oxygen (mg/L with Temperature)

Percent Saturation Range Polarographic DO0.0 to 600.0 % saturation

범위(mV)±2000.0 mV

범위(pH)-2.000 to 20.000

분해능(pH)0.1/0.01/0.001

온도 범위(미터법)-5.0°C to +105.0°C

포함Star A326 pH/RDO/DO meter, 4 AA batteries, literature CD, printed quick start guide, computer interface cable and meter test certificate

입력BNC (pH or ORP electrode), pin-tip (reference electrode), 8 pin MiniDIN (ATC temperature probe), 9 pin MiniDIN (RDO optical or polarographic DO sensor with built-in temperature)

등전위 지점7.000pH

키패드Comprehensive with menu-specific function keys and dual purpose scroll/shortcut keys

언어English, Spanish, French, Italian, German and Chinese; Portuguese and Korean available with software update

로그 기능 유형Automatic data logging with Auto-Read and Timed measure modes; manual data logging with Continuous m

메모리Non-volatile memory preserves data log, calibration log and meter settings

방법10 per channel with password protection

모델Orion Star A326 pH/mV/RmV/ORP/RDO Optical/Dissolved Oxygen/Temperature Portable Meter

Percent Saturation Range (Polarographic DO)0.0 to 600.0 % saturation

Percent Saturation Relative Accuracy (RDO)±2 % saturation ≤ 200 % saturation, ±10 % saturation > 200 % saturation

Percent Saturation Resolution (Polarographic DO)0.1, 1 % saturation

백분율 포화도 범위(RDO)0.0 to 500.0 % saturation

Percent Saturation Relative Accuracy (Polarographic DO)±2 % saturation or ±2% of reading whichever is greater

백분율 포화 분해능(RDO)0.1, 1 % saturation

전원 공급 장치4 AA batteries (included) or universal AC adapter (sold separately)

압력 범위400 to 850mmHg

압력 분해능1mmHg

범위(ORP)±2000.0 mV

범위(폴라로그래픽 DO)0.00 to 90.00mg/L

범위(RDO)0.00 to 50.00mg/L

범위(상대 mV)±2000.0 mV

상대 습도 범위5 to 85 %, non-condensing

분해능(mV)0.1mV

분해능(폴라로그래픽 DO)0.01, 0.1mg/L

분해능(RDO)0.01, 0.1mg/L

염도 계수0.0 to 45.0 ppt, automatic correction using manual entry of sample salinity

안정성Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting

온도 정확도±0.1°C

온도(영국식 단위) 작동41°F to 113°F (ambient)

작동 온도(미터법) 작동5°C to 45°C (ambient)

온도 프로브 보정1 point temperature offset calibration

온도 범위(영국식 단위)22.0°F to 221.0° F

온도 분해능0.1°C, 0.1°F

온도 선택Manual or automatic with ATC temperature probe

워런티3 Year Meter

치수(길이 x 폭 x 높이)24cm x 10cm x 6.5cm (9.5 in. x 3.9 in. x 2.6 in.)

중량(영국식 단위)1.2 lb.

중량(미터법)0.5 kg

Unit SizeEach
