Thermo Scientific™

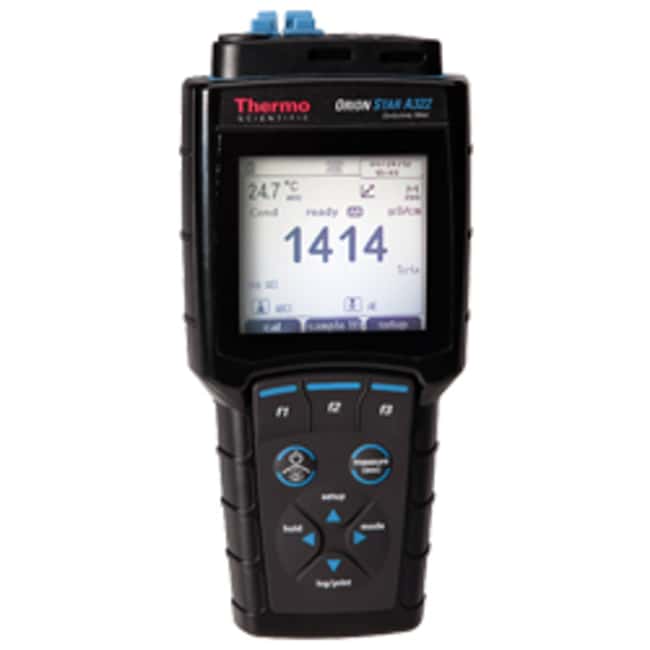

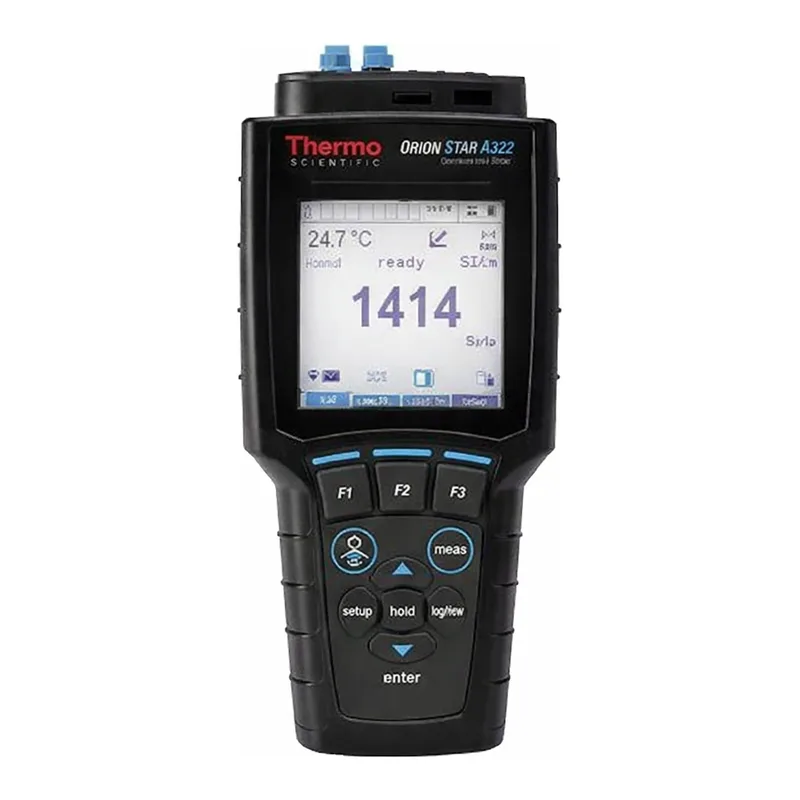

Orion Star™ A322 Conductivity Portable Meter

Accurately monitor conductivity, TDS, salinity, resistivity and temperature with this conductivity portable meter designed for challenging field tests.

Get high accuracy and premium performance everywhere you need it with the Thermo Scientific™ Orion Star™ A322 Conductivity Portable Meter. This instrument is designed for a wide range of conductivity, total dissolved solids (TDS), salinity, resistivity and temperature testing and field applications. Evaluate samples in the most demanding locations using this waterproof meter with IP67-rated housing. Select linear, non-linear pure water or EP temperature compensation with 5°C, 10°C, 15°C, 20°C or 25°C reference temperatures. Log up to 5000 data point sets with time/date stamp and transfer to a printer or computer.

사양

정확도(전도도)0.5% of reading ±1 digit > 3 μS; 0.5% of reading ±0.01 μS ≤ 3 μS

설명Orion Star A322 conductivity/TDS/salinity/resistivity portable meter

출력USB, RS232

포함Star A322 conductivity meter, 4 AA batteries, literature CD, printed quick start guide, computer interface cable and meter test certificate

Measurement ModesConductivity, TDS, Salinity, Resistivity with Temperature

함께 사용가능한 프로브2-cell or 4-cell conductivity sensors with built-in temperature

세포 상수0.001 to 199.9cm-1

보정Conductivity with calibration editing option and temperature

보정 지점(전도도)5

범위(전도도)0.001 μS/cm to 3000 mS/cm

분해능(전도도)0.001 μS minimum, auto ranging up to 4 significant digits

온도 보상Linear, nLFn (non-linear ultra pure water), nLFu (non-linear ultra pure degassed water), EP (off wit

온도(미터법) 참조5, 10, 15, 20, 25°C

범위(염도)0.06 to 80.00 psu, 0.05 to 42.00 ppt

분해능(염도)0.01 psu or 0.01 ppt minimum, auto ranging

정확도(염도)0.5% of reading ±1 digit

염도 측정 모드Practical salinity (psu) or natural sea water (ppt)

분해능(TDS)0.001 ppm minimum, auto ranging up to 4 significant digits

정확도(TDS)0.5% of reading ±1 digit

TDS 계수 범위Linear (0.02 to 9.99)

온도 범위(미터법)-5°C to +105°C

분해능(온도)0.1°C (0.1°F)

정확도(온도)±0.1°C

범위(저항)2 ohm to 100.0 megohm

온도 선택Manual or automatic with ATC temperature probe

온도 프로브 보정1 point temperature offset calibration

디스플레이 유형Graphic LCD with Backlight

백라이트 옵션Yes, selectable

메모리Non-volatile memory preserves data log, calibration log and meter settings

데이터 포인트5000 with date and time stamp

로그 기능 유형Automatic data logging with Auto-Read and Timed measure modes; manual data logging with Continuous m

데이터 관리 세부 정보Transfer single, range or all data points to printer or computer

알람 출력High/low limit alarm, calibration due alarm

입력8 pin MiniDIN (conductivity sensor with built-in temperature)

인증/적합성CE, TUV 3-1, FCC Class A

IP 등급IP67

AC 어댑터Universal 50-60 Hz, 100-240 VAC power adapter (sold separately, Cat. No. 1010003)

치수(길이 x 폭 x 높이)24 x 10 x 6.5 cm (9.5 x 3.9 x 2.6 in.)

중량(미터법)0.5 kg

중량(영국식 단위)1.2 lb.

워런티3 Year Meter

프로브 유형Conductivity sensor (purchase separately)

상대 습도 범위5 to 85%, non-condensing

모델Orion Star A322 Conductivity/TDS/Salinity/Resistivity/Temperature Portable Meter

분해능(저항성)1 ohm or 0.1 megohm, auto ranging

전원 공급 장치4 AA batteries (included) or universal AC adapter (sold separately)

방법10 per channel with password protection

안정성Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting

키패드Comprehensive with menu-specific function keys and dual purpose scroll/shortcut keys

언어English, Spanish, French, Italian, German and Chinese; Portuguese and Korean available with software update

온도(영국식 단위) 작동41°F to 113°F (ambient)

작동 온도(미터법) 작동5°C to 45°C (ambient)

채널1

정확도(저항성)0.5% of reading ±1 digit

배터리 종류4 x AA (included)

배터리 수명800 hr.

Unit SizeEach
