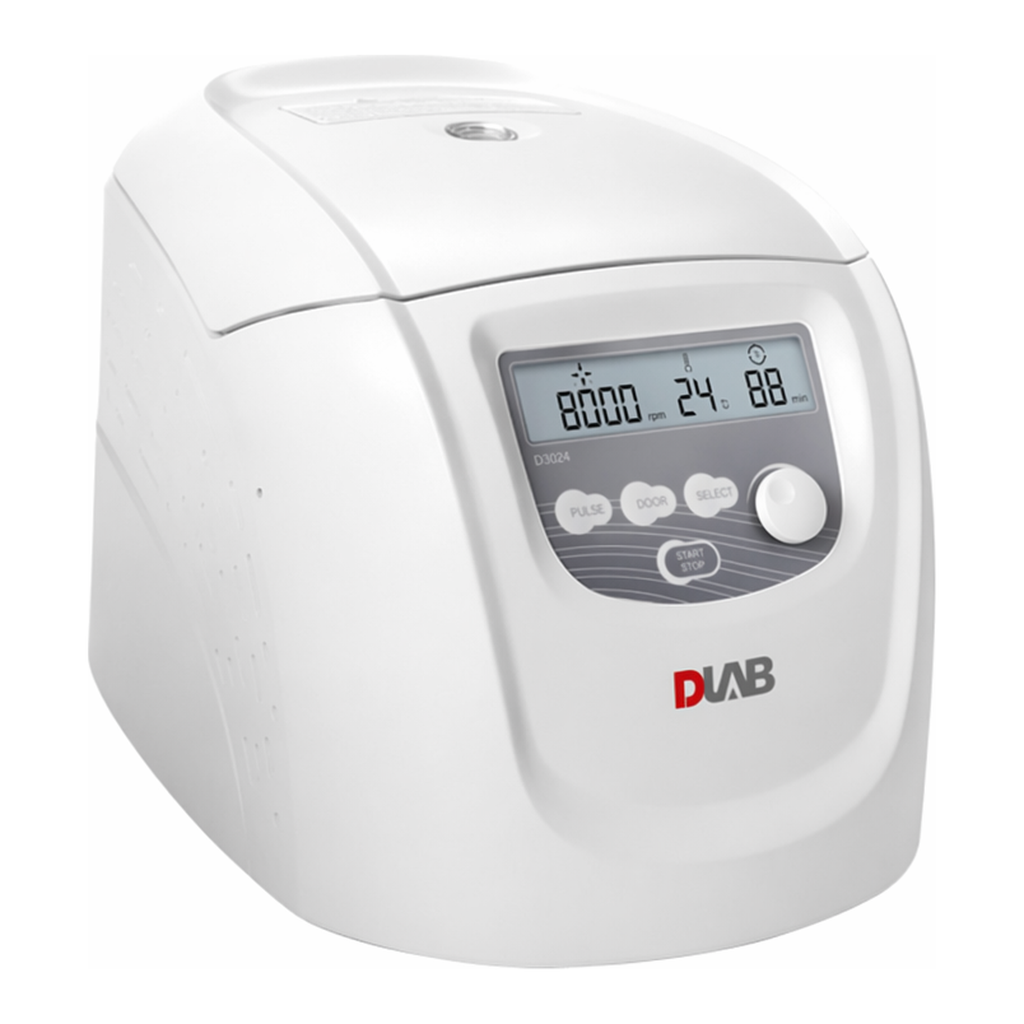

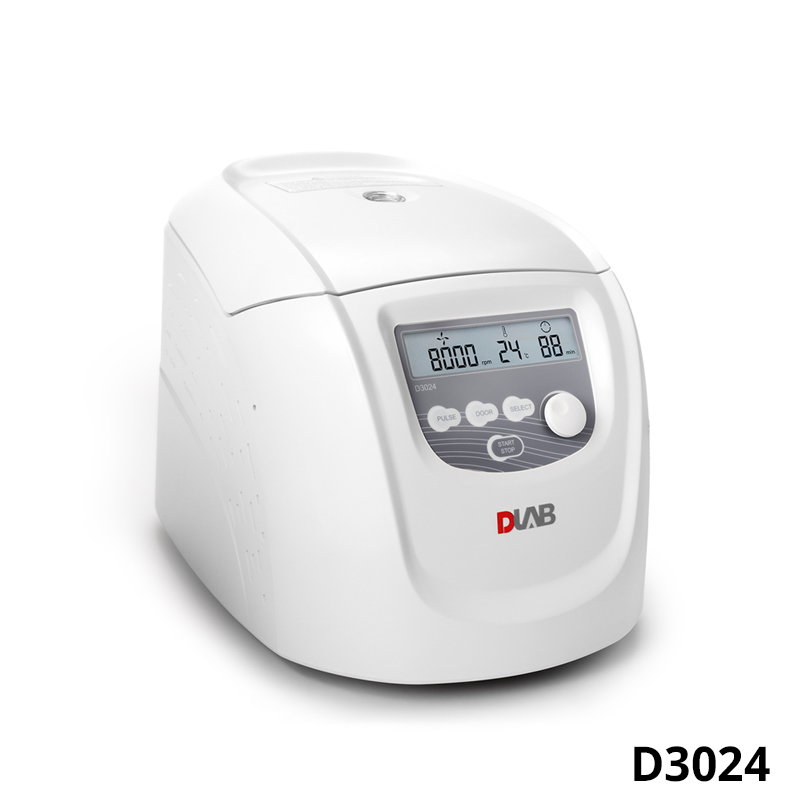

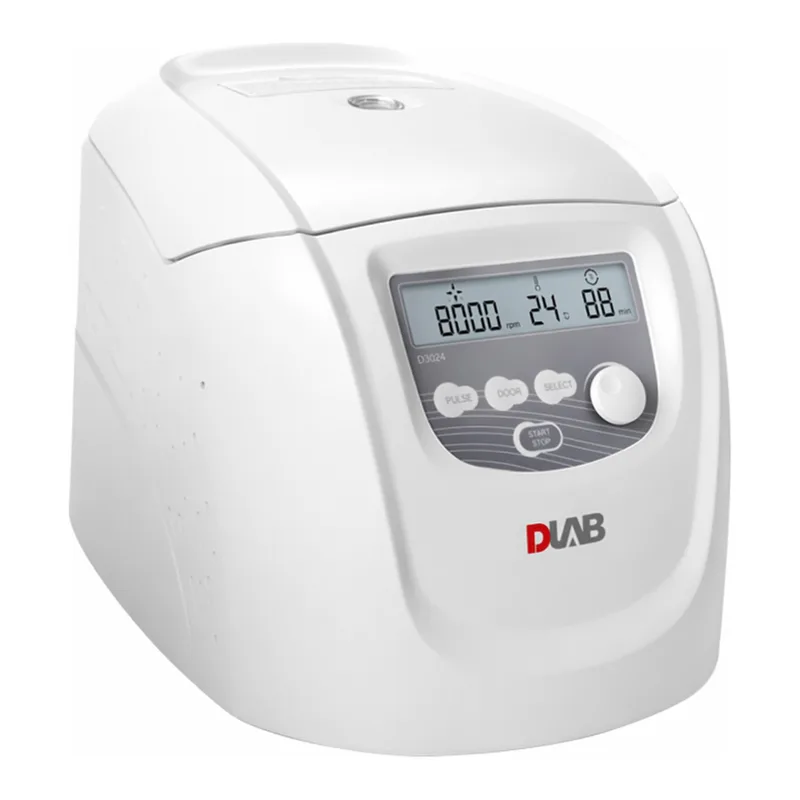

■ D3024 : High Speed Micro Centrifuge
- Multi-flow Air Cooling Design : Fast Cooling of Rotor
■ D1524R : High Speed Refrigerated Micro Centrifuge
- 4°C에서도 최대 회전 속도 가능
- 실험 요구사항에 따라 최대 9개의 프로그램을 저장하여 사용 가능
■ Aluminum Angle Rotor (AS24-2) 기본 포함
- 24개 × 1.5 / 2.0 ml Tube 용, Autoclavable
■ Bio-Safe(Bio Sealing) Rotor Type으로 샘플 누출 방지 (3 Rubber Seal)
■ Brushless Motor를 사용, 빠르고 효과적으로 설정 속도에 도달
■ Temperature, Speed와 RCF가 Digital로 Display 되어짐
■ Dual Door Interlock Design으로 Safety를 향상 시킴
■ Marked with CE, cTUVus and FCC & MCA Test (lEC/EN61010-2-20)
■ DLAB
|
|
|
|
| Cat. No |
Model |
Speed |
Type |
| --- |
--- |
--- |
--- |
| C05-238-301 |
D3024 |
Max. 15000 rpm |
Ambient |
| C05-238-305 |
D1524R |
Refrigerated, -20 to 40℃ |
|
| Cat. No. |
C05-238-301 |
C05-238-305 |
| Model |
D3024 |
D1524R |
| Max. Speed |
15000 rpm (200-15000rpm) / Increment : 10 rpm / Accuracy : ±20 rpm |
15000 rpm (200-15000rpm) / Increment : 100 rpm |
| Max. RCF |
21380×g / Increment 10×g |
|
| Temp. Range |
- |
-20 to 40℃ |
| Rotor Capacity |
24×0.2, 0.5, 1.5, 2.0 ml Tube(기본) / 18×5ml / 12×5ml culture tube / 36×0.5ml / 4×PCR8 |
24×1.5, 2.0 ml Tube / 18×5ml / 12×5ml / 36×0.5ml / 4×PCR8 |
| Timer |
30 sec ~ 99 min, Hold(Continuous Operation) |
|
| Driving Motor |
Brushless DC Motor |
|
| Acceleration & Braking Time |
25 sec |
|
| Safety |
Dual Door Interlock, Over Speed Protection, Automatic Internal Diagnosis,
Over Temp. Protection (D3024R only) |
|
| Advance Feature |
Speed /RCF Switch, Short-time Run Function, Sound-alert Function |
|
| Noise Level |
≤64dB |
≤56dB |
| Size / Weight |
w280×d364×h266 mm, 12 Kg |
w332×d553×h283 mm, 30 Kg |
| Power |
220 ~ 240V, 50/60 Hz / 200 W |
220 ~ 240V, 50 Hz / 500 W |
Angle Rotor with Lid, Aluminum Alloy
* Fully Autoclavable ( 121℃, 20min), Explosion-proof (MCA Test), Bio-safe Sealing
| Cat. No |
Model |
용량 |
| C05-238-651 |
AS18-5 |
5ml Round-bottom Tube x 18개 |
| C05-238-655 |
AS12-V5 |
5ml Eppendorf Tube x 12개 |
| C05-238-659 |
AS24-2 |
1.5/2.0ml x 24개 / 0.2ml or 0.5ml x 24개 (w/Adapter) |
| C05-238-663 |
AS36-05 |
0.5ml x 36개 / 0.2ml x 36개 (w/Adapter) |
| C05-238-667 |
AS4-PCR8 |
PCR8 x 4개 |
Optional Adapter for Rotor
| Cat. No |
Model |
Type |
적용 Rotor |
| C05-238-615 |
A02P2 |
0.2 ml Tube용 Adapter, 24/set |
AS24-2 |
| C05-238-619 |
A05P2 |
0.5 ml Tube용 Adapter, 24/set |
AS24-2 |
| C05-238-671 |
A02P05 |
0.2ml Tube용 Adapter, 36/set |
AS36-05 |
