■ Tested According to lEC/EN61010-1
■ Plastic Rotor (A12-2P) Kit 포함
■ Noise Level 54dB 이하의 저소음 설계
■ 가속과 감속이 빨라 작업이 효율적임
■ Brushless Motor를 사용, 빠르고 효과적으로 설정 속도에 도달
■ Speed와 RCF가 Digital로 Display 되어짐
■ Angle Rotor : 12×0.2 / 0.5 / 1.5 / 2.0 ml Tube
■ Marked with CE, cTUVus and FCC & MCA Test (lEC/EN61010-2-20)
■ DLAB
|
|
|
|
| Cat. No |
Model |
Max. Speed |
Max. Rcf |
| --- |
--- |
--- |
--- |
| C05-238-201 |

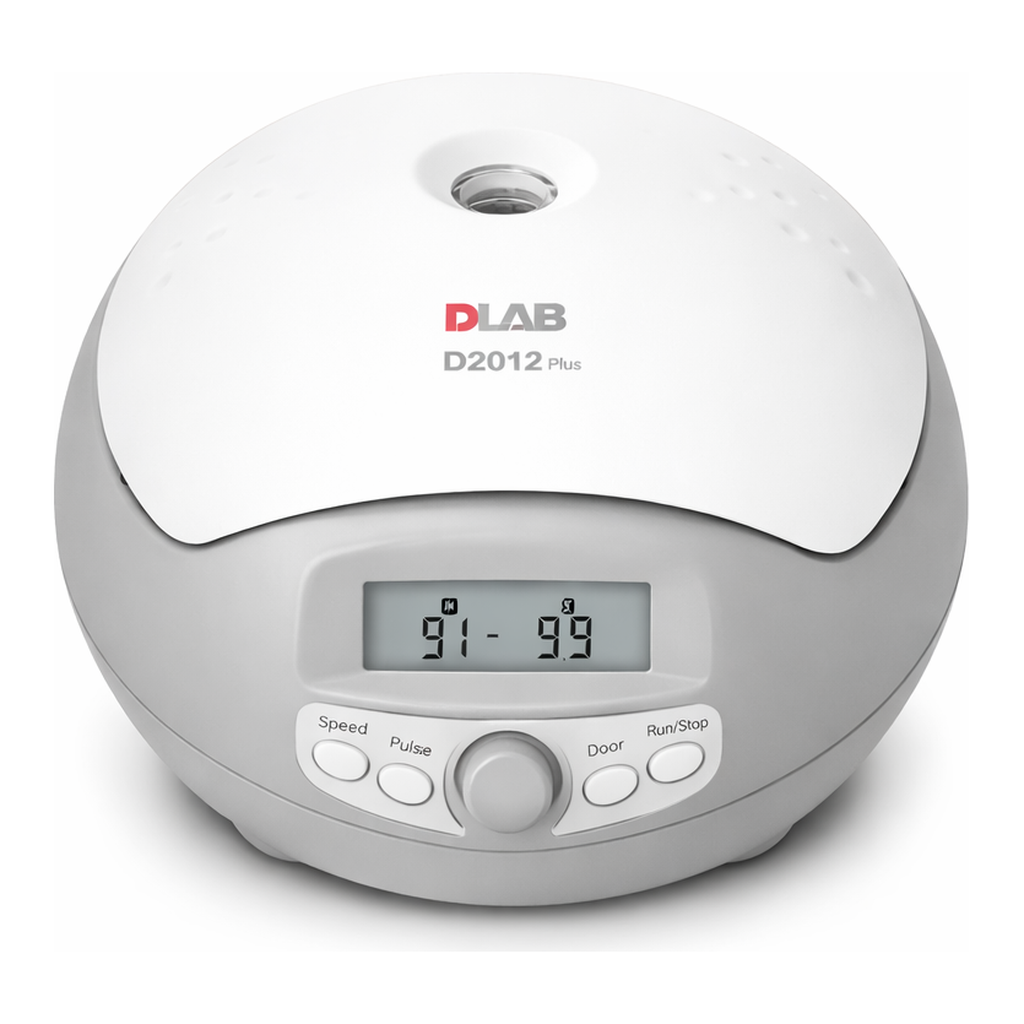

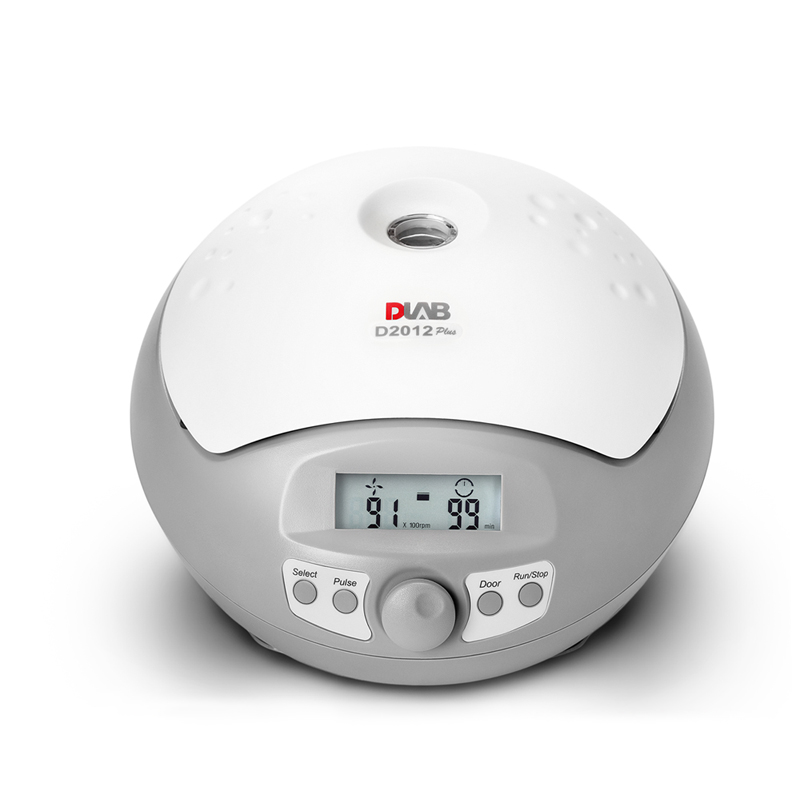

D2012 Plus |
15000 rpm |
15100×g |
Specitication : ±20 rpm
| Cat. No. |
C05-238-201 |
| Model |
D2012 Plus |
| Max. Speed |
500 - 15000 rpm / Increment : 100 rpm / Accuracy |
| Max. RCF |
15100×g / Increment 100×g |
| Rotor Capacity |
12 × 0.2/0.5/1.5/2.0 ml Tube ( Optional Adapter for 0.2/0.5ml ) |
| Timer |
30 sec ~ 99 min, Hold(Continuous Operation) |
| Driving Motor |
Brushless DC Motor |
| Acceleration & Braking |
11sec / 9 sec |
| Safety |
Door Interlock, Over Speed Protection,
Over Temp. Protection, Automatic Internal Diagnosis |
| Advance Feature |
Speed/RCF Switch, Short-time Run Function, Sound-alert Function |
| Size / Weight |
w255×d245×h140 mm, 6 Kg |
| Power |
AC 110 ~ 240V, 50/60 Hz, 100 W |
Optional & Spare Accessory
| Cat. No |
Model |
Description |
| C05-238-611 |
A12-2P |
Plastic Rotor Kit w/Lid, 12×2.0 ml Tube |
| C05-238-615 |
A02P2 |
0.2 ml Tube용 Adapter Set (24개) |
| C05-238-619 |
A05P2 |
0.5 ml Tube용 Adapter Set (24개) |
