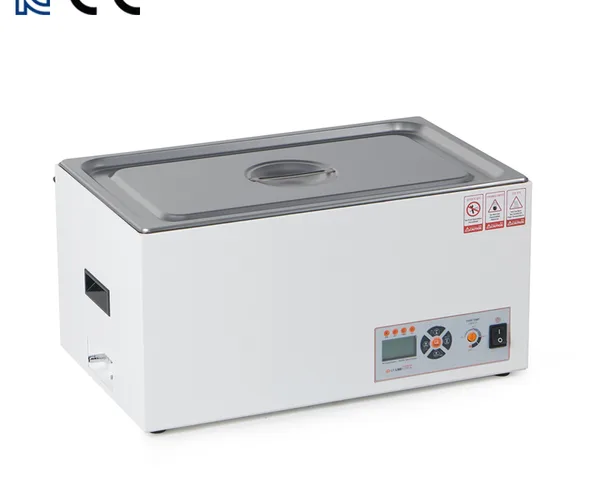

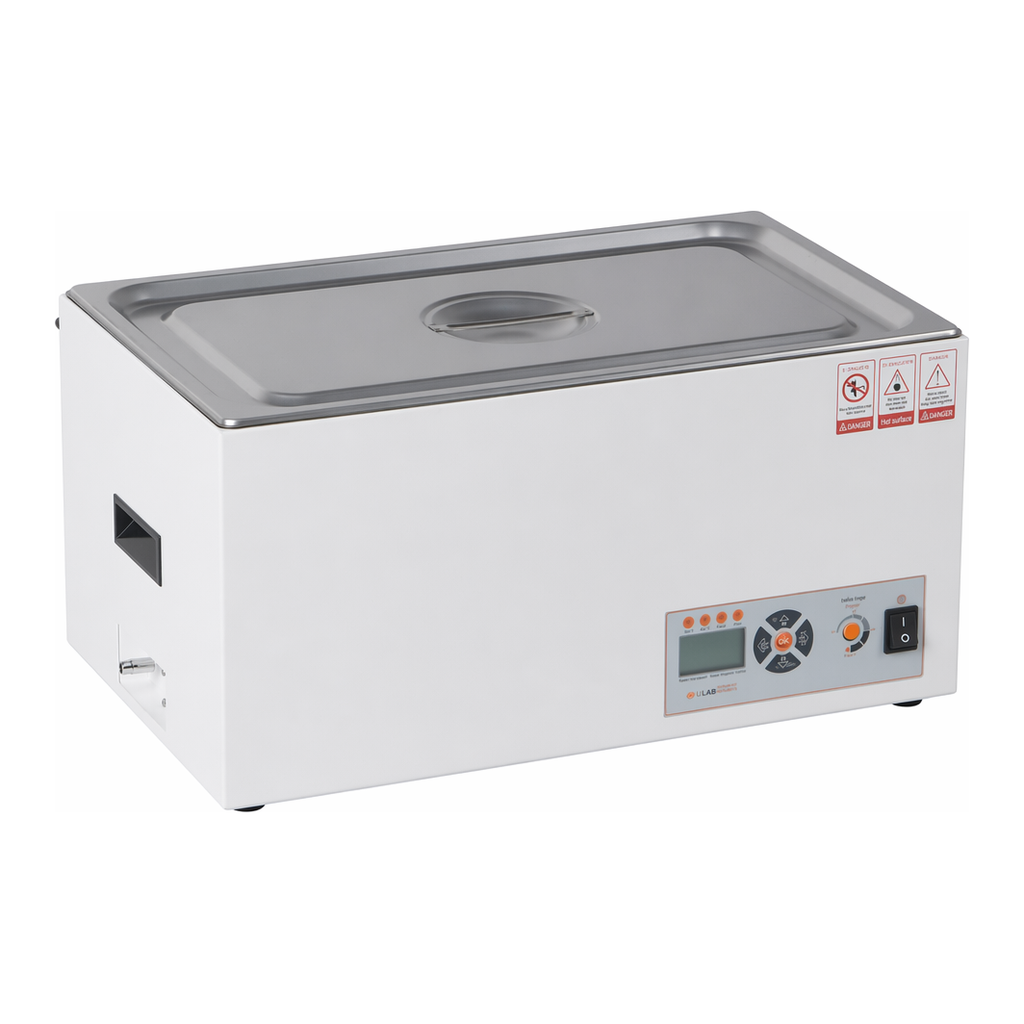

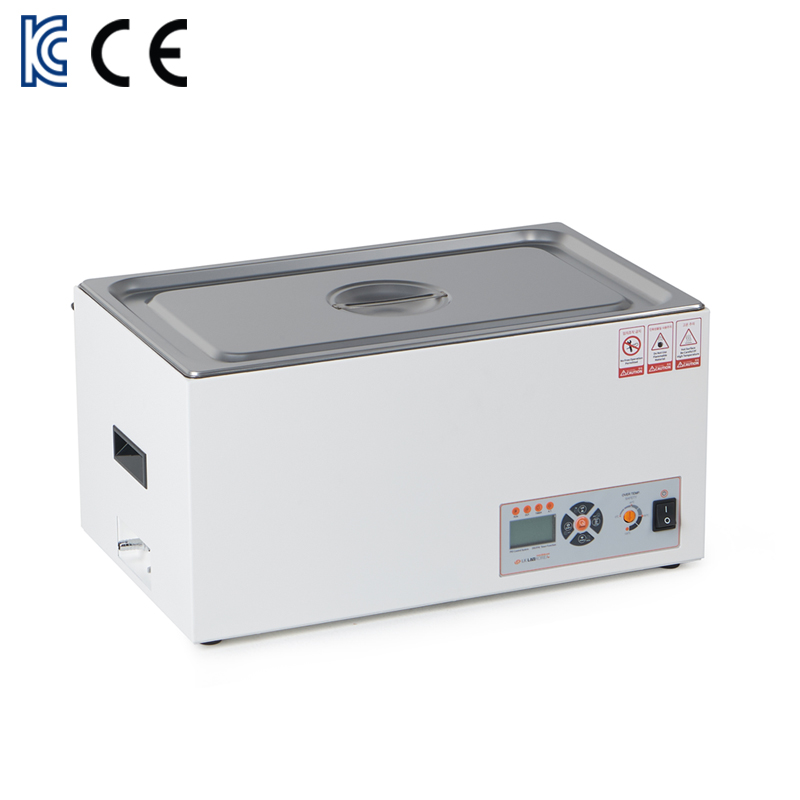

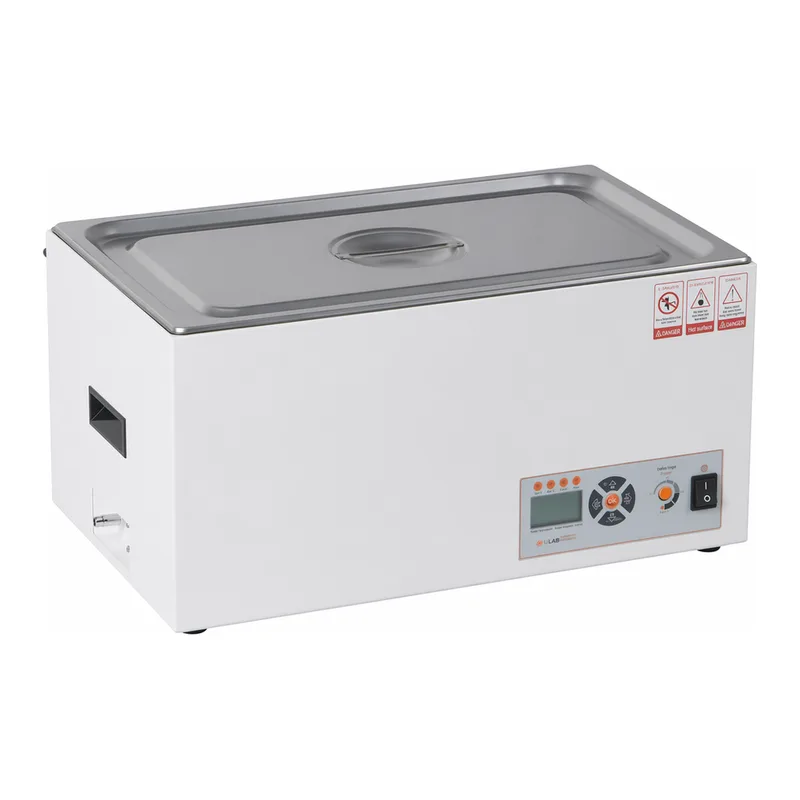

■ PID 제어 방식으로 정확한 온도 제어 가능
■ 0.01℃ 온도 표시
■ 외부 센서 및 RS485 PC 통신용 포트 기본 장착
■ Seamless Stainless Steel Bath 사용
■ Bath 내부 용액을 편리하게 배출 시킬 수 있는 Drain 장착 (LB-WD522)
■ PC cover를 사용하여 편리하게 내부를 관찰 할 수 있음 (option, LB-WD316 제외)
■ Graphic LCD Display, 간편하고 직관적인 Controller 조작
■ Auto-tuning 기능 및 온도 Calibration 기능
■ 2 가지 타입의 타이머. 구동과 동시에 시작, 목표 온도 도달 후 시작
■ Automatical Fault Sensing System 기기 스스로 이상 상황을 감시 (특허 등록)
■ 2중화 과온 안전장치, 1차 Controller 과온 Alarm과 2차 과온 차단 회로
■ PL Insurance (제조물 배상 책임 보험)
■ Validation Service (IQ,OQ, PQ)
■ LK Labkorea
■ (주)엘케이랩코리아 제작품 제품문의 : 031-573-4952(내선 1703) / 070-4282-1452 / fac@lklab.com
|
|
|
|
Cat. No. |
Model |
Type |
Capacity |
--- |
--- |
--- |
--- |
B04-02-050 |
LB-WD316 |
PID Control |
6 L |
B04-02-100 |
LB-WD321 |
11 L |
|
B04-02-150 |
LB-WD522 |
22 L |
|
|
|
|
|
|
Cat. No. |
|
B04-02-050 |
B04-02-100 |
B04-02-150 |
--- |
--- |
--- |
--- |
--- |
Model |
|
LB-WD316 |
LB-WD321 |
LB-WD522 |
--- |
--- |
--- |
--- |
--- |
Capacity |
|
6 L |
11 L |
22 L |
Controller |
Control |
PID Control, Auto-tuning |
|
|
Display |
GLCD (Graphic LCD) |
|
|
|
Resolution |
0.01℃ |
|
|
|
Timer |
Run Start / Wait start (99 hr 59 min) |
|
|
|
Temperature |
Range |
Ambient +10 to +100℃ |
|
|
Accuracy at 50℃ |
±0.3℃ |
|
|
|
Uniformity at 50℃ |
±1.12℃ |
±1.42℃ |
±1.84℃ |
|
Size |
Interior |
w300×d155×h150 mm |
w300×d240×h150 mm |
w500×d295×h150 mm |
Exterior |
w325×d180×h260 mm |
w325×d265×h260 mm |
w535×d330×h260 mm |
|
Material |
Interior |
Stainless Steel 304 |
|
|
Exterior |
Powder Coated Steel |
|
|
|
Electric Supply |
Power |
1 Phase, 220 VAC, 50/60 Hz |
|
|
Max Consumption |
800 W (3.6 A) |
1 kW (4.6 A) |
2 kW (9.1 A) |
|
Power Line |
Standard Plug |
|
|
|
Other |
Drain |
N/A |
|
1/4” Hose Nipple Male |
Safety |
|
Over Temp. & Current Protection, Automatical Fault Sensing System |
|
|
Validation Service
Cat. No. |
Model |
Description |
B04-91-999 |
VA-WB100 |
Validation for Digital Water Bath |
● 당사 기본 양식에 따른 IQ/OQ Validation Service 비용이며, 고객 요청에 의하여 비용이 변경될 수 있음
Optional Accessory
Cat. No. |
Model |
Description |
B04-01-085 |
LI-USB |
RS485 to USB Communication Cable |
--- |
--- |
--- |
B04-91-471 |
ET101 |
External Sensor, Pt100, Ø4×L300mm |
--- |
--- |
--- |
H03-03-205 |
SL-HSKIT |
Support Kit |
--- |
--- |
--- |
B04-91-153 |
LB-WDPL11 |
Optional PC cover for 11 L |
--- |
--- |
--- |
B04-91-155 |
LB-WDPL22 |
Optional PC cover for 22L |
--- |
--- |
--- |
