Invitrogen™

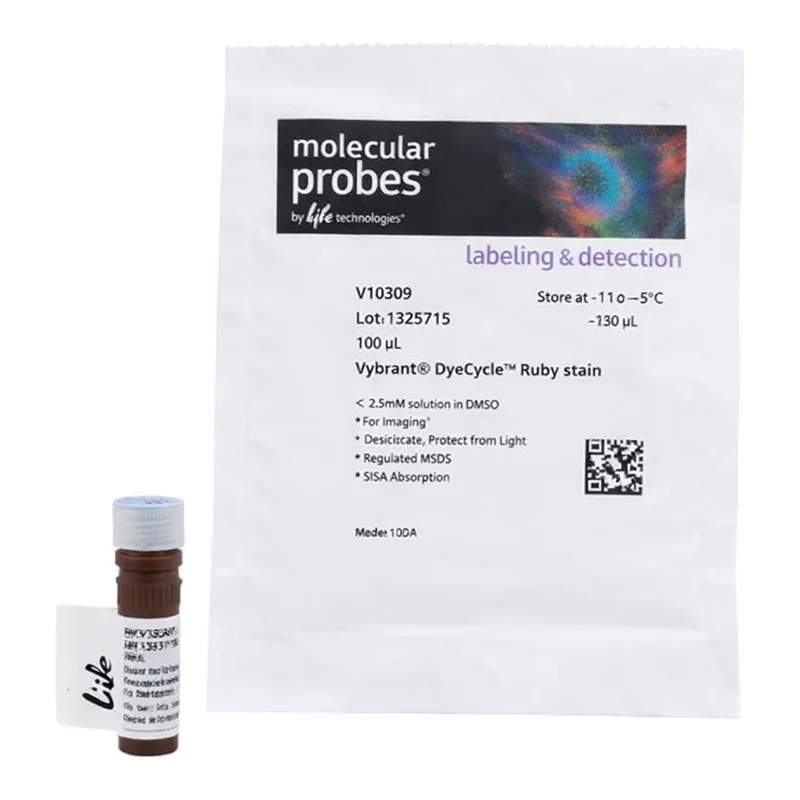

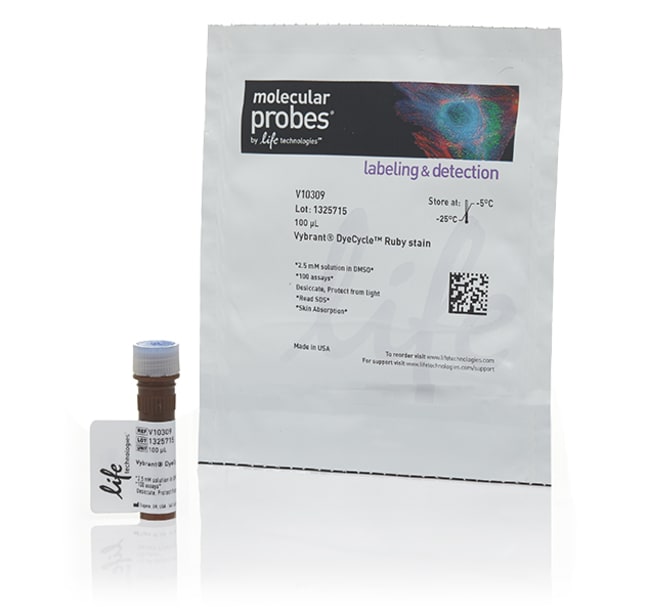

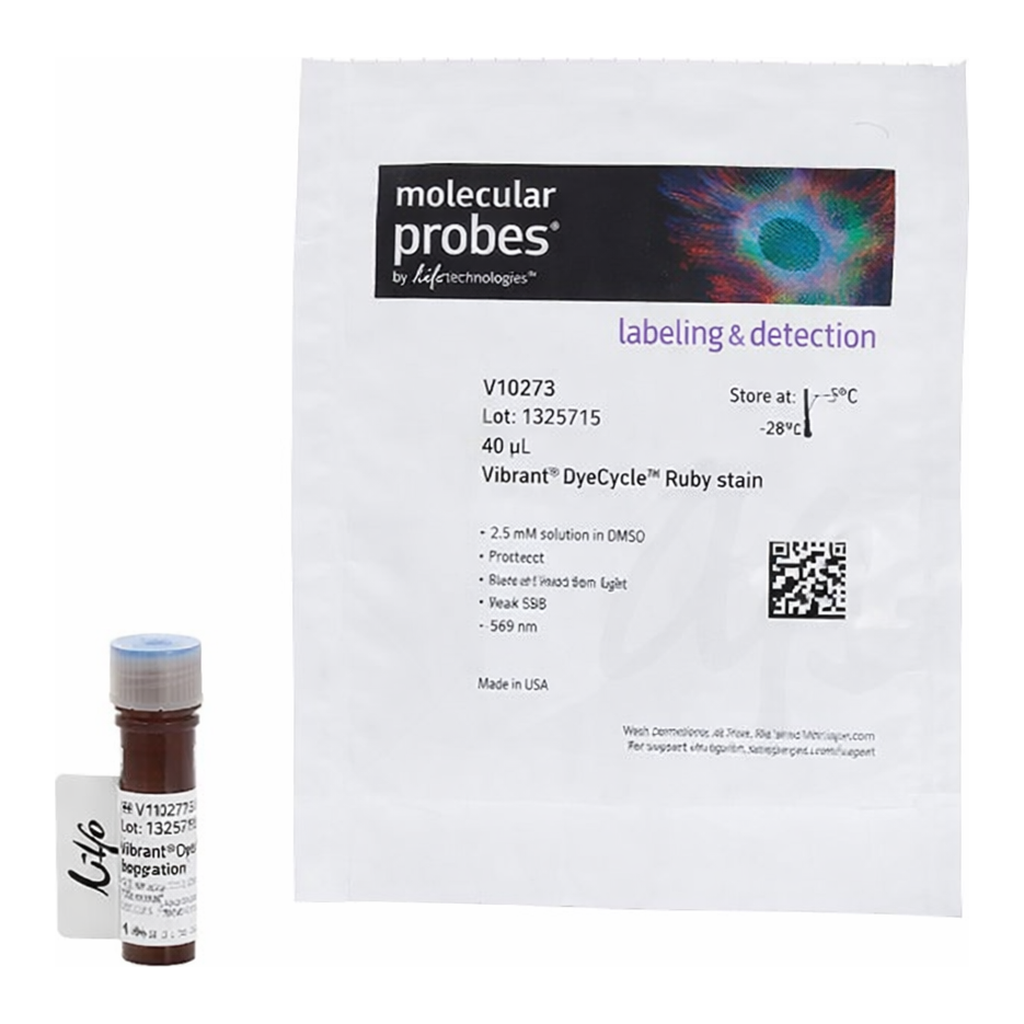

Vybrant™ DyeCycle™ Ruby Stain, 100 reactions

Vybrant® DyeCycle™ Ruby Stain is a cell permeable DNA dye that can be used for cell cycle analysis on a자세히 알아보기

Vybrant® DyeCycle™ Ruby Stain is a cell permeable DNA dye that can be used for cell cycle analysis on a 488 nm or 635 nm red diode laser.

• Precise—accurate cell cycle analysis in living cells

• Safe—low cytotoxicity for cell sorting and additional live cell experiments

• Minimal compensation—easier multiplexing

• Simple, robust staining protocol

View a selection guide for all products related to cell cycle analysis of fixed and live cells in flow cytometry.

Precise

Successful cell cycle analysis requires a dye that is DNA selective and can stain cells in a homogeneous pattern minimizing fluorescence variability. The Vybrant® DyeCycle™ Ruby Stain is an ideal tool for DNA content analysis in living cells since the stain is cell permeable and, after binding double-stranded DNA, emits a fluorescent signal that is proportional to the DNA mass (see figure).

Low Cytotoxicity

Unlike stains that require high concentrations or have chemical structures that are toxic to cells, Vybrant® DyeCycle™ Ruby Stain exhibits relatively low cytotoxicity, allowing the possibility of sorting based on the phase of the cell cycle.

Minimal Compensation

Well-suited for the popular red 633 nm laser line, the Vybrant® DyeCycle™ Ruby Stain/DNA complex has fluorescence excitation and emission maxima of 638/686 nm, respectively (see figure). The spectral characteristics allow use of the red laser for cell cycle analysis and frees up other channels for additional parameters.

The red excitation and narrow emission of Vybrant® DyeCycle™ Ruby Stain make it ideal for multiplexing due to the limited spectral overlap with other common dyes (Alexa Fluor® 488, FITC, and RPE) and fluorescent proteins (Green Fluorescent Protein (GFP)).

Simple, Robust Staining Protocol

For cell analysis, simply prepare flow cytometry tubes containing 0.5 mL of cells suspended in complete media at a concentration of 5 × 105 cells/mL. To each tube, add 1 μL of Vybrant® DyeCycle™ Ruby Stain and mix well. Final stain concentration is 5 μM. Incubate at 37°C for 15–30 minutes, protected from light. Analyze without washing cells on a flow cytometer using 488 nm or 633/5 nm excitation and >670 nm emission.

사양

검출 방법Fluorescence

용도 (장비)Flow Cytometer

제품 유형Stain

염료 유형Vybrant™ DyeCycle™ Ruby

방출near IR

형태Solution

형식Tube(s)

제품라인DyeCycle™, Molecular Probes™

수량100 assays

배송 조건Room Temperature

용해도DMSO (Dimethylsulfoxide)

세포하위구조 국지화Nucleic Acids

Unit Size100 assays
