Thermo Scientific™

2D Labtainer™ BioProcess Container (BPC), ASI™ 26/77 film, 3 ports, MPX insert, Luer Lock, Ladish Tri-Clover

The 50 L Thermo Scientific™ BioProcess Container (BPC) 2D System is composed of Thermo Scientific™ ASI™ 26/77 Polyethylene Film, a자세히 알아보기

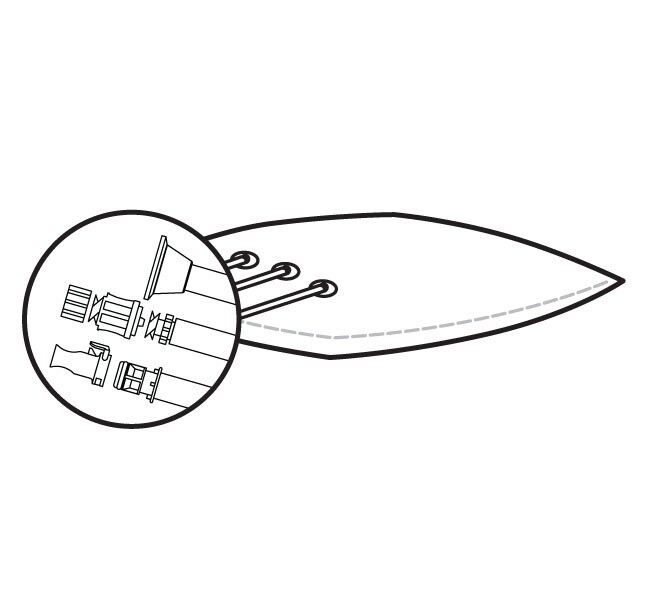

The 50 L Thermo Scientific™ BioProcess Container (BPC) 2D System is composed of Thermo Scientific™ ASI™ 26/77 Polyethylene Film, a single-web, multi-layer 12.5 mL film. This BPC includes 3 ports (1 MPX insert + cap, 1 luer lock body connector + valve, 1 Ladish tri-clover).

Features
• Helps to eliminate post-use cleaning steps required with reusable containers, and to reduce cross-contamination risks
• Constructed in an ISO 7 clean room under cGMP conditions

Applications
• Harvesting from, feeding into, and collecting samples from bioreactors and fermenters
• Preparing and storing buffer, culture media, and process liquids
• Collecting chromatography feeds and fractions
• Harvesting, storing, and transporting bulk drug product and drug precursors

Customize standard BPC systems for optimized single-use technology
Choose from the industry`s largest component library, with over 2,000 unique components that include:
• Fittings—straight, reducing, elbow, T-style, X-style, cross-style
• Connectors—quick connectors/disconnectors, aseptic connectors and disconnectors, steam-to and steam-through connectors
• Filters (used for bioburden reduction )—sterilization grade filters, vent filters
• Tubing—thermoplastic elastomers, platinum-cured silicone
• Sample ports—septum-style ports, needle-free ports
• Clamps—sliders, pinch clamps, crimp bands

BPC port specifications:
• Line 1: MPX insert with 12.7 mm (1/2 in.) barb + cap, pinch clamp. Tubing: C-Flex 374, length: 152.4 cm (60 in.), ID x OD: 12.7 x 19.1 mm (0.5 x 0.75 in.)
• Line 2: Luer lock body connection with 4.1 mm (5/32 in.) barb + cap, pinch clamp. Tubing: C-Flex 374, length: 101.6 cm (40 in.), ID x OD: 3.2 x 19.1 mm (0.13 x 0.75 in.)
• Line 3: Ladish tri-clover with 12.7 mm (1/2 in.) barb, pinch clamp. Tubing: C-Flex 374, length: 152.4 cm (60 in.), ID x OD: 12.7 x 19.1 mm (0.5 x 0.75 in.)

사양

용량(미터법)50 L

물질Polyethylene

치수95.3 cm x 54.6 cm (37.5 in. x 21.5 in.)

외부 포장4 mil. poly bag, One 4-mil. poly bag

보호용 내부 포장Poly bags on tubing ends, protective material around rough areas

수량5 per case

용도(장비)TK-0050-05

멸균 방법Irradiated

배송 조건Room Temperature

제품라인Labtainer™

Port DetailMPX insert + cap, luer lock body connector, and ladish tri-clovers

Film DescriptionASI 26/77

Tubing StyleC-Flex

Unit Size50 L
