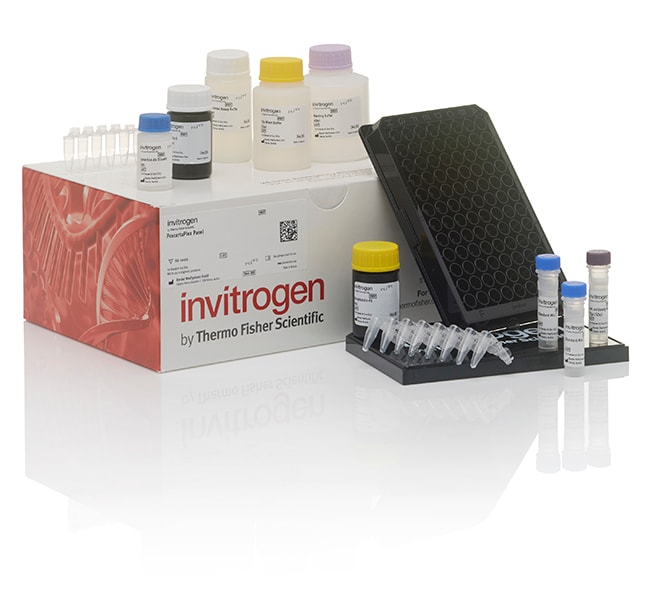

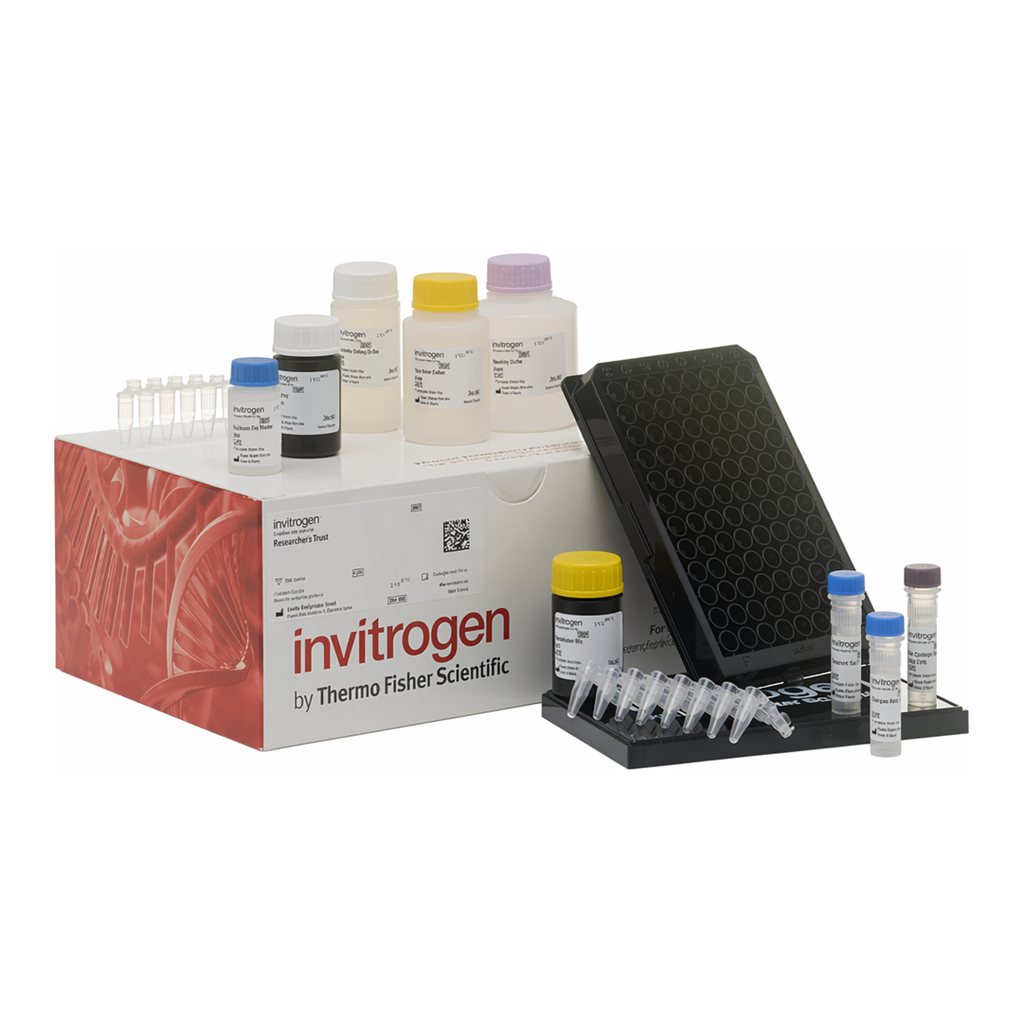

Thermo Fisher Scientific ProcartaPlex Human Immuno-Oncology Checkpoint Panel 1, 14plex

Invitrogen™ ProcartaPlex™ Human Immuno-Oncology Checkpoint Panel 1, 14plex

The ProcartaPlex Human Immuno-Oncology Checkpoint Panel 1, 14plex enables cancer research by analyzing 14 protein targets using Luminex xMAP technology.
This panel allows simultaneous detection of soluble proteins that regulate T cell activity, contributing to either T cell exhaustion or stimulation, thereby modulating antitumor immune responses.
Analysis of these biomarkers helps elucidate pathway biology and complements other panels:

• Human Immuno-Oncology Checkpoint Panel 2, 14plex (Cat. No. EPX140-15815-901)
• Human Immuno-Oncology Checkpoint Panel 3, 9plex (Cat. No. EPX090-15820-901)

ProcartaPlex preconfigured panels are extensively tested for analyte combinability, interference, and cross-reactivity to ensure high validation and precision. All panels include necessary reagents for assay performance.

Target List [Bead Region]

Immune Stimulatory

• CD27 [27]
• CD28 [15]
• CD137 (4-1BB) [26]
• GITR [57]
• HVEM [36]

Immune Inhibitory

• BTLA [52]
• CD80 [61]
• CD152 (CTLA4) [33]
• IDO [46]
• LAG-3 [47]
• PD-1 [65]
• PD-L1 [66]
• PD-L2 [67]
• TIM-3 [14]

About ProcartaPlex Assays for the Luminex Platform

ProcartaPlex immunoassays use a sandwich ELISA principle with two specific antibodies binding distinct epitopes of each protein target.
Assays require only 25 μL of plasma or serum, or 50 μL of cell culture supernatant, and yield analyzed results within four hours.

Key Features

• Reproducible, reliable results — validated for combinability and cross-reactivity
• More results per sample — simultaneous measurement of multiple targets in a single 25–50 μL sample
• Well-established Luminex technology — trusted multiplexing platform for protein detection and quantitation

ProcartaPlex assays utilize Luminex xMAP technology for simultaneous detection and quantitation of up to 80 protein targets in a single sample.
Each bead is dyed with precise proportions of red and infrared fluorophores, creating unique spectral signatures recognized by Luminex systems (e.g., Luminex 200, FLEXMAP 3D, MAGPIX).
Matched antibody pairs identify target proteins, using biotinylated antibodies and streptavidin–R-phycoerythrin (RPE) for detection.
Unlike traditional ELISA, capture antibodies are conjugated to beads rather than adsorbed to microplate wells, allowing free-floating reagents for enhanced reaction efficiency.
