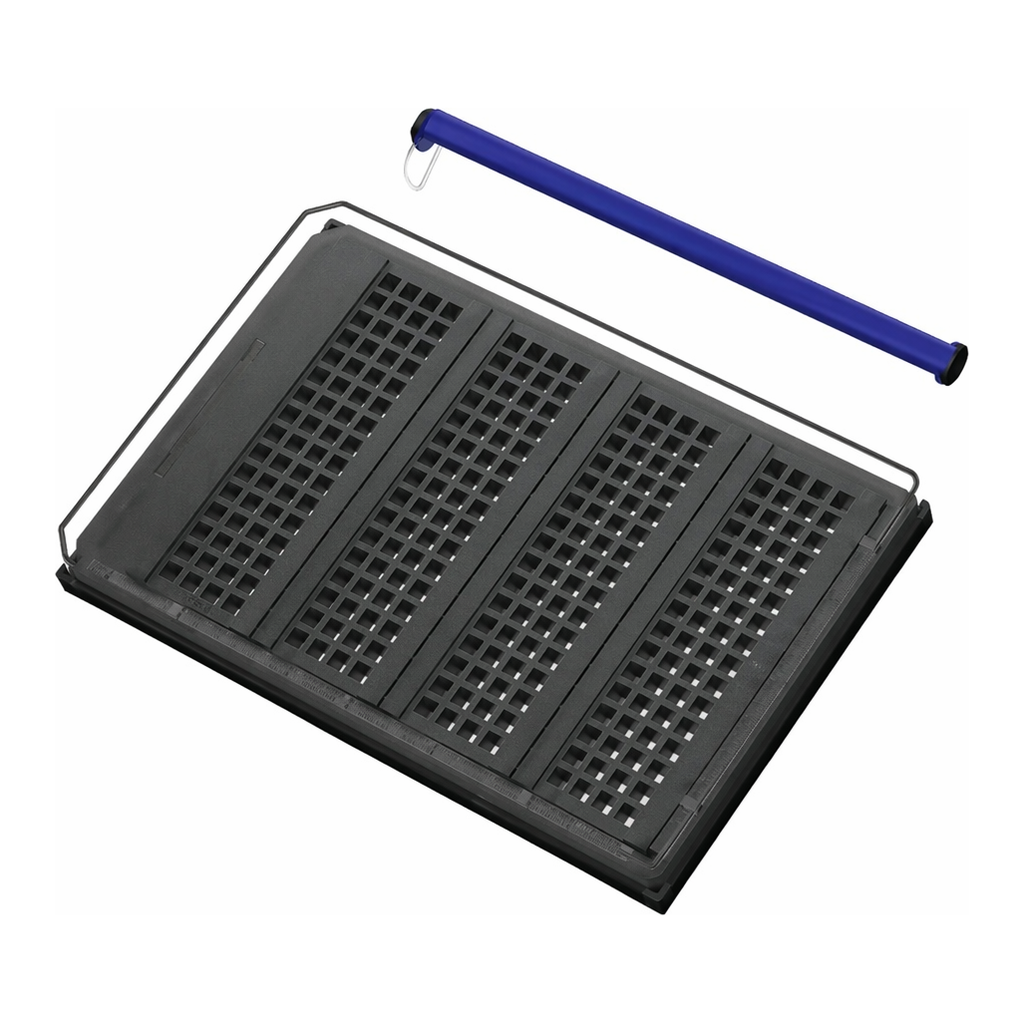

Grace Bio-Labs ProPlate® tray sets

size 64 wells, with Delrin® snap clips

material

black
silicone (on Delrin)
square wells

무균

non-sterile

manufacturer/tradename

Grace Bio-Labs 247865

크기

64 wells

well area

0.13 cm2

웰 용적

350 μL

색상

none

Grace Bio-Labs ProPlate® multi-array chamber tray sets are designed to be used with ONCYTE® nitrocellulose-coated slides. These multi-array chambers integrate microscope slide based microarray technology with high-throughput (HTS applications) microtiter plate processing. Up to 64 individual arrays can be assayed per slide.

Three or four slides fit into a tray (depending on clip choice). The resulting multi-array chamber tray set produces a modular plate with a standard microtiter plate footprint and well spacing allowing high-throughput robotic processing of up to 256 arrays.

Features:

• Up to 16 or 64 leak-proof wells on any slide surface without the use of adhesive
• Microtiter plate well spacing facilitates use with multichannel pipettes
• 7 x 7 mm square wells are ideal for high content arrays 5-350 uL well volumes accommodate small reagent and large wash volumes

16 or 64 well ProPlate® tray sets include the following:

• 7 x 7 mm well dimensions (x 4)
• 16 or 64 well capacity
• Stainless steel Delrin® snap clips (x 8)
• Tray & cover included (x 1)
• 10 seal strips (x 10) and 1 seal strip applicator (x 1)
