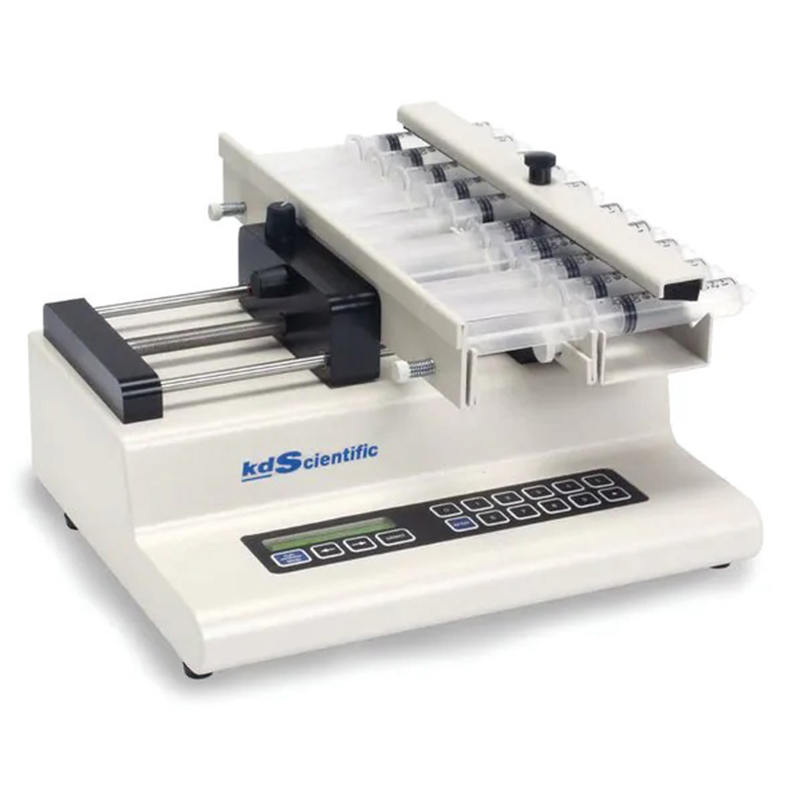

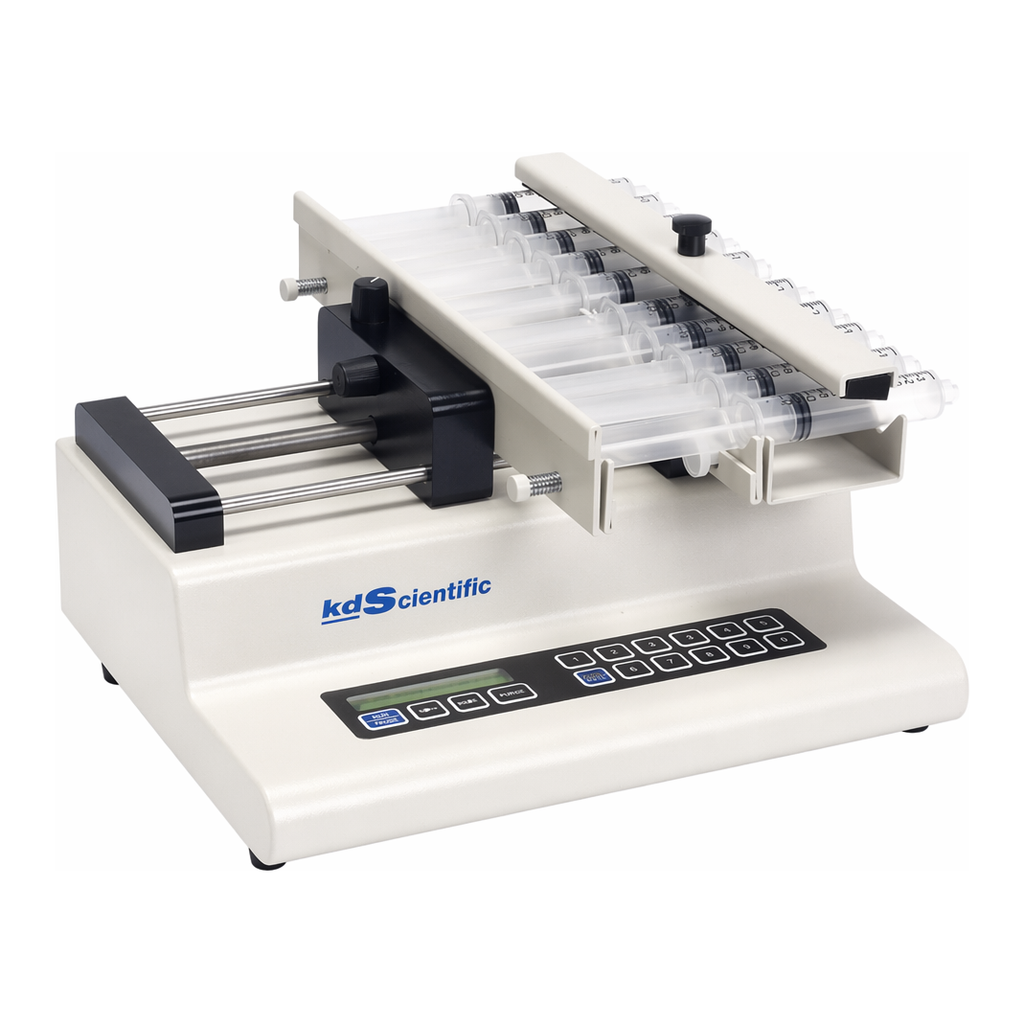

Merck KDS Multi syringe infusion/withdrawal pump series 230

KDS Multi syringe infusion/withdrawal pump series 230

AC/DC input 220 V AC, Schuko plug

특징

CE compliant
4 channels

manufacturer/tradename

KD Scientific 789230-220V

용적

0.01-10 mL

적합성

suitable for multiple injections

Ideal for applications requiring multiple syringes, the KDS230 has been modified to hold up to 10 syringes.

• One to ten syringes, 10 μL - 10 mL
• One to six syringes, 20 mL - 60 mL
• One to four syringes, 100 mL - 140 mL
• Backlit LCD display
• Knob locks/unlocks drive block for effortless, drag-free adjustment
• Simple menu-driven setups
• Preset volume control and automatic shut-off and stall detection
• Settings can be reviewed or changed during operation
• Choice of unit selection
• Last settings stored in permanent memory
• Built-in RS-232C interface for computer daisy chaining up to 100 pumps
• TTL interface for foot switch, timer, relay control, outputs for run indicator, valve control
• Independent rate and volume settings for infusion and withdrawal
• Multiple mode selection
