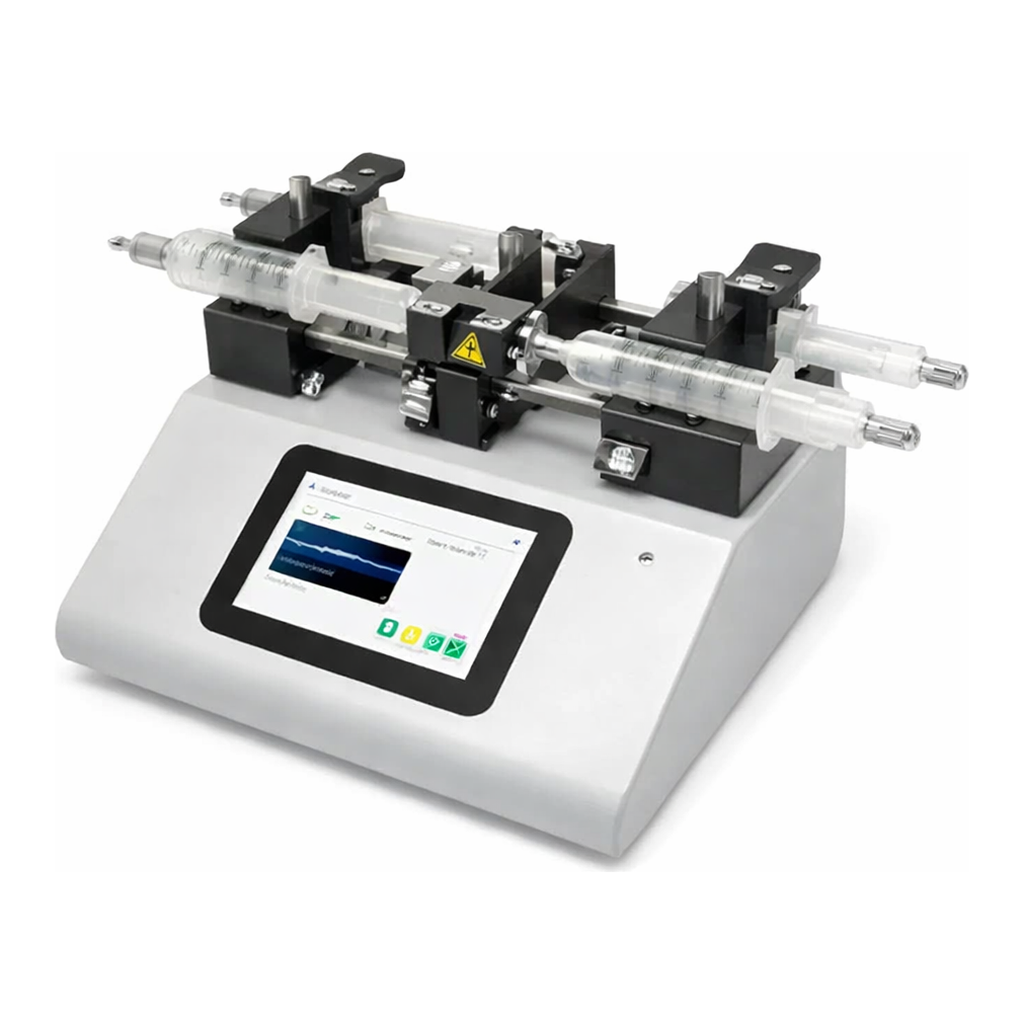

Merck KDS Legato 270 series syringe pump, push/pull

KDS Legato™ 270 series syringe pump, push/pull

AC/DC input 100 - 240 V AC, UK plug (3-pin)

특징

CE compliant
accuracy± 0.35%
2 channels

manufacturer/tradename

KD Scientific 788270

파라미터

-10-70 °C temp. limit (storage)
4-40 °C temp. limit (operating)

크기

8.89 cm × 25.4 cm × 27.94 cm

용적

0.0005-140 mL

중량

4.9 kg (10.75 lb)

Push/pull syringe pump. Accomodates two syringes for infusion and two syringes for withdrawal. This model supports infusion and withdrawal simultaneously at user defined flow rates and with selectable target volumes to control the total volume pumped.

It also supports infuse only, withdraw only, infuse/withdraw/ withdraw/infuse and continuous mode. user defined flow rates with selectable target volumes.

Features:

• Holds four syringe from 0.5 μL to 140 mL
• High resolution color touch screen
• Real time clock
• Unparallel ease of use
• Touch pad lock feature
• LED light on front panel
• Full metal chassis
• Built in syringe table
• Up to 75 lbs linear force
• Advanced microstepping techniques
• Built in RS485 interface
• USB port
• I/O & TTL interface
• Continuous mode of operation
• Spill dam
