Merck Hamilton Microlab 625 advanced dual syringe diluter

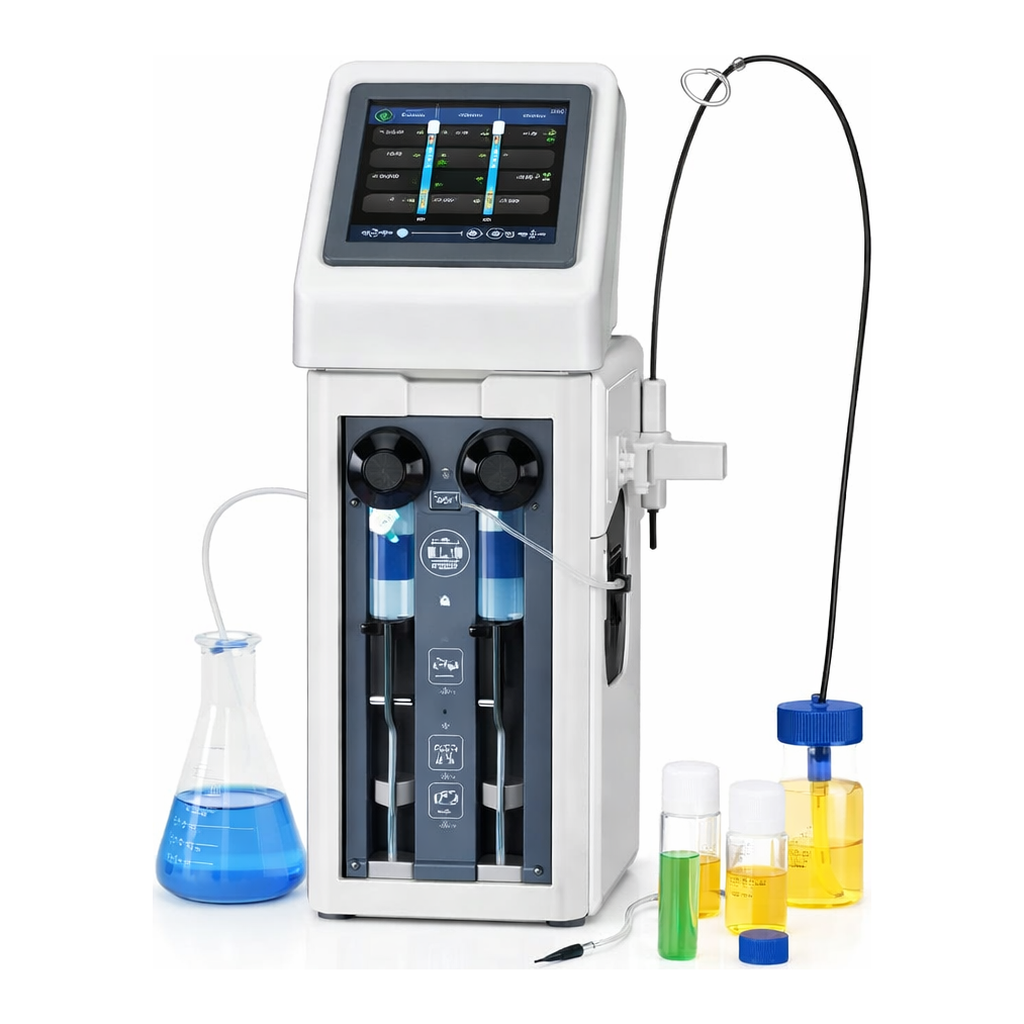

Hamilton® Microlab® 625 advanced dual syringe diluter

AC/DC input 100 - 240 V AC, Schuko plug

AC/DC input

(24 VDC, 2.5 A)

특징

Communication Type: Ethernet, 10/100 BASE-T
Program Memory: 2 GB (with advanced upgrade)
Screen Mounting Options: On top of the syringe pump, bench top or wall mounted
Screen Resolution: 640 (H) x 480 (V) pixels
Screen Tilt Positions: Five positions from 90° to flat
Stepper motor driven high precision lead screw with encoder

manufacturer/tradename

Hamilton ML625-DIL

스크린 크기

5.7 in. (15 cm) , diagonal

크기

2.25 in. (57.2 mm) × 6.5 in. (165.1 mm) × 7 in. (177.8 mm), in down position

용적

1 mL

중량

1.9 lb (0.86 kg)

Semi-automated Liquid Handling A simple touch of the hand probe button or a tap of the foot switch actuates the precision syringe drives to fill or dispense a desired volume of fluid.

Microlab 600 diluters and dispensers are precision fluid measuring instruments based on Hamilton′s world-renowned syringe technology. The semi-automated instruments use positive displacement to achieve highly accurate and precise fluid aspirations and dispenses.

The Dispenser includes one 250 μL, Model 1725 BFP SYR, instrument syringe (59000-25) and one 2.5 mL, Model 1002 BFP SYR, instrument syringe (59000-40). Additional syringe sizes are available. See the Related products tab for listings.

To request more information or a quote, please contact the Sigma-Aldrich Labware Team.
