Merck Shigemi 5 mm Symmetrical NMR microtube assembly

Shigemi 5 mm Symmetrical NMR microtube assembly

matched with CD3OD, bottom L 12 mm

Shigemi NMR tubes, NMR tubes, NMR sample tubes

material

glass tube

manufacturer/tradename

Shigemi MMS-005J

파라미터

900 MHz frequency

하부 길이

12 mm

외곽 샘플 튜브 길이 × O.D.

180.0 mm × 4.965 mm

외곽 샘플 튜브 O.D.

5 mm

크기

180 mm

튜브 직경

5 mm

튜브 삽입물 길이 × O.D.

190.0 mm × 4.1 mm

Shigemi NMR microtubes offer high precision quality in NMR spectroscopy. The NMR microtubes are made out of a special type of hard glass wtih excellent chemical durability, and are magnetic susceptibility matched to each of the solvents they are identified with.

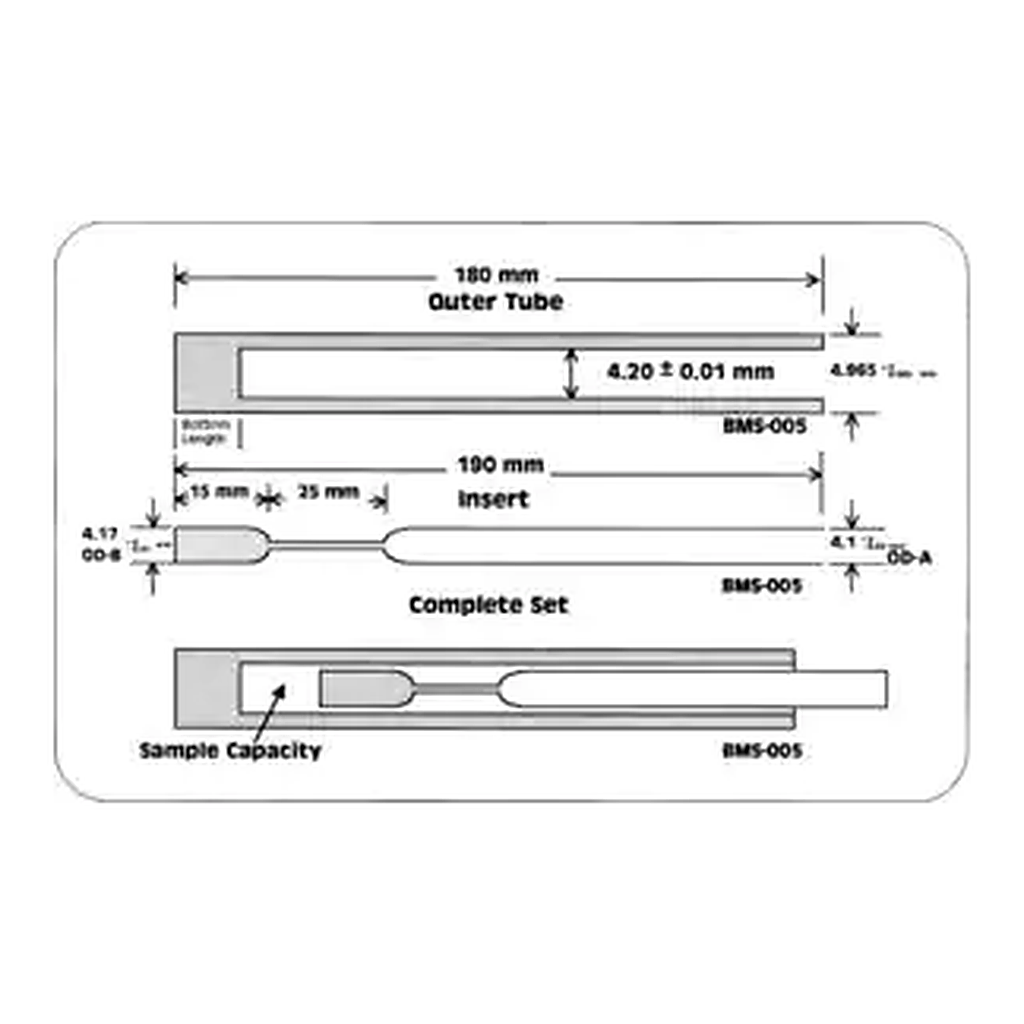

The Symmetrical NMR microtube consists of outer tube and insert with these features:

• Magnetic susceptibility matched to a variety of solvents for the best resolution in these solvents using minimal amount of sample
• The small sample size will not affect the spectral resolution or the sidebands
• Each microtube assembly consists of an insert and an outer sample tube
• Suitable for 900 MHz NMR instruments

Choose a bottom length that most closely matches the probe coil.
