Merck Shigemi Advanced NMR microtube assembly

Shigemi Advanced NMR microtube assembly

matched with DMSO-d6, Shigemi DMS-005TJ, bottom L 12 mm

nmr sample tubes, nmr tubes, Shigemi nmr tubes

material

glass tube

manufacturer/tradename

Shigemi DMS-005TJ

파라미터

900 MHz frequency

하부 길이

12 mm

외곽 샘플 튜브 O.D.

5 mm

크기

190 mm

튜브 직경

5 mm

Shigemi NMR microtubes offer high precision quality in NMR spectroscopy.

The NMR microtubes are made out of a special type of hard glass wtih excellent chemical durability, and are magnetic susceptibility matched to each of the solvents they are identified with.

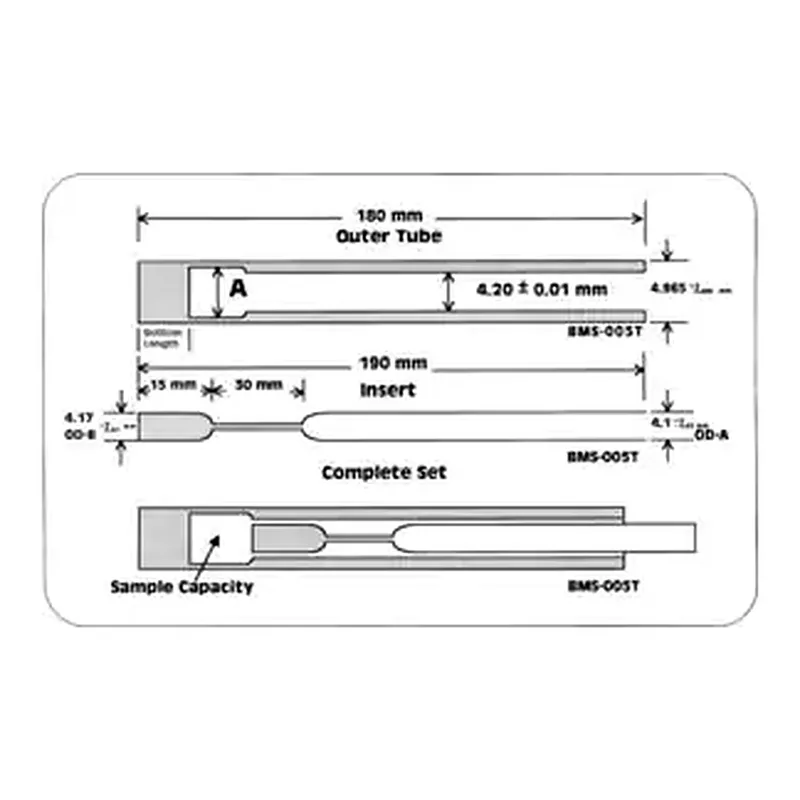

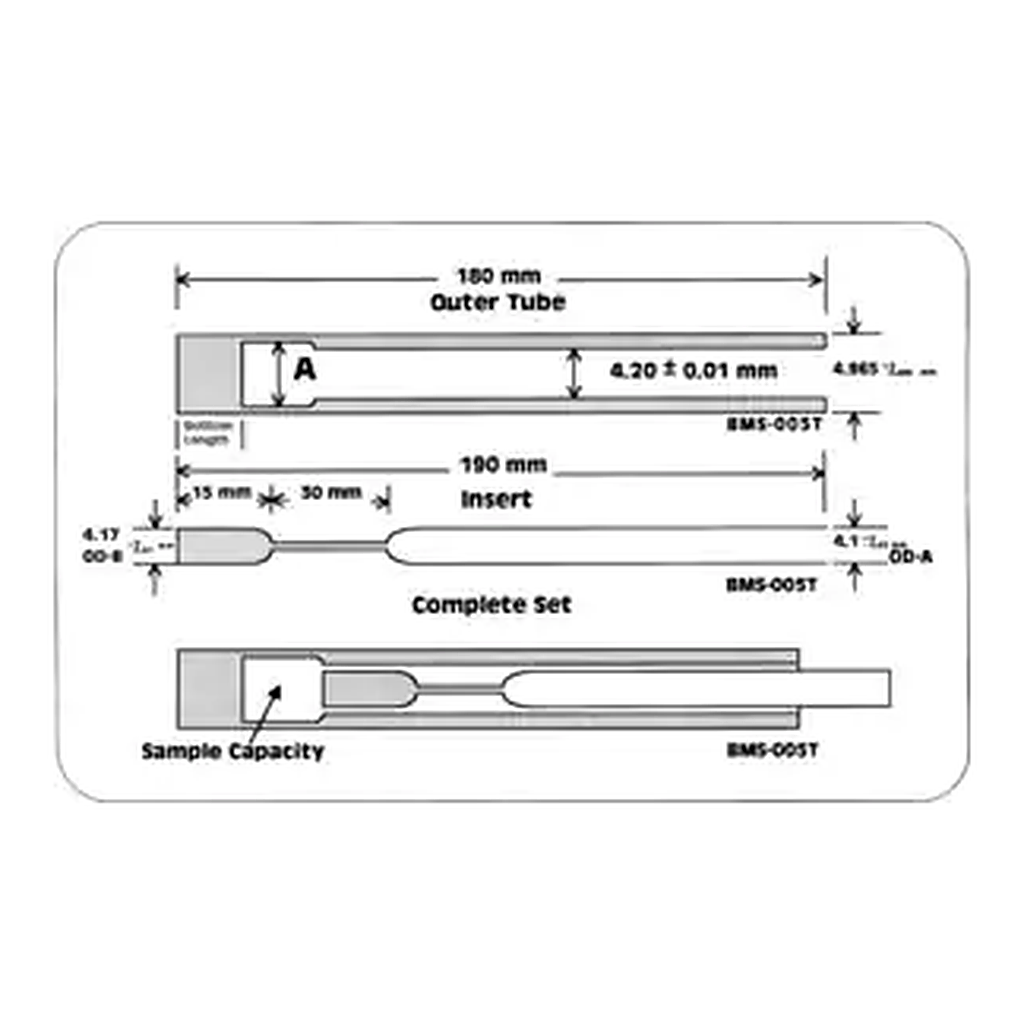

The Advanced NMR microtube consists of outer tube and insert and has increased sensitivity with these improved features:

• Thinner glass wall in the sample area than symmetrical microtube (0.20 mm vs 0.40 mm), increasing the sample capacity held in the RF region by a factor of 1.2
• 16% better signal to noise ratio than symmetric tubes
• Despite the increased sample volume, artifacts caused by the RF inhomogeneity are very limited and increased sensitivity is expected
• Suitable for 900 MHz NMR instruments
• 5 mm O.D. tubes: insert: 190.0 L × 4.1 mm O.D.; outer sample tube: 180.0 × 4.965 mm
• 8 mm O.D. tubes: insert: 200.0 L × 6.9 mm O.D.; outer sample tube: 190.0 × 8.0 mm
