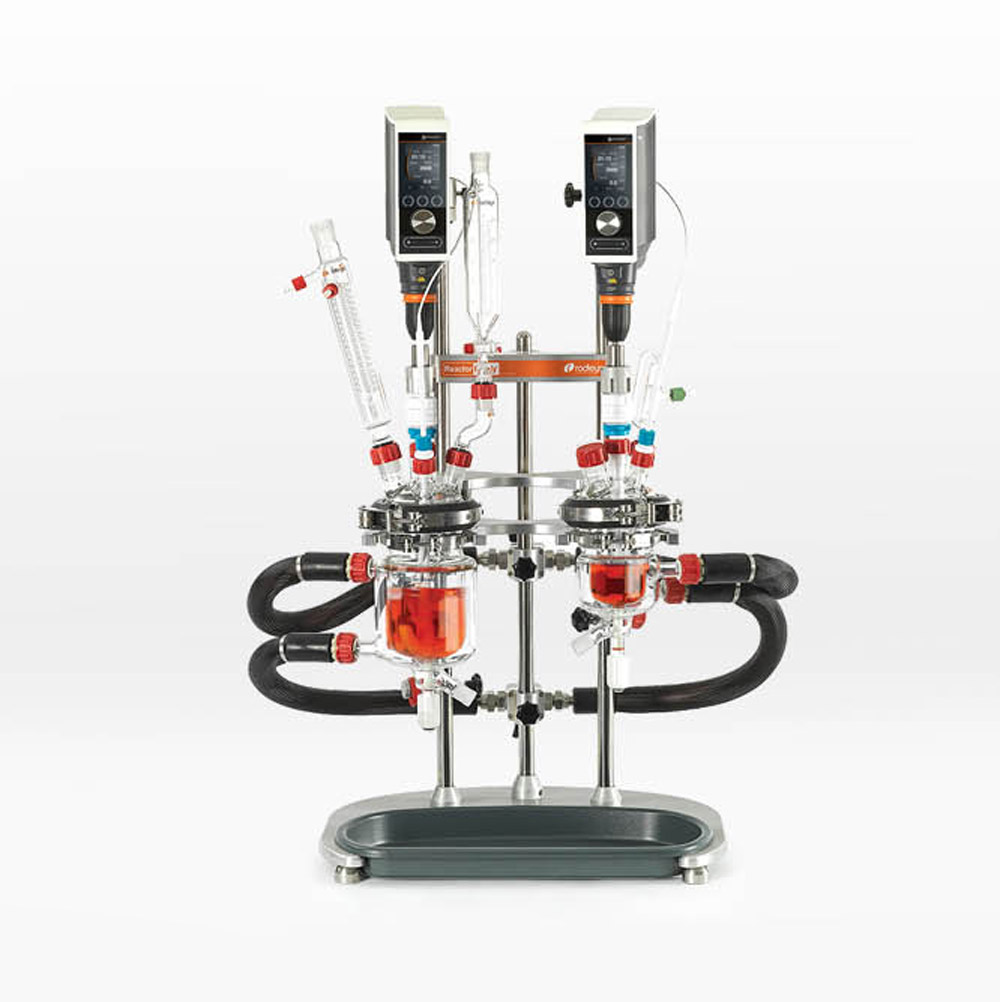

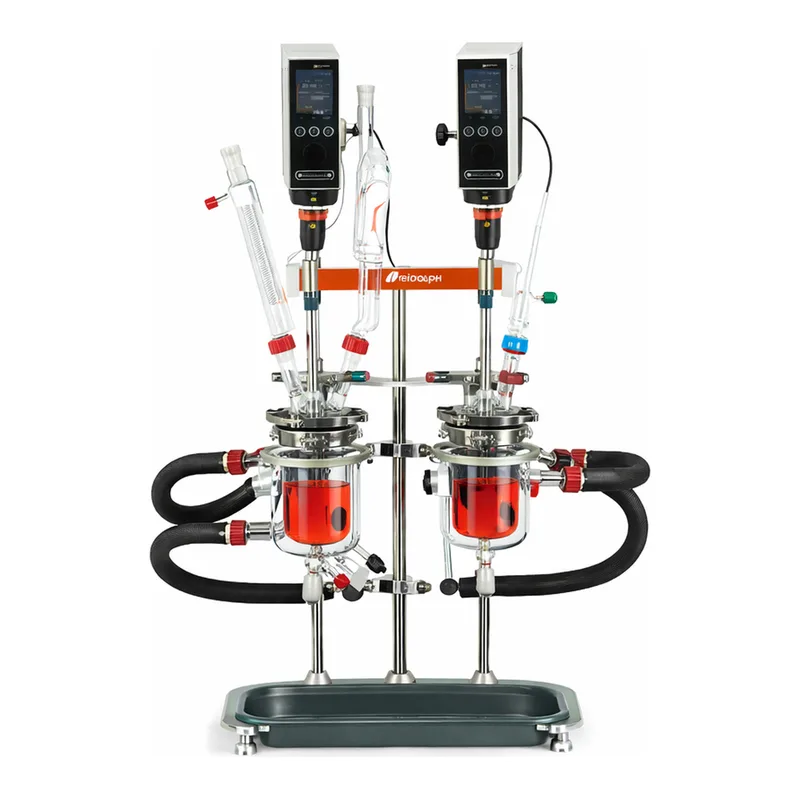

Reactor-Ready Duo Lab Reactor

Reactor-Ready Duo shares the same unique features as Reactor-Ready but holds two independent jacketed glass reaction vessels. The system can be configured to operate with a single thermoregulator controlling the jacket temperature of both vessels simultaneously; or with two thermoregulators controlling the temperature of each vessel independently.

  • Interchangeable

    Rapid exchange of both vessels independently, with quick-release vessel clamp and hose couplings.

  • Flexible

    Choice of manifold kits allow two vessels to run from a single thermoregulator or two separate thermoregulators.

  • Parallel or series

    System accepts two overhead stirrers which can be operated independently.

  • Take control

    Use optional Control Software to control fluid transfer between vessels.

Applications

Duo Icon

Parallel synthesis or reaction optimisation

Use similar or different size vessels and vary stirring speed, stirrer shape and temperature between vessels

2 part reaction icon

Two stage reaction

Transfer reactant from one vessel to the other using vacuum or a pump

Duo Single Reaction

Single reaction vessel

Using the second vessel as either a receiving or feed vessel (where reagents can be pre-heated or pre-cooled prior to addition)

Book an online demo

...it allows us to run reactions in parallel, whereby we use a single circulator to deliver the same temperature to adjacent vessels, allowing us to easily vary other key experimental parameters.Associate Professor, Stefan Bon, Department of Chemistry, University of Warwick

Thermofluid Manifolds

  • Choice of two manifolds kits
  • Single circulator manifolds
  • Double circulator manifolds

Vessels

  • 100ml to 5 litres
  • Combine different volumes
  • Vacuum jacketed options
  • Process and standard geometry

Unique Vessel Clamp

  • Supports two vessels
  • Change vessels independently
  • Change vessels in minutes

Simple Stirrer Alignment

  • Set and lock
  • Independent stirring for each vessel

Patented Stirrer Coupling

  • Drop in
  • No tools
  • No fuss

Hose Couplings

  • Quick-release
  • Connect in seconds
  • Chemical-resistant PEEK

Strong Framework

  • Heavy duty base
  • Solid s/steel support rods
  • Large drip tray

Reactor-Ready Duo Base System

RR121300 Reactor-Ready Duo Core

Double Circulator Manifold and Hose Kit

The double circulator kit is designed to work with two separate thermoregulators controlling the temperature of each vessel independently. With this set-up both vessels can operate at different temperatures.

RR121310 comprises:

  • R/H Upper Return Manifold with Vent Valve
  • L/H Upper Return Manifold with Vent Valve
  • R/H Lower Supply Manifold with Drain Valve
  • L/H Lower Supply Manifold with Drain Valve
  • 4 x Quick-Release Insulated Hoses, 60cm
  • 4 x Sealing Caps for Hoses

Single Circulator Manifold and Hose Kit

This single circulator kit is designed to work with one thermoregulator controlling the temperature of both vessels simultaneously. With this set-up both vessels would operate at the same temperature. The manifolds are supplied with a blanking plug should you wish to run only one vessel.

RR121305 comprises:

  • Central Upper Return Manifold with Vent Valve
  • Central Lower Supply Manifold with Drain Valve
  • 4 x Quick-Release Insulated Hoses, 70cm
  • 4 x Sealing Caps for Hoses
  • 2 x Stainless steel blanking plugs

    The range


Reactor-Ready Duo Manifold + Hose Kits

  • RR121119 Central Upper Return Manifold with Vent Valve – NW12
  • RR121120 Central Lower Supply Manifold with Drain Valve – NW12
  • RR121114 Quick-Release Insulated Hose 70cm HT Vessel-to-Manifold
  • RR121114 Quick-Release Insulated Hose 70cm HT Vessel-to-Manifold
  • RR121114 Quick-Release Insulated Hose 70cm HT Vessel-to-Manifold
  • RR121114 Quick-Release Insulated Hose 70cm HT Vessel-to-Manifold
  • RR121115 R/H Upper Return Manifold with Vent Valve – NW12
  • RR121116 R/H Lower Supply Manifold with Drain Valve – NW12
  • RR121117 L/H Upper Return Manifold with Vent Valve – NW12
  • RR121118 L/H Lower Supply Manifold with Drain Valve – NW12
  • RR121130 Quick Release Insulated Hose 60cm HT Vessel-to-Manifold – NW12
  • RR121130 Quick Release Insulated Hose 60cm HT Vessel-to-Manifold – NW12
  • RR121130 Quick Release Insulated Hose 60cm HT Vessel-to-Manifold – NW12
  • RR121130 Quick Release Insulated Hose 60cm HT Vessel-to-Manifold – NW12

Click to download these resources

[

Reactor-ready-Lab-Reactors

Reactor-Ready Lab Reactors Leaflet

](https://www.radleys.com/resources/reactor-ready-lab-reactors/)[Read more](https://www.radleys.com/resources/reactor-ready-lab-reactors/)

[

International Product Guide

Radleys International Product Guide

](https://www.radleys.com/resources/radleys-international-product-guide/)[Read more](https://www.radleys.com/resources/radleys-international-product-guide/)

[

Reactor-Ready Duo Instructions

Reactor-Ready Duo Instructions

](https://www.radleys.com/resources/reactor-ready-duo-instructions/)[Read more](https://www.radleys.com/resources/reactor-ready-duo-instructions/)

Case studies

Royochem Reactor-Ready Duo with AVA

AVA Lab Control Software with Reactor-Ready Duo improves new product development

Sun Chemicals CS1026 Reactor Ready Duo and Lab control software

High torque application for Reactor-Ready Duo and lab control software

University of Warwick CS1006 RRD

Reactor-Ready Duo increases synthesis productivity

Roal, Finland Choose Reactor-Ready Duo for their formulation chemistry

Roal, leading enzyme manufacturer, choose Reactor-Ready Duo for their formulation chemistry

Lanzhou Institute Reactor-Ready Duo

Safer, highly efficient experiments with Reactor-Ready Duo

Blog posts

AVA Lab Control Software

AVA Lab Control Software: A buyer’s guide

Read more

Reactor Ready Duo

Reactor-Ready Duo Core and Components

Easy-to-order Reactor-Ready Duo Core system includes all the framework components required for operation

Core Features include:

  • Robust heavy-duty framework features solid stainless steel support rods
  • Two separate quick release clamps support each of the vessels independently
  • Large drip tray will retain vessel contents
  • Manifold & Hose kits must be ordered separately

Reactor Ready Duo

RR121300 Core System includes

  • Duo stand with base, drip tray, support rods, bosses and all clamps
  • 4 x Hose tidies
  • 2 x PTFE Stirrer guides and couplings
  • 2 x Glass reaction vessel lids including sealing caps 1 x B19, 2 x B24, 1 x B29, 1 x B34
  • 2 x Vessel FEP O-ring seals and PTFE centering collars
  • 2 x Stainless steel vessel support collars

Reactor Ready Duo

Reactor-Ready Duo Manifolds & Hoses

A choice of manifold kits for use with one or two thermoregulators (circulators)

Reactor Ready Duo

RR121310 Double Circulator Manifold and Hose Kit

The double circulator kit is designed to work with two separate thermoregulators controlling the temperature of each vessel independently. With this set-up both vessels can operate at different temperatures.

  • R/H Upper Return Manifold with Vent Valve
  • L/H Upper Return Manifold with Vent Valve
  • R/H Lower Supply Manifold with Drain Valve
  • L/H Lower Supply Manifold with Drain Valve
  • 4 x Quick-Release Insulated Hoses, 60cm
  • 4 x Sealing Caps for Hoses

Reaction-Ready Duo

RR121305 Single Circulator Manifold and Hose Kit

This single circulator kit is designed to work with one thermoregulator controlling the temperature of both vessels simultaneously. With this set-up both vessels would operate at the same temperature. The manifolds are supplied with a blanking plug should you wish to run only one vessel.

  • Central Upper Return Manifold with Vent Valve
  • Central Lower Supply Manifold with Drain Valve
  • 4 x Quick-Release Insulated Hoses, 70cm
  • 4 x Sealing Caps for Hoses
  • 2 x Stainless steel blanking plugs

Reactor Ready Duo

How to order Reactor-Ready Duo

  1. Select the Reactor-Ready Duo Core: RR121300
  2. Choose Manifold and Hose kit for one or two circulators
  3. Choose the Vessel Kit or Kits you require by selecting the vessel volume and style
  4. Select the overhead stirrers you need
  5. If you need a thermoregulator, hoses, hose adapters, thermofluid or accessory glassware, then select from the accessory list
  6. If you need automation add AVA Software and Data Hub

Explore the range

[

Reactor-Ready vessels and accessories

Reactor-Ready Reaction Vessels & Accessories

](https://www.radleys.com/range/reactor-ready-reaction-vessels-accessories/)[

Hei-TORQUE Overhead Stirrers

Hei-TORQUE Overhead Stirrers

](https://www.radleys.com/range/hei-torque-overhead-stirrers/)[

Reactor-Ready

Reactor-Ready Lab Reactor

](https://www.radleys.com/range/reactor-ready-lab-reactor/)
