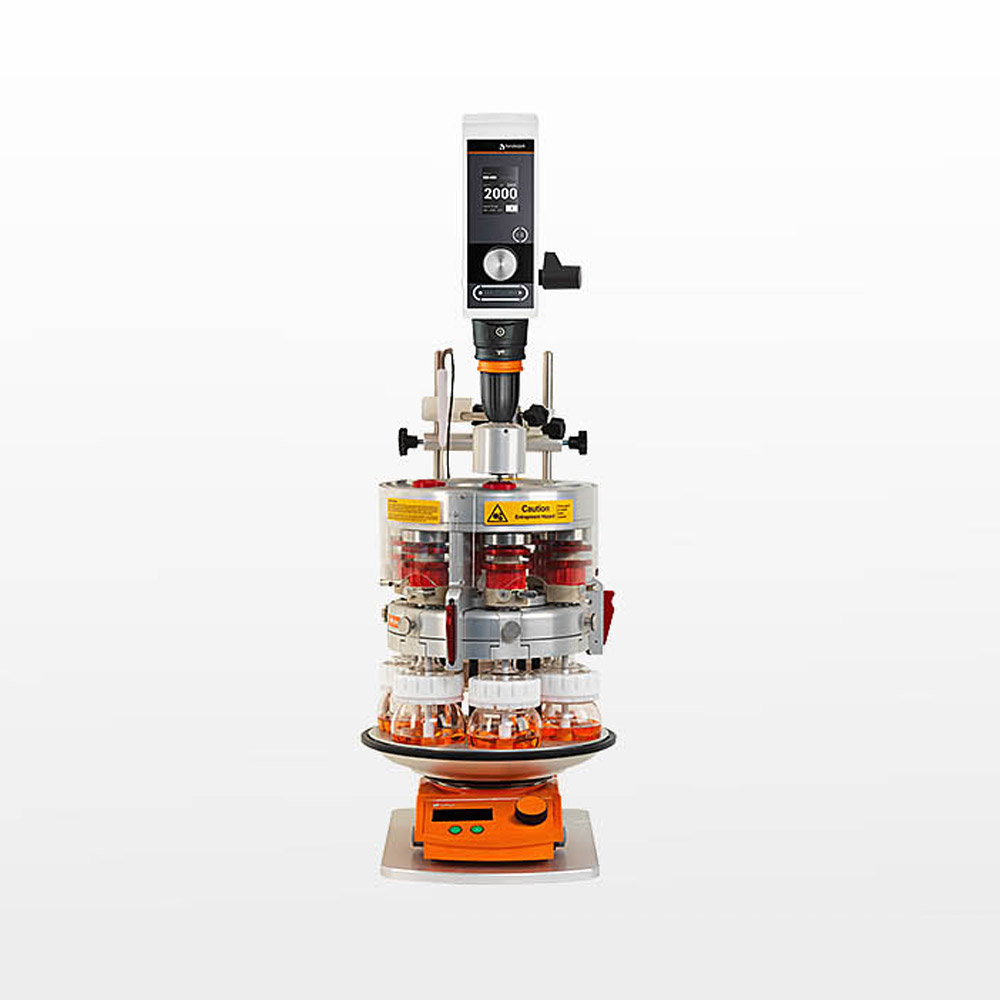

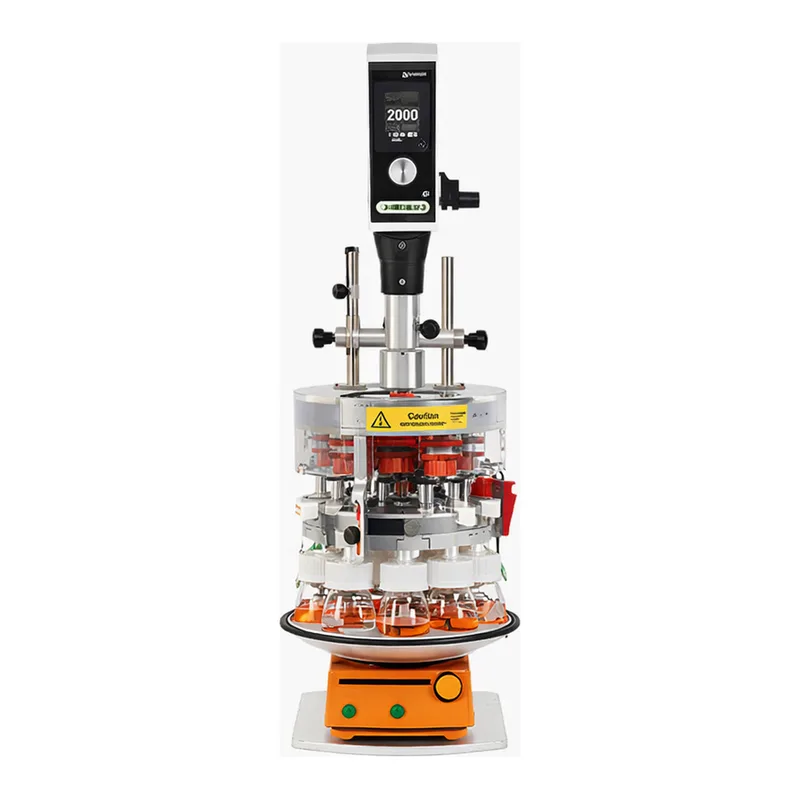

Tornado Overhead Stirring System


The Tornado allows powerful, controlled mechanical stirring of up to six round bottom flasks when combined with the Carousel 6 Plus Reaction Station; offering unrivalled stirring for both viscous samples and for the dispersion of delicate solids in solution.

Tornado

  • Integrates with Carousel 6 Plus to provide heated and stirred reactions
  • Rapid heating to 180 ˚C, with water-cooled reflux head
  • Perform reactions under an inert atmosphere
  • Accepts 50 ml, 100 ml and 250 ml round bottom flasks

E3-Tornado

  • Uses a single overhead stirrer – save space and money compared with multiple set-ups
  • Compatible with all leading brands of overhead stirrer
  • 2-speed drive allows overhead stirrers with less torque to be used for higher viscosities

Tornado Overhead Stirring System

  • Stir to 1,000 rpm in low viscosity
  • Max. viscosity 10,000 mPas at 500 rpm
  • Integral polycarbonate safety guard prevents accidental contact with rotating parts
  • Optional clamp and stand provides added stability during operation

Since using the Tornado system we can simultaneously carry out several reactions. This has greatly increased our work efficiency and the Carousel 6 part of the system also offers parallel magnetic stirring as well.Professor Chen Biqiang, College of Life Science and Technology, Beijing Institute of Chemical Technology

  • Uses a single overhead stirrer to agitate up to six 250 ml flasks

  • Choice of centrifugal, anchor and propeller PTFE stirrers, specifically sized for each vessel

  • Choice of flask sizes and styles with wide neck option

  • Wide neck flasks allow easier removal of viscous and solid samples and the use of larger stirrer blades.

  • Baffles improve stirring by disrupting the creation of a vortex

  • Tool-free 'Pinch-Grip' mechanism and sealed stirrer system allows easy stirrer shaft insertion and operation under an inert atmosphere

  • Compatible with all leading brands of overhead stirrer

  • Heated directly by the stirring hotplate with optional digital control and Pt1000 temperature sensor

  • Integral polycarbonate safety guard

  • Provides up to six heated (max +180 ˚C) and stirred reaction positions

  • Universal support stand gives added stability

  • Integrates with existing Carousel 6 Plus without increasing footprint

  • Fits on all Carousel Stirring Hotplates

  • Accepts 50 ml, 100 ml and 250 ml round bottom flasks (sidearms and baffled flasks available)

  • Individual vessels can be removed easily

  • Easy to operate and set-up with minimal training time

  • 2-speed drive (1:1 and 2:1) allows lower rated stirrers to be used for higher viscosity liquids

  • 250 ml Azeotropic (Dean & Stark) flask option

Technical Information


Drive System Replaceable toothed belt drive with automatic tensioner
Gears 2-speed drive – 1:1 ratio and 2:1 ratio
Max RPM 1000 rpm
Max viscosity 10,000 cps @ 500 rpm
Temperature range Ambient to +180 ºC
Glassware 100 ml and 250 ml
Working volume 20 ml to 150 ml

Tornado Plus Overhead Stirrer

RR99951 Tornado Plus Overhead Stirrer

Includes drive unit, 6 x stirrer guide mechanisms, stirring motor coupling,
__stirring motor clamp and polycarbonate safety shield

Tornado Support Stand

RR99230 Tornado Support Stand

Provides support and rigidity with a unique double support rod and brace

Pt1000 sensor

RR99239 Pt1000 stainless steel sensor with extra-long 345mm probe

Allows probe to reach through Tornado unit into Carousel 6 Plus base

Other components

RR99952 Quick-Thread Stirrer Guide Assembly

RR99953 Replacement Tubing for RR99952 110mm (Stirrer Guide to Carousel 6 Plus)

Click to download these resources

[

Carousel 6 Reaction Station

](https://www.radleys.com/resources/carousel-6-plus-and-cooled-reaction-station/)[Read more](https://www.radleys.com/resources/carousel-6-plus-and-cooled-reaction-station/)

[

Tornado-Plus

Tornado Plus Overhead Stirrer System Leaflet

](https://www.radleys.com/resources/tornado-plus-overhead-stirrer-system/)[Read more](https://www.radleys.com/resources/tornado-plus-overhead-stirrer-system/)

[

Tornado Instructions

Tornado Plus Instructions

](https://www.radleys.com/resources/tornado-plus-instructions/)[Read more](https://www.radleys.com/resources/tornado-plus-instructions/)

[

International Product Guide

Radleys International Product Guide

](https://www.radleys.com/resources/radleys-international-product-guide/)[Read more](https://www.radleys.com/resources/radleys-international-product-guide/)

Beijing Institute Of Fashion Technology Tornado

Tornado allows Beijing Institute Of Fashion Technology to perform six reactions simultaneously

Waters Corporation Tornado

Tornado brings better consistency to particle size and distribution in heterogeneous chemistry

Beijing Institute of Chemical Tornado

Tornado hits Chinese labs

Institute of Petrochemistry Tornado

5 Beijing Union University Tornado

Accelerating process optimisation using the Tornado Plus Overhead Stirring System

Shanghai Institute of Pharmaceutical Industry C6 Tornado.jpg

Cranfield Case study

Tornado with Huber Ministat ensures Cranfield University get great results in a tight space

Parallel Reaction Stations Carousel 6 and 12 Plus

Read more

Are these basic mistakes preventing you from getting a good yield?

Read more

Fits directly onto the Carousel 6 Plus without the use of tools.

Tornado Glassware Options

Choice of flask sizes and styles, including wide neck option

Wide neck flasks allow easier removal of viscous and solid samples and the use of larger stirrer blades. Baffles also improve stirring by disrupting the creation of a vortex.

More info

Universal Support Stand

Universal Support Stand aids stability

This heavy duty, stainless steel and aluminium stand provides the added support needed for stable operation of the Tornado. Tool-free design is easy to assemble.

PTFE Stirrer Paddles

Choice of PTFE Stirring Paddles

Choose from centrifugal, anchor and propeller PTFE stirrers, specifically sized for each vessel. Custom formats available on request.
More info

Pinch-Grip Stirrer Guide Assembly

Pinch-Grip Stirrer Guide Assembly allows easy stirrer shaft insertion

Unique PEEK Pinch-Grip mechanism allows easy, tool-free stirrer shaft insertion and operation under an inert atmosphere.

[
