Radleys 12구 멀티냉각시스템

견적요청
제품상담 버튼을 클릭하시면 해당 제품에 대해 문의하실 수 있습니다.
Part No, 구매수량을 알려 주시면 빠른 상담을 진행 할 수 있습니다.
브랜드: Radleys
event-card-banner

The innovative Cooled Carousel 12 Plus reservoir is designed to accept the removable reflux/inerting head from the Carousel 12 Plus; allowing reaction tubes to be easily and rapidly transferred between heating and cooling bases.

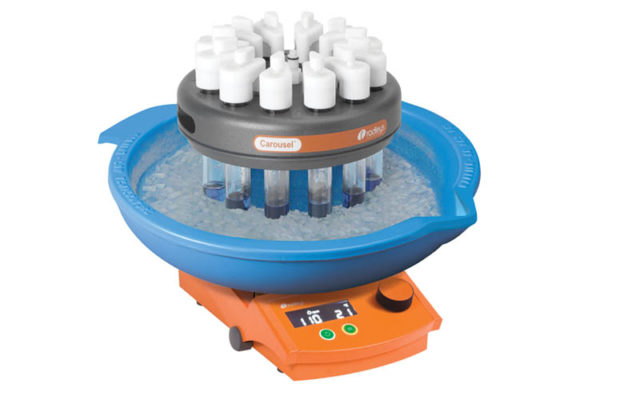

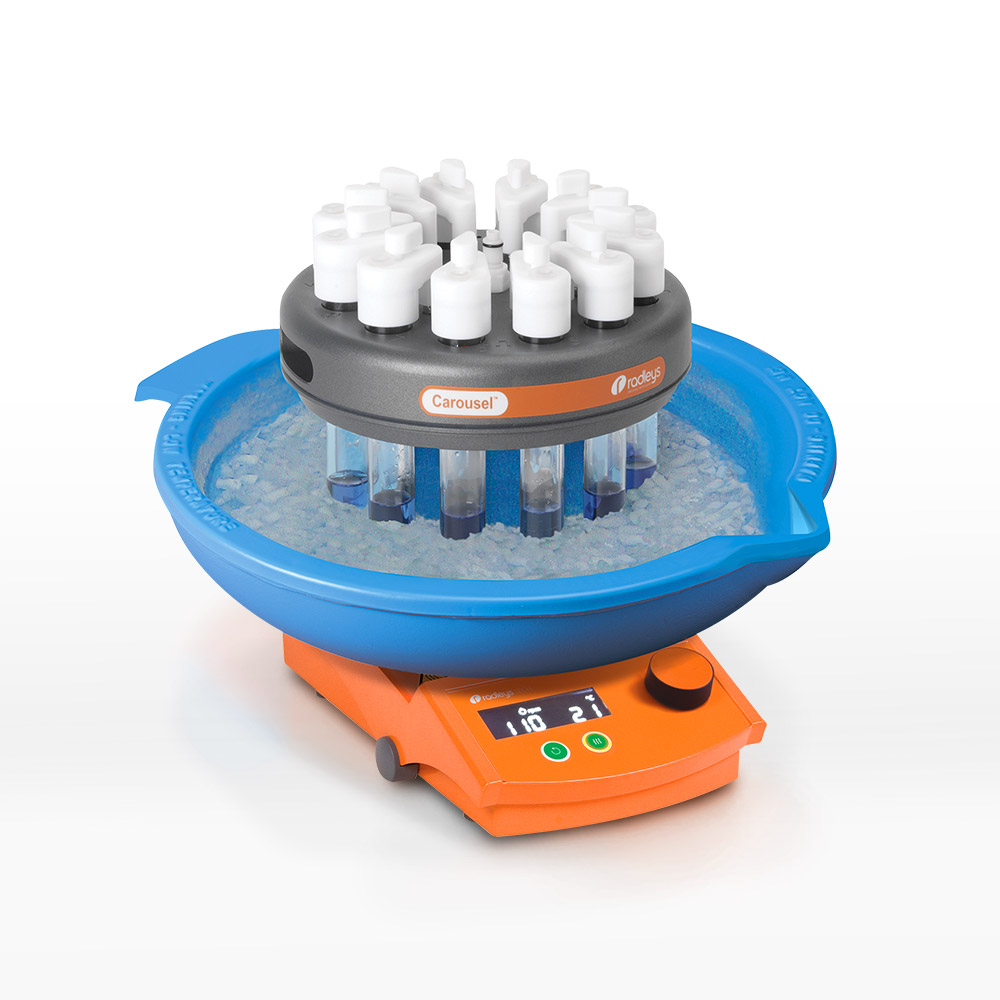

Cooled Carousel 12 Plus Reaction Station

  • The Cooled Carousel 12 Plus simultaneously performs 12 cooled and stirred reactions to -78 ˚C
  • Powerful, even stirring – reservoir fits on to a Carousel stirring hotplate
  • Robust HDPE cooling reservoir is compatible with a wide range of cooling mixtures, including dry ice/acetone for manually controlled cooling from ambient down to -78 ˚C
  • Features a non-drip spout and handle for disposal of waste solvents

Cooled Carousel 12 Plus Reaction Station

  • Insulated foam core maintains low temperatures for long periods, whilst protecting the stirrer from freezing. Also reduces condensation and ice formation on outer surfaces
  • HDPE lid keeps your reaction cooler for longer, minimises ice formation on your tubes (maintaining visibility of the contents) and prevents spitting from the cooling mixture
  • The robust HDPE reservoir is virtually unbreakable

The Cooled Carousel 12 used routinely by all for both parallel synthesis and for rapid reaction development and optimisation - a testament to the convenience of operation and the ease by which standard methodology may be transferred onto the apparatus.Dyson Perrins Laboratory, University of Oxford

Robust HDPE cooling reservoir

  • Robust HDPE cooling reservoir is compatible with a range of freezing mixtures including dry ice/acetone for manually controlled cooling from ambient to -78 ˚C

Single rotating magnetic field

  • Utilises single rotating magnetic field of the stirrer to stir all the positions evenly and powerfully

Insulated foam core

  • Insulated foam core maintains low temperatures for long periods whilst protecting the stirrer from freezing. Also reduces condensation and ice formation on outer surfaces

HDPE reservoir

  • The robust HDPE reservoir is virtually unbreakable
  • Carousel Stirring Hotplate powerful stirring with digital control

Non-drip spout

  • Features a unique non-drip spout and ergonomically designed handle for easy disposal of waste solvents

Up to 12 glass tubes

  • Accepts up to 12 glass tubes with reaction volumes of 5 to 20 ml (1 ml with reduced volume tubes)

12 Cooled and stirred reactions

  • Simultaneously performs 12 cooled and stirred reactions to -78 ˚C

PTFE caps

  • PTFE caps feature a 'quick-thread' for fast attachment to the glass tubes and 'easy-on' push connections to the stainless steel gas outlets

Central inlet/outlet

  • Central inlet/outlet for vacuum and gas, combined with a redial gas distribution system and gas-tight PTFE caps, allows reactions under an inert atmosphere

The range


RR91040 Carousel 12 Plus Cooling Reservoir & Lid
RR91041 Carousel 12 Plus Cooling Lid

Cooling Protection Kit

RR71505 Cooling Protection Kit

Comprising of the following:
1 x RR99909 Cold Temp. Apron 1060mm long Waterproof
1 x RR99910 Protective Faceshield
1 x RR98024 Protective Cold Temperature Gloves

RR99905 Digital Thermometer (-250°C to +400°C) and 200mm Probe
RR99906 Digital Thermometer (-250°C to +400°C)
RR99907 200mm Temperature Probe
RR99908 Dry Ice Scoop
RR99909 Cold Temp. Apron 1060mm long Waterproof
RR99910 Protective Faceshield
RR98024 Protective Cold Temperature Gloves

Click to download these resources

[

Carousel-12 Reaction Station

](https://www.radleys.com/resources/carousel-12-plus-and-cooled-reaction-station/)[Read more](https://www.radleys.com/resources/carousel-12-plus-and-cooled-reaction-station/)

[

International Product Guide

Radleys International Product Guide

](https://www.radleys.com/resources/radleys-international-product-guide/)[Read more](https://www.radleys.com/resources/radleys-international-product-guide/)

[

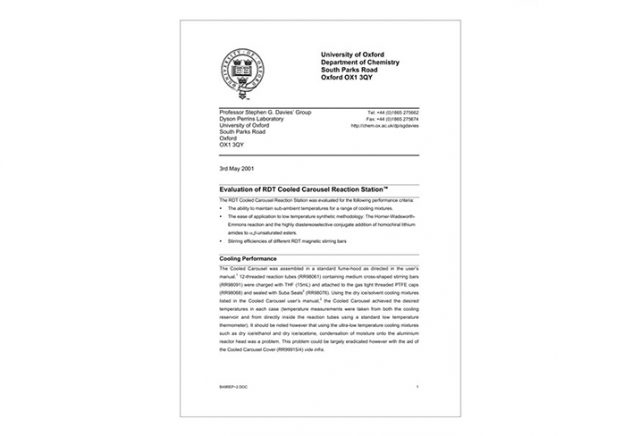

Cooled-Carousel-12-Eveluation

](https://www.radleys.com/resources/evaluation-of-cooled-carousel-12-reaction-station/)[Read more](https://www.radleys.com/resources/evaluation-of-cooled-carousel-12-reaction-station/)

DSM Carousel 12

BASF Carousel 12

SouthWest University Carousel 12

Shaanxi Normal University Carousel 12

Lundbeck Carousel 6 and 12

University of Minnesota Carousel 12

Parallel Reaction Stations Carousel 6 and 12 Plus

Read more

How do you increase the productivity of your chemistry?

How do you increase the productivity of your chemistry?

Read more

Choosing the right stirring bar

Tips for choosing the right stirring bar for your experiment

Read more

Boosting reproducibility in the lab

Boosting reproducibility in the lab

Read more

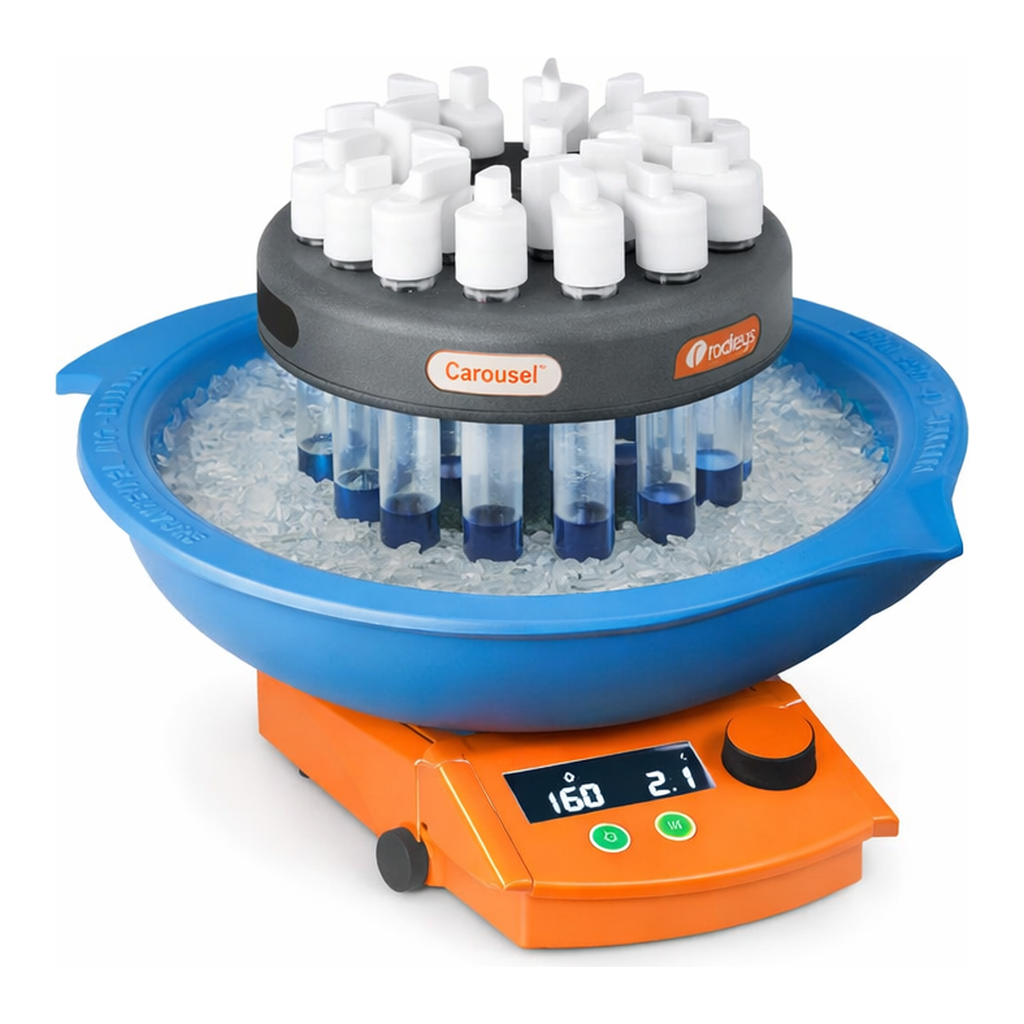

Cooled Carousel 12 Plus Reaction Station

Carousel 12 Plus Systems

Everything you need in convenient easy to order systems

  • Click “The range” on the tab above to view catalogue numbers of Cooled Carousel 12 components
  • For the range of glassware and accessories,
    click here

Carousel PTFE lids

Easy-On PTFE Caps

The PTFE caps are an essential component of the Carousel 12 Plus. Manufactured from a chemically-resistant PTFE the caps are attached to the reflux tube/flask using a quick-thread and feature an Easy-On push connection to the radial gas system. The caps include an on/off valve for isolation and removal from the inert gas system. A replaceable silicone Suba-Seal septum allows the addition or removal of reagents or samples using a suitable syringe.

More info

Reaction tubes 1 to 20ml with reducing insert

Durable glass reaction tubes

Manufactured from high quality, heavy-walled borosilicate glass, the tubes are precision engineered to maximise heat transfer from the heated base and cooled reflux head. This ensures that all tubes are heated and cooled at the same rate. Standard tubes have a reaction volume of 5 to 20ml. Reduced volume tubes have a reaction volume of 1 to 5ml.

More info

[

Carousel 12 Accessories

](https://www.radleys.com/range/carousel-12-plus-glassware-and-accessories/)[

Carousel 12 Plus

](https://www.radleys.com/range/carousel-12-plus-reaction-station/)[

Carousel Work-up

(https://www.radleys.com/range/carousel-work-up-station/)

View all products
