| 상품 옵션 정보 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | CAS 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| CT3001F/MG213XDOPT00000 | - | Micro GearPump, Dispensing, PEEK, 50-3000 rpm,45-2700 mL/min, 3 bar, 100-240VAC/60Hz | 재고문의 | ea | 2,163,000원 | - | 2,379,300원 | |
| CT3001F/MG209XDOPT00000 | - | Micro GearPump, Dispensing, PEEK, 50-3000 rpm,30-1800 mL/min, 8 bar, 100-240VAC/60Hz | 재고문의 | ea | 2,063,000원 | - | 2,269,300원 | |
| CT3001F Micro Gear Pump | - | Micro GearPump, Dispensing, PEEK, 50-3000 rpm,15-900 mL/min, 8 bar, 100-240VAC/60Hz | 재고문의 | ea | 2,060,000원 | - | 2,266,000원 | |

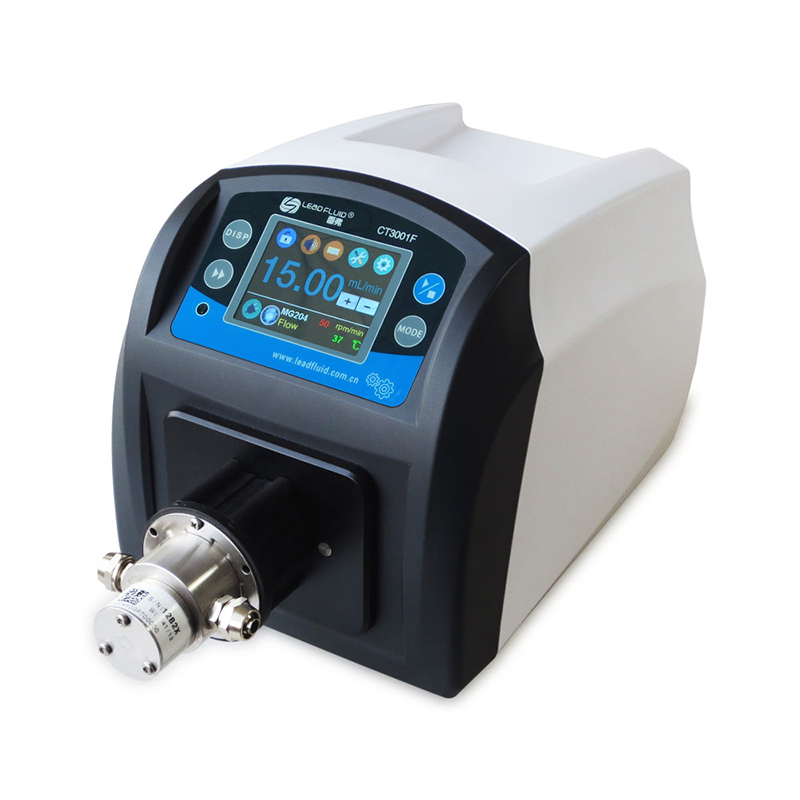

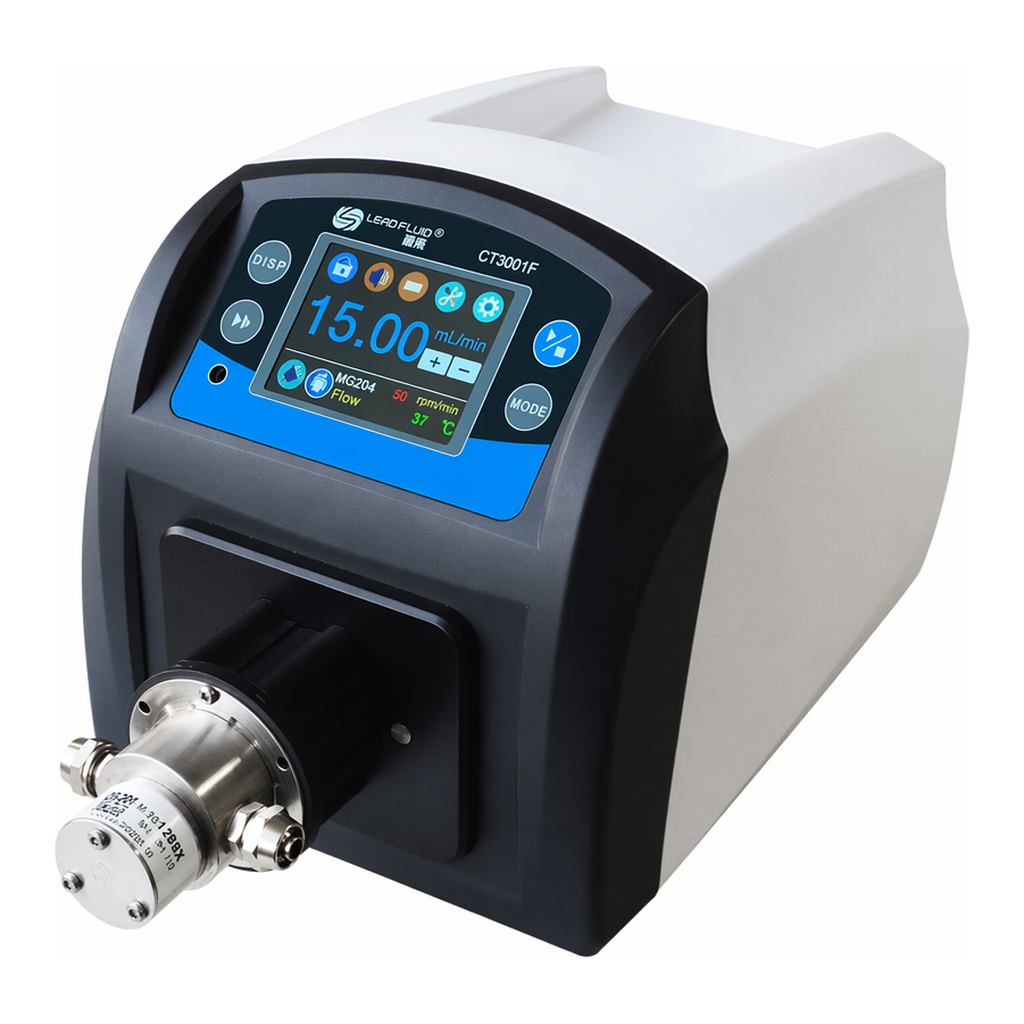

Product introduction
CT3001F is a high performance, low noise of micro gear pump, brushless servo motor, stainless steel, magnetic drive pump head can be realized constant transfering fluid without pulsation.Streamline drives use plastic shell, color LCD display, touch screen operation, can be easily set parameters.A variety of work mode, flow display, and are suitable for all kinds of LAB areas.A variety of external control way, convenient to use with other devices,and the MODBUS protocol communication, simplify the difficulty of system development.
CT3001F working speed 50-3000 r/min, speed resolution 1rpm.
Flow: 15-2700 mL/min
Max: 1 Channel
Description
Function and Feature• It can be installed a variety of pump head.
• It is suitable for transmission more viscous, high pressure liquid.
• No pulse transmission, low noise.
• Adopt magnetic coupling is designed, easy to maintain.
• Adopt brushless servo drive, high efficiency, no maintenance.
• Color LCD display, touch screen operation.
• Display the flow rate and flow rate controlable.
• It has a variety of work mode.
• Flow calibration wizard, ensure the accuracy of fluid volume.
• Intelligent temperature control function.
• External control signal control, physical isolation, analog control.
• RS485 communication, support the MODBUS protocol.
• Shape adopt stream line plastic shell.
• Wide range power input, adapted to different environment.
Technical Parameters:
CT3001F parameters
Main Function
| Suitable pump heads | MG204, MG209, MG213 |
| Main function | Keypad to control start/stop, direction, full speed, memory (power lost memory), Foot switch control external control start, stop, external control direction, with phsical isolation, level 5v, 12v, 24v input is optional, 0 to 5v, 0 to 10v, 4-20mA speed control optional, Transfer mode, fluid volume dispensing mode, time dispensing mode, copy dispensing mode. |
| Communication function | RS485, support Modbus communication protocol |
| Display function | True color touch screen display |
| Direction control | Unidirectional |
Main Features
» **CT3001F suitable Pump head**
| Pump head model | Gear material | Transfer pressure(Mpa) | Flow rate(ml/min) | Speed （rpm）l |
| MG204XD0PT00000 | PEEK | ≤0.8 | 15-900 | 50-3000 |
| MG209XD0PT00000 | PEEK | ≤0.8 | 30-1800 | 50-3000 |
| MG213XD0PT000000 | PEEK | ≤0.3 | 45-2700 | 50-3000 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
