| 상품 옵션 정보 | |||||||
|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| CT3000S/MS213XDOPT00000 | Micro GearPump, Speed Control, PEEK, 300-3000 rpm,270-2700 mL/min, 3 bar, 100-240VAC/60Hz | 재고문의 | ea | 2,250,000원 | - | 2,475,000원 | |
| CT3000S/MS209XDOPT00000 | Micro GearPump, Speed Control, PEEK, 300-3000 rpm,180-1800 mL/min, 8 bar, 100-240VAC/60Hz | 재고문의 | ea | 2,125,000원 | - | 2,337,500원 | |
| CT3000S/MS204XDOPT00000 | Micro GearPump, Speed Control, PEEK, 300-3000 rpm,90-900 mL/min, 8 bar, 100-240VAC/60Hz | 재고문의 | ea | 2,063,000원 | - | 2,269,300원 | |

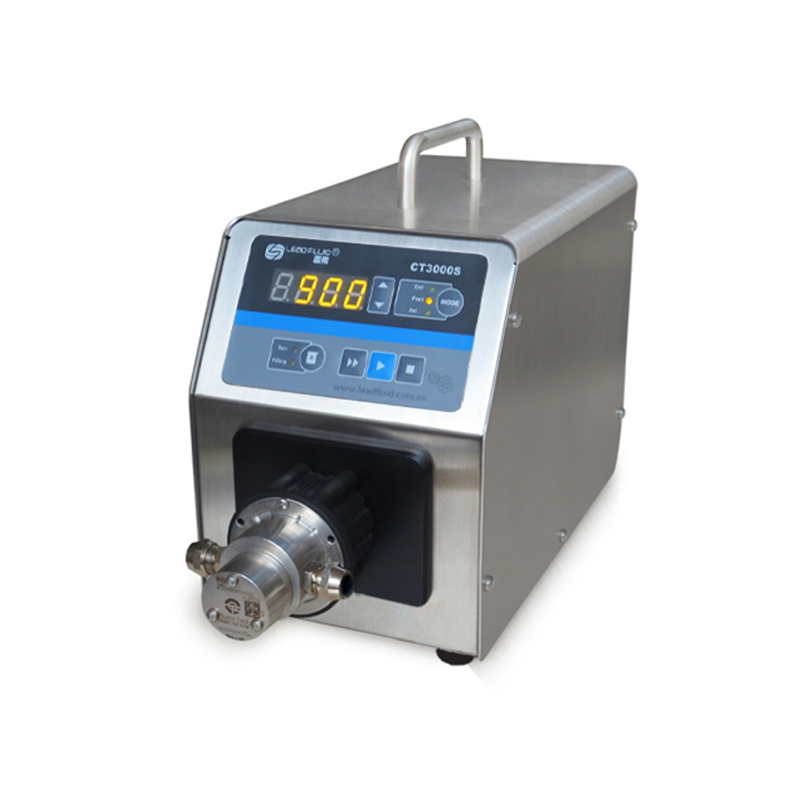

Product introduction
CT3000S is a high performance, low noise of micro gear pump, adopts brushless motor, stainless steel, magnetic drive pump can be realized without pulsation, constant velocity of the fluid flow control.Drives use stainless steel casing, digital tube display, key operation, can be easily set parameters.Speed display, light display status, suitable for all kinds of experimental areas.A variety of external control way, convenient use together with other devices, more the MODBUS protocol communication, simplify the difficulty of system development.
CT3000S work speed of 300-300 r/min, speed resolution 1rpm
Flow: 90- 2700mL/min
Max: 1 Channel
Description
Function and Feature
• It can be installed a variety of pump head
• This pump is suitable for transmission more viscous, high pressure liquid
• No pulse transmission, low noise
• Magnetic coupling is designed, easy to maintain
• Brushless drive, high efficiency, no maintenance
• The digital tube display, keystrokes
• Speed display
• Regularly repackaging or dispensing
• External control signal control, physical isolation, analog control
• RS485 communication, support the MODBUS protocol
• Stainless steel shell
• wide range power input, adapted to different environment
The parameters
Main function
| Pump head | MS204,MS209,MS213 |
| Functions | keypad control Start-stop, speed and state memory (power lost memory);Foot switch control, external start-stop and external control direction, input physical isolation, level 5 v / 12 v / 24 v input is optional;0 to 5 v / 0 to 10 v / 4-20 ma speed optional;Time dispensing function |
| Communication | RS485，Support Modbus communication protocol |
| Display | display speed and mode |
| Direction | unidirectional |
Main performance
| Flow range | 90-2700ml/min |
| Speed range | 300-3000rpm/min |
| Speed resolution | 1rpm/min，accuracy 3% |
| Adjusting way | Keypad |
| Display mdoe | 4 LED digital display |
| Power supply | AC 100-240V 50Hz/60Hz（standard） |
| consumption | <150W |
| Working envronment | Environment 0~ 40℃ humidity <80% |
| Dimension size | 320X150X 237 mm |
| Drive weight | 5.5kg |
| IP standard | IP31 |
CT3000S suitable Pump head
| Pump head | Gear materal | Pressure (MPa) | Flow range (MPa) |
Liquid temperature℃ |
| MS204XD0PT00000 | PEEK | ≤1.4 | 90-900 | -45-120 |
| MS209XD0PT00000 | PEEK | ≤0.9 | 180-1800 | -45-120 |
| MS213XD0PT00000 | PEEK | ≤0.8 | 270-2700 | -45-120 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
