EVOS™ Onstage Incubator (OSI-2)

The second generation EVOS Onstage Incubator (OSI-2) is designed to work seamlessly with the EVOS M5000 and EVOS M7000 imaging자세히 알아보기

The second generation EVOS Onstage Incubator (OSI-2) is designed to work seamlessly with the EVOS M5000 and EVOS M7000 imaging systems and provides precise control of temperature, humidity, and gas concentration (O2, CO2, N2), allowing the capture of images from the same sample over long periods of time and recording of time lapse movies under physiological conditions. For added convenience, the OSI-2 contains an on-board air compressor, eliminating the need for a separate air tank. Environmental settings and image acquisition parameters are all seamlessly integrated into the microscope user interface, creating a high-performance inverted imaging system with excellent flexibility, ease of use, and superb optical performance for demanding live cell time-lapse imaging experiments.

The EVOS Onstage Incubator (OSI-2) offers these important advantages:
• Fully integrated environmental chamber for live cell time-lapse imaging
• Precise maintenance of physiological conditions for the duration of the time-lapse experiment
• Intuitive user-interface for setting environmental conditions and image acquisition parameters
• Small footprint, robust build, and workflow-enhancing design elements
• Choice of a wide range of onstage incubator-compatible vessel holders
• Quiet, on-board air compressor

Fully integrated environmental control system

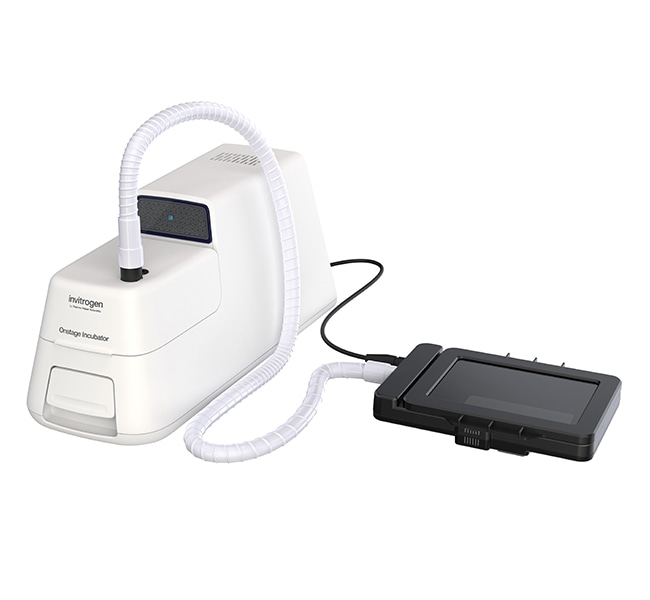

The OSI-2 consists of an environmental control unit and an environmental chamber precision-tooled for the automated X-Y stage on the EVOS M7000 system. The stage plate that ships with the OSI-2 is also compatible with the semi-automated EVOS M5000 system. A small, separate control unit provides power, humidity, temperature control, and gas (air or air-CO2 premix, CO2, and N2 for O2 displacement in hypoxia experiments). Unlike many other systems that require separate software modules or control units, the OSI-2 is operated through the user interface of the EVOS M5000 and M7000 systems. Following a simple installation, the incubator is automatically recognized by the imaging software and ready for use.

Flexible and precise environmental control
When performing live-cell imaging studies, such as cell proliferation, cell cycle, stem cell differentiation, migration, membrane, and organelle dynamics studies, it is essential to maintain environmental control. Shifts in temperature of even few degrees can have profound effects on dynamic cellular events, as can changes in CO2 or oxygen concentrations. The ability to maintain tight temperature control helps maintain cell function and reduces the risk of biological temperature-related artifacts. It also minimizes thermal contractions or expansions that may cause focus instability or drift. To enable studies of cells under hypoxic conditions, the system has three gas line ports. By using N2 it is possible to create hypoxia by setting the oxygen sensor to the desired level.

Operating ranges and levels

Temperature range: ambient to 40°C (+/- 0.1°C)
Relative humidity range: 70–90% at 37-40°C
CO2 range: 0–20%
O2 range: 0% to ambient
Air-compressor decibel level: 45 Db (with cover); 48 Db (without cover)

Explore the entire EVOS line of imaging systems and accessories ›
Explore the entire collection of EVOS vessel holders and stage plates ›

사양

유형Onstage Incubator

제품라인EVOS

용도(애플리케이션)Time-lapse imaging

용도(장비)EVOS™ M5000 Imaging System, EVOS™ M7000 Imaging System

보유Slides, chambered slides, chambered coverglass, multiwell plates, petri dishes, T-25 flasks, and T-75 flasks

상대 습도70 to 90% at 37°C to 40°C

온도 범위(미터법)Ambient to 40°C (± 0.1°C)

높이(영국식 단위)9 in. (Control Unit)
1.6 in. (Environmental Unit)

높이(미터법)23 cm (Control Unit)
4.1 cm (Environmental Unit)

길이(영국식 단위)18 in. (Control Unit)
11 in. (Environmental Unit)

길이(미터법)45 cm (Control Unit)
21 cm (Environmental Unit)

중량(영국식 단위)15 lb. (Control Unit)
1.6 lb. (Environmental Unit)

중량(미터법)6.7 kg (Control Unit)
0.73 kg (Environmental Unit)

폭(영국식 단위)8.3 in. (Control Unit)
9 in. (Environmental Unit)

폭(미터법)21 cm (Control Unit)
23 cm (Environmental Unit)

수량Each

배송 조건Room Temperature

주파수50/60 Hz

전압100/240 V

Unit SizeEach
