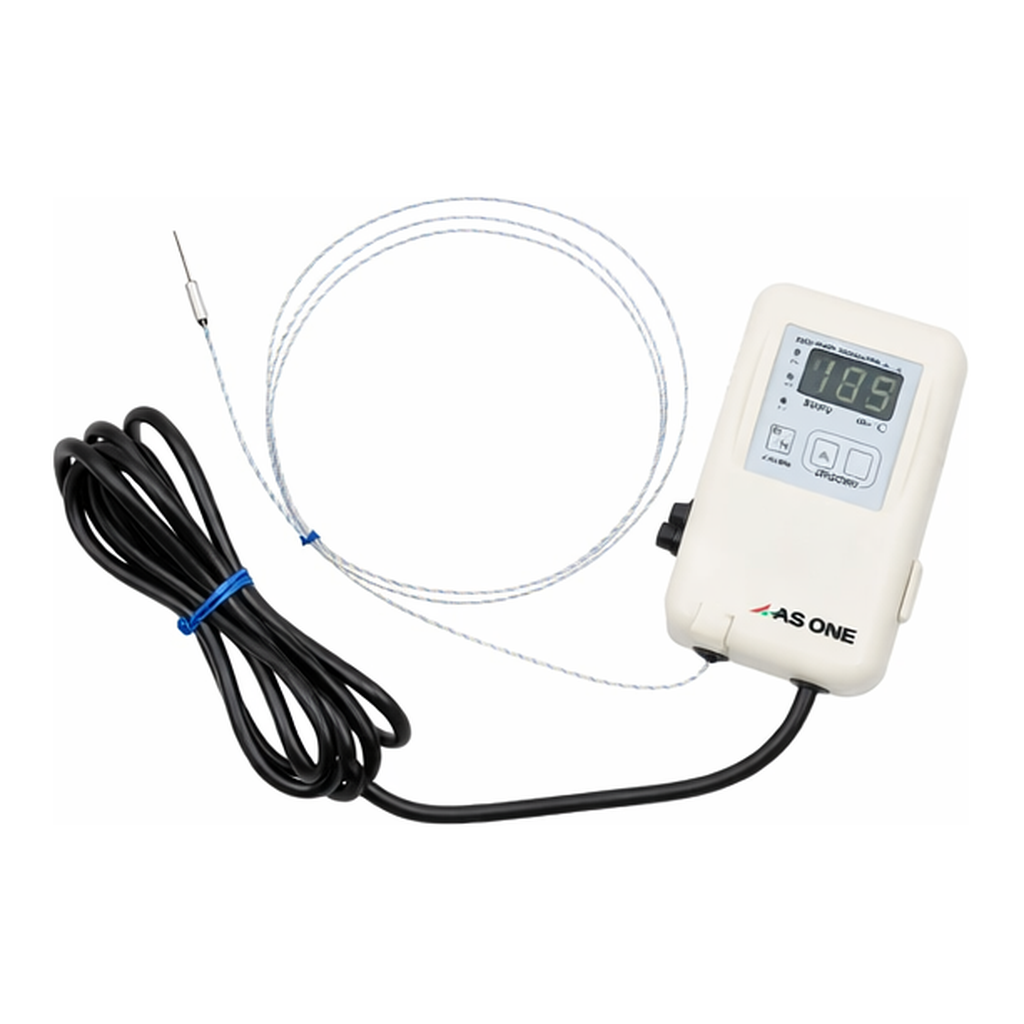

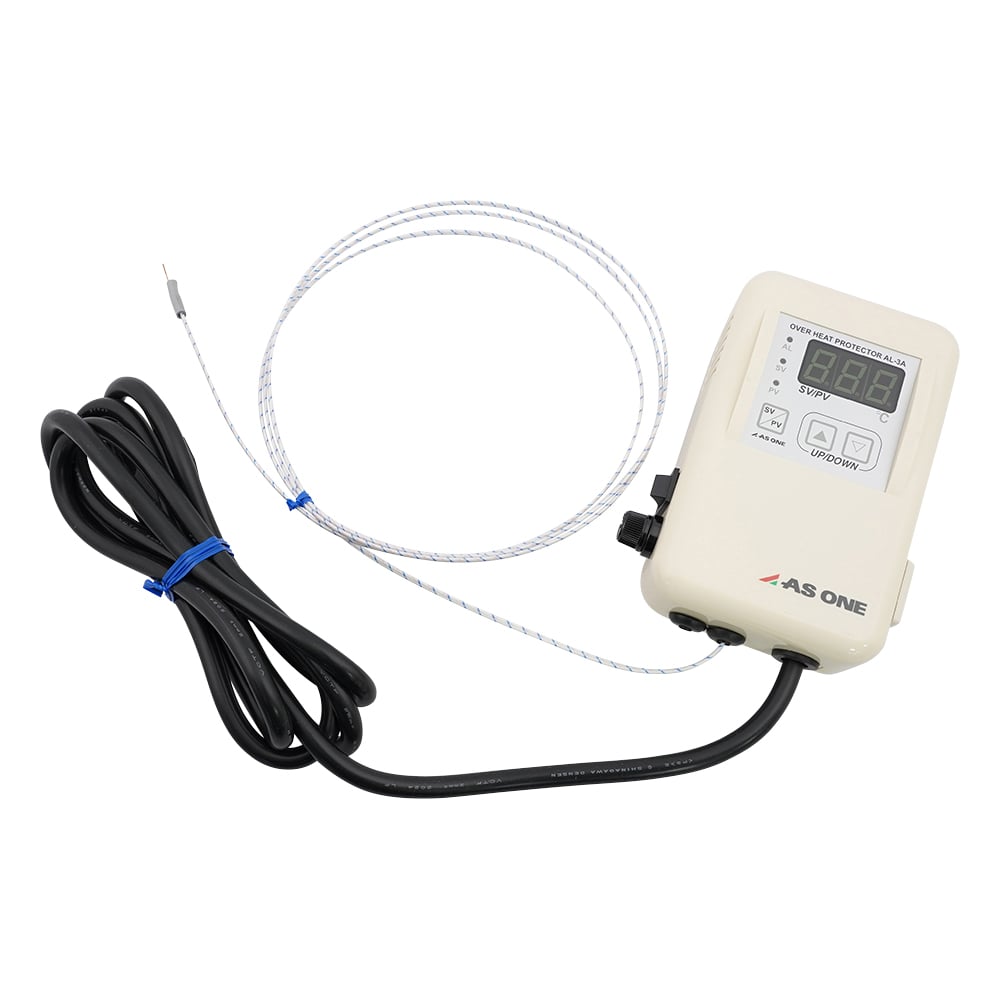

AS ONE 1-2995-21 Excessive temperature rise prevention device and alarm generator main body　AL-3A

Features

• It can be hung on a wall and takes up little space!
• If the temperature exceeds the set temperature, the power is turned off and does not return even after the temperature has decreased (temperature rise prevention function).
• Turns on a separately connected alarm or lamp according to the set temperature (alarm generation function).
• Can be hung on a device or wall for compact use.
• With round terminal type temperature sensor that is easy to fix to the object.

Spec

• Setting Range (degrees C): 0 to 999 ° C * 1
• Minimum display unit (degrees C): 1
• Display accuracy: ± 0.5% rdg ± 1 dgt or ± 3 ° C (Without sensor error)
• Operation: Lamp ON/Internal Relay ON/OFF (Switchable)
• Temperature Sensor: K Thermocouple
• Output method: Voltage output by relay contact
• *1 Because the heat-resistant temperature of the attached sensor is 200 ° C, the preset range is adjusted to 0 to 200 ° C. You can change the setting range according to your sensor specifications.
• *Do not connect inductive load devices (Motor pumps, etc.) directly to the tester.

Package size：205×205×70 mm　800 g　 [About Package size]
