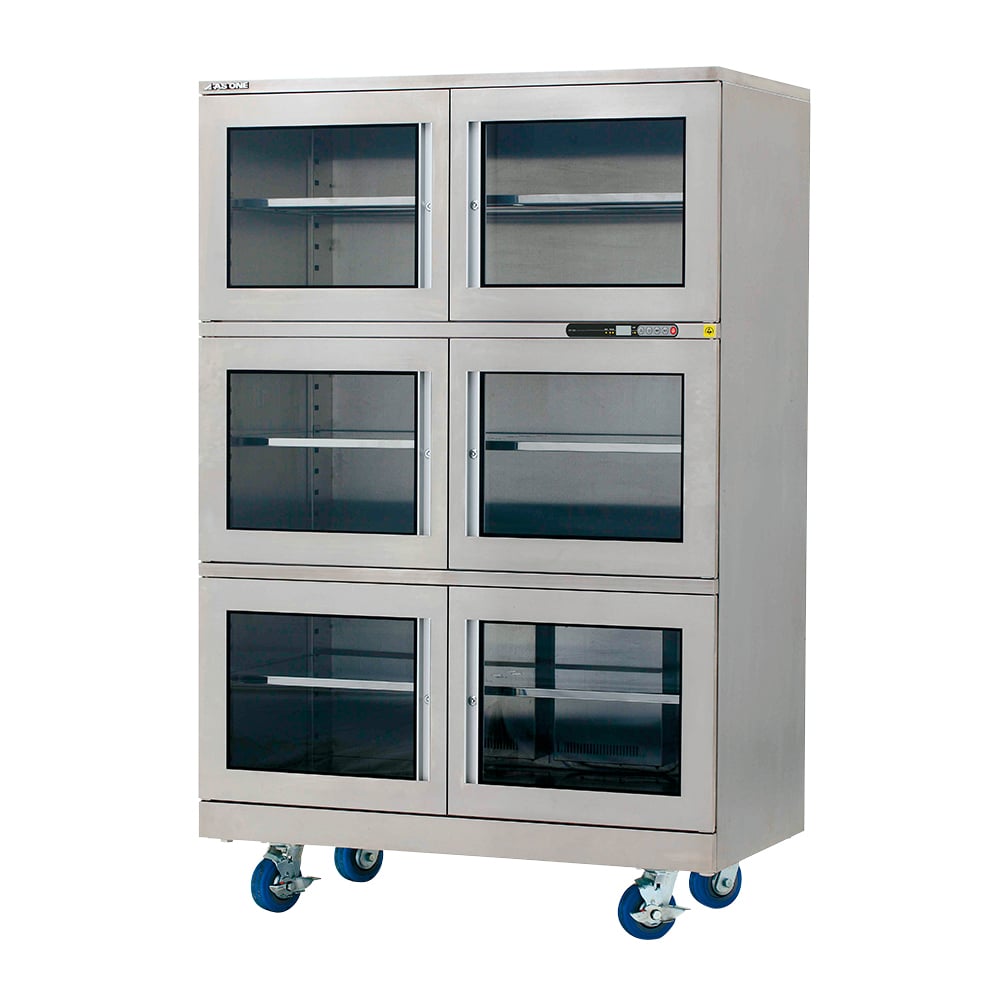

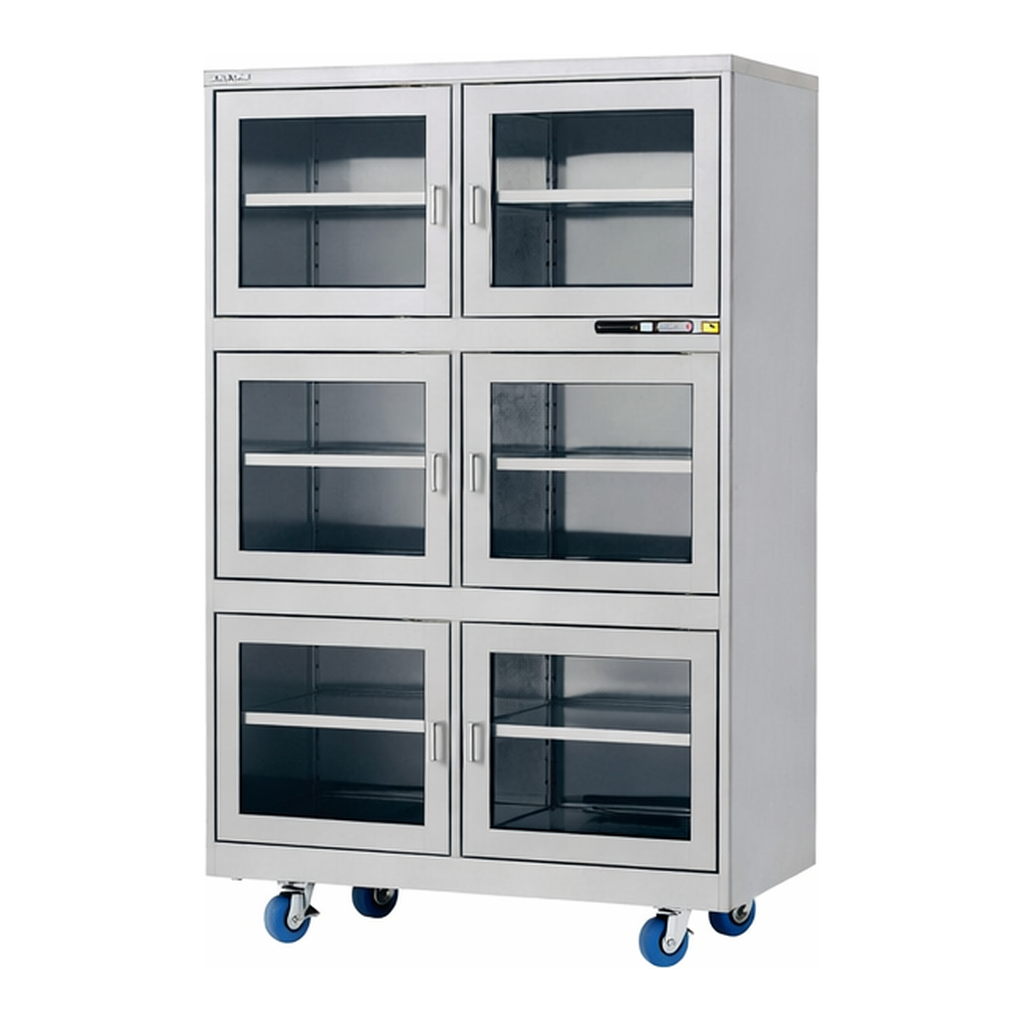

AS ONE 1-2904-13 Dry Max (Stainless Steel, Ultra Low Temperature, ESD Compatible) 1200 x 658 x 1840 mm　SDMX-1200N

* Oversized

Features

• Since humidity setting and control can be performed digitally, it can be used in the situation according to the object.
• With a large number of doors, it is possible to reduce the impact when opening and closing (with each door key).
• Even if the door is opened for 30 seconds from the ambient humidity of 60%RH and the interior humidity of 5%RH or less, the interior humidity recovers to 5%RH or less within 1 hour.
• Since it supports ESD, it is suitable for storing electronic components.
• Achieved humidity is 1%RH, making it suitable for storage of IC packages, LEDs, printed circuit boards, electronic components, etc. conforming to IPC/JEDEC J-STD-033B.

Spec

• External Dimensions (mm): 1200 x 658 x 1840
• Inner Dimensions (mm): 1150 x 630 x 1560
• Achieved humidity: 1%RH(Due to the humidity sensor error, the humidity display may not match even if the desired humidity has been reached.)
• Humidity Setting Range: 1~50%RH
• Humidity Control Range: 1%RH~ Indoor Humidity (* Humidity control range is for reference when there is no load inside the chamber and the outdoor environment is 25°C and 60%RH (changes depending on outside air conditions).)
• Dehumidification system: Adsorption dehumidification and regeneration repeated operation
• Humidity Sensor: Capacitance Type
• Humidity sensor accuracy: ±2%RH
• Operating Environment Temperature: 5~35°C
• Volume: 388 L
• Shelf Board Dimension: 555 x 490 mm
• Material: Body/Stainless Steel (SUS304) Hairline Finish, Shelf/Stainless Steel (SUS430), Front Window/Glass
• Power: 100 VAC 50/60Hz Cord Length: Approx. 2 m
• Maximum power consumption: 290 W
• Average power consumption: 31 W/h
• Weight: 48 kg
• Caster: Φ75 mmPU (Polyurethane)
• Accessory: Shelf Boards x 3
• *Wooden packaging (wooden frame, pallet, etc.) is used.
• *Shipping, delivery, installation and assembly costs are required separately. Please contact us.

Package size：1300×750×1880 mm　198 kg　 [About Package size]
