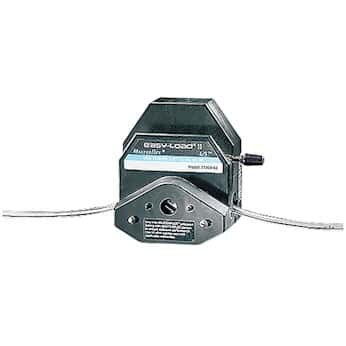

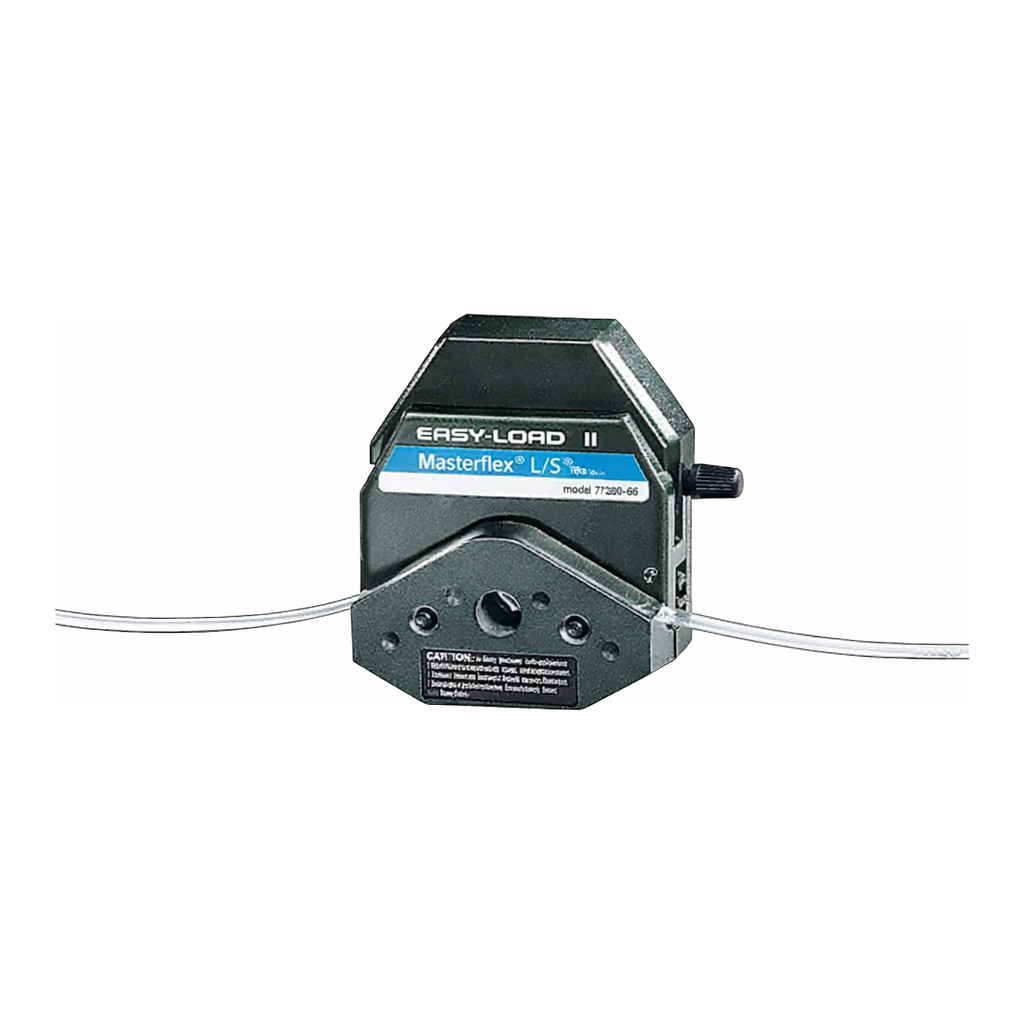

Cole-Parmer Masterflex L/S Easy-Load II Pump Head for Precision Tubing

Masterflex L/S Easy-Load II Pump Head for Precision Tubing, PPS Housing, CRS RotorMasterflex L/S® Easy-Load® II Pump Head for Precision Tubing, PPS Housing, CRS Rotor

Automatic retention holds tubing securely in place with no manual adjustment—just load the tubing and start the pump

• New design and automatic tubing retention allow for multiple tubing sizes—change tubing without removing head from drive
• Four-roller rotor improves pressure performance and mechanical stability while reducing pulsation
• Model available with integrated open-head sensor–connects directly to sensor-equipped drives
• Pump heads are stackable for multichannel applications
• Compact design for efficient use of space

Specifications & Description

• Pump SeriesL/S
• Number of Channels1
• Max Flow Rate (mL/min)2300
• Min Flow Rate (mL/min)0.0012
• Housing MaterialPolyphenylene Sulfide (PPS)
• Tubing RetentionAutomatic
• OcclusionFixed
• Optimum RPM Range (rpm)0.02 to 600
• Rollers4
• Rotor MaterialCold-rolled Steel
• Suction Lift (ft)29
• Suction Lift (m)8.8
• Gear Ratio1:1
• Tubing sizes acceptedL/S® 13, L/S 14, L/S 16, L/S 25, L/S 17, L/S 18
• Volume Per Revolution With L/S 13 Tubing (mL)0.06
• Volume Per Revolution With L/S 14 Tubing (mL)0.21
• Volume Per Revolution With L/S 16 Tubing (mL)0.8
• Volume Per Revolution With L/S 25 Tubing (mL)1.7
• Volume Per Revolution With L/S 17 Tubing (mL)2.8
• Volume Per Revolution With L/S 18 Tubing (mL)3.8
• Length (in)3.25
• Width (in)5
• Height (in)4.75
• Length (mm)82
• Width (mm)127
• Height (mm)121
• Open-Head SensorNo
• DescriptionL/S® Easy-Load® II Pump Head for Precision Tubing, PPS Housing, CRS Rotor

![Two year warranty](https://pim-resources.coleparmer.com/icon/2yrwarranty.gif Two year warranty)

Includes

single-channel mounting hardware. For stacking multiple heads (up to the specified limits of your drive) order two- three- or four-channel hardware separately.

Key Features

• New design and automatic tubing retention allow for multiple tubing sizes—change tubing without removing head from drive
• Four-roller rotor improves pressure performance and mechanical stability while reducing pulsation
• Model available with integrated open-head sensor–connects directly to sensor-equipped drives
• Pump heads are stackable for multichannel applications
• Compact design for efficient use of space
• Suitable for use with L/S® Precision pump tubing sizes
• Rotor is constructed of cold-rolled steel (CRS) for better chemical resistance

More About this Item

These pump heads accept the six L/S® precision tubing sizes. For stacking multiple heads (up to the specified limits of your drive) order two- three- or four-channel hardware separately under Accessories. When two Easy-Load® II pump heads are stacked rollers are offset by 45°--combine the outlets from two stacked heads for a 95% reduction in flow pulsation.
