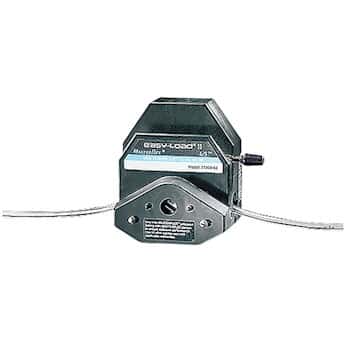

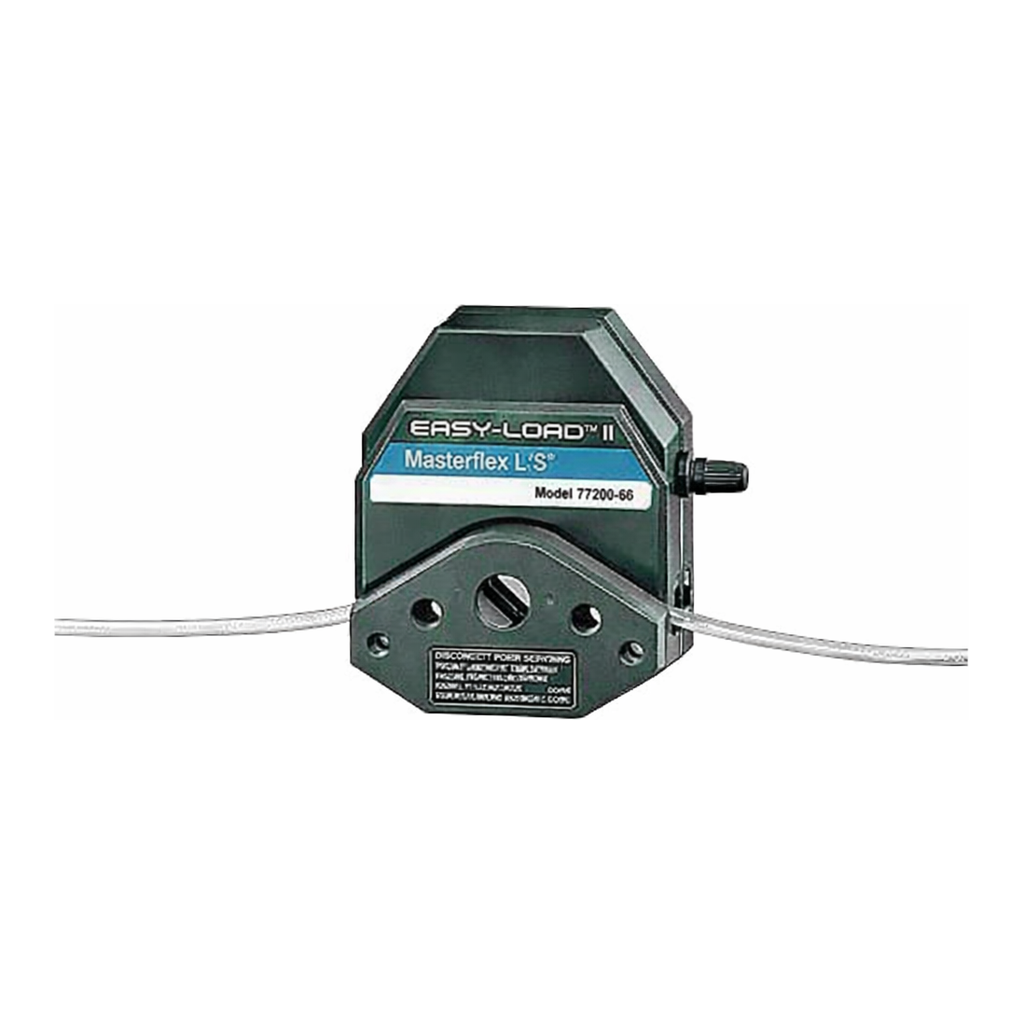

Cole-Parmer Masterflex L/S Easy-Load II Pump Head for High-Performance Precision Tubing

Masterflex L/S Easy-Load II Pump Head for High-Performance Precision Tubing, PPS Housing, SS RotorMasterflex L/S® Easy-Load® II Pump Head for High-Performance Precision Tubing, PPS Housing, SS Rotor

Automatic retention holds tubing securely in place with no manual adjustment—just load the tubing and start the pump

• New design and automatic tubing retention allow for multiple tubing sizes—change tubing without removing head from drive
• Four-roller rotor improves pressure performance and mechanical stability while reducing pulsation
• Model available with integrated open-head sensor–connects directly to sensor-equipped drives
• Pump heads are stackable for multichannel applications
• Compact design for efficient use of space

Specifications & Description

• Pump SeriesL/S
• Number of Channels1
• Max Flow Rate (mL/min)2900
• Min Flow Rate (mL/min)0.034
• Housing MaterialPolyphenylene Sulfide (PPS)
• Tubing RetentionAutomatic
• OcclusionFixed
• Optimum RPM Range (rpm)0.02 to 600
• Rollers4
• Rotor MaterialStainless Steel
• Suction Lift (ft)29
• Suction Lift (m)8.8
• Gear Ratio1:1
• Tubing sizes acceptedL/S® 15, L/S 24, L/S 35, L/S 36
• Volume Per Revolution With L/S 15 Tubing (mL)1.7
• Volume Per Revolution With L/S 24 Tubing (mL)2.8
• Volume Per Revolution With L/S 35 Tubing (mL)3.8
• Volume Per Revolution With L/S 36 Tubing (mL)4.8
• Length (in)3.25
• Width (in)5
• Height (in)4.75
• Length (mm)82
• Width (mm)127
• Height (mm)121
• Open-Head SensorNo
• DescriptionL/S® Easy-Load® II Pump Head for High-Performance Precision Tubing, PPS Housing, SS Rotor

![Two year warranty](https://pim-resources.coleparmer.com/icon/2yrwarranty.gif Two year warranty)

Includes

single-channel mounting hardware. For stacking multiple heads (up to the specified limits of your drive) order two- three- or four-channel hardware separately.

Key Features

• New design and automatic tubing retention allow for multiple tubing sizes—change tubing without removing head from drive
• Four-roller rotor improves pressure performance and mechanical stability while reducing pulsation
• Model available with integrated open-head sensor–connects directly to sensor-equipped drives
• Pump heads are stackable for multichannel applications
• Compact design for efficient use of space
• Suitable for use with L/S® High-Performance Precision pump tubing sizes
• Rotor is constructed of stainless steel (SS) for enhanced durability

More About this Item

These pump heads accept the four L/S® high-performance precision tubing sizes. High-performance precision tubing has a thicker wall than precision tubing enabling better pressure generation, greater suction lift, and greater ability to pump viscous fluids.

For stacking multiple heads (up to the specified limits of your drive) order two- three- or four-channel hardware separately under Accessories. When two Easy-Load® II pump heads are stacked rollers are offset by 45°--combine the outlets from two stacked heads for a 95% reduction in flow pulsation.
