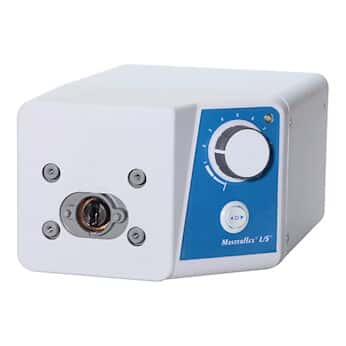

Cole-Parmer Masterflex L/S Analog Variable-Speed Console Drive

Masterflex L/S Analog Variable-Speed Console Drive, 7 to 200 rpm, 230 VACMasterflex L/S® Analog Variable-Speed Console Drive, 7 to 200 rpm; 230 VAC

Compact and cost effective for general fluid transfer applications

• Flow rate 0.42 to 2900 mL/min with L/S tubing—flow rate depends on drive rpm, pump head, and tubing size
• Simple operation with single-turn speed control
• Separate power switch enables you to maintain speed setting when turning drive on/off; front-panel LED indicates power on
• Reversible motor lets you easily prime/purge tubing and pump in either direction
• Remote control of start/stop via DB9 connector on back of drive

Specifications & Description

• Cloud ConnectedNo
• Pump SeriesL/S
• Control TypeAnalog Variable Speed
• Min RPM (rpm)7
• Max RPM (rpm)200
• SpeedVariable
• Speed Control±5%
• Max Flow Rate (mL/min)1130
• Min Flow Rate (mL/min)0.42
• Reversible MotorYes
• Digital DispensingNo
• No. of Pump Heads Accepted2
• Type of Pump Heads AcceptedStandard, Easy-Load, Easy-Load II, Easy-Load 3, Multichannel, High-Performance, Cartridge, PTFE Tubing, PTFE Diaphragm
• Motor (watts)37
• Drive IP ratingIP 22
• Washdown CapableNo
• Power (VAC)180 to 260
• Power (amps)0.8
• Power (Hz)50/60
• Drive Length (in)9.1
• Drive Width (in)7.2
• Drive Height (in)5.3
• Drive Length (mm)230
• Drive Width (mm)183
• Drive Height (mm)134
• Open-Head SensorNo
• Housing MaterialPainted Steel and ABS Plastic
• Motor hp1/20
• Remote I/OStart/Stop
• DescriptionL/S economy variable-speed drive, 20 to 600 rpm, 115 VAC.

![Two year warranty](https://pim-resources.coleparmer.com/icon/2yrwarranty.gif Two year warranty)

Includes

6-ft (1.8 m) line cord with IEC 320/CEE22 socket. Shipped with country-specific cord/plug set; please specify ultimate destination when ordering.

Key Features

• Flow rate 0.42 to 2900 mL/min with L/S tubing—flow rate depends on drive rpm, pump head, and tubing size
• Simple operation with single-turn speed control
• Separate power switch enables you to maintain speed setting when turning drive on/off; front-panel LED indicates power on
• Reversible motor lets you easily prime/purge tubing and pump in either direction
• Remote control of start/stop via DB9 connector on back of drive

More About this Item

Drives accept nine different pump head types: Standard, Easy-Load®, Easy-Load II, Easy-Load 3, Multichannel, High-Performance, Cartridge, PTFE tubing, and PTFE-diaphragm. Drives 07555-00 and -05 are not recommended for use with the PTFE-tubing and PTFE-diaphragm pump heads.
