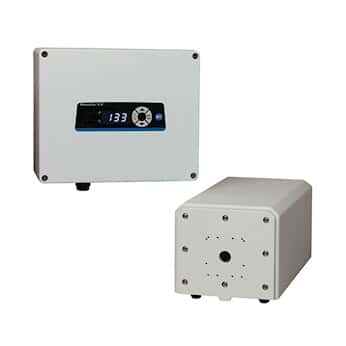

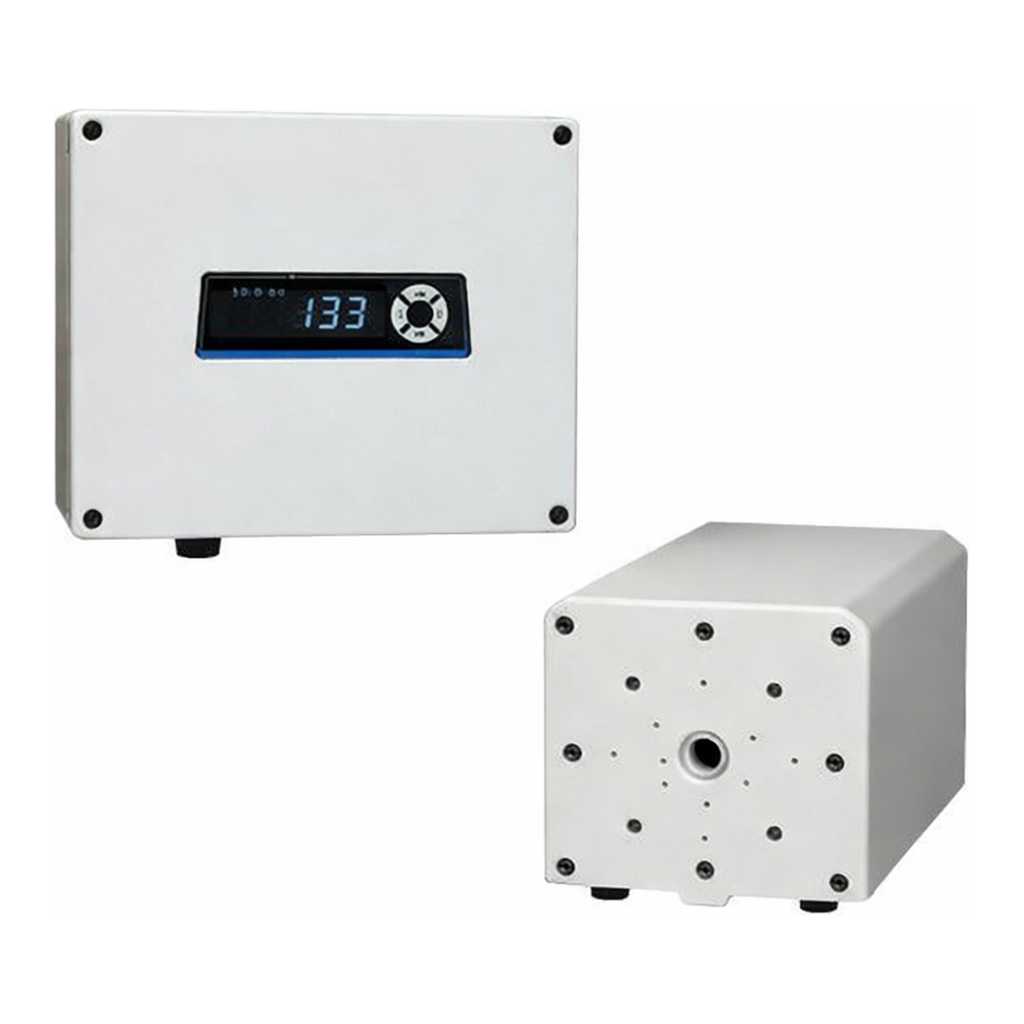

Cole-Parmer Masterflex L/S Digital Precision Washdown Modular Drive with Remote I/O and Wall-Mount Controller

Masterflex L/S Digital Precision Washdown Modular Drive with Remote I/O and Wall-Mount Controller, 6 to 600 rpm, 90 to 260 VACMasterflex L/S® Digital Precision Washdown Modular Drive with Remote I/O and Wall-Mount Controller, 6 to 600 rpm; 90 to 260 VAC

Place where convenient—ideal for limited spaces, hoods, or isolation chambers

• Flow rate 0.06 to 3400 mL/min with L/S tubing—flow rate depends on drive rpm and tubing size
• Three digit LED display shows motor rpm — confirm speed setting at a glance
• Reversible motor—purge tubing before or after pumping; pump fluid in either direction
• LED indicators confirm motor direction
• Wall-mount controller housing is powder-coated aluminum, IP66/NEMA 4X rated for washdown

Specifications & Description

• Pump SeriesL/S
• Cloud ConnectedNo
• Control TypeDigital Variable Speed
• Min RPM (rpm)6
• Max RPM (rpm)600
• SpeedVariable
• Speed Control0.25%
• Max Flow Rate (mL/min)3400
• Min Flow Rate (mL/min)0.36
• Reversible MotorYes
• Digital DispensingNo
• No. of Pump Heads Accepted2
• Type of Pump Heads AcceptedStandard, Easy-Load, Easy-Load II, Easy-Load 3, High Performance, Cartridge, Multichannel, PTFE Tubing, PTFE Diaphragm, Cytoflow
• Motor (watts)75
• Controller IP ratingIP 66
• Drive IP ratingIP 66
• Motor IP ratingIP 66
• Washdown CapableYes
• Power (VAC)90 to 260
• Power (amps)2.2
• Power (Hz)50/60
• Controller Length (in)10.1562
• Controller Width (in)11
• Controller Height (in)4.75
• Controller Length (mm)285
• Controller Width (mm)279
• Controller Height (mm)119
• Motor Length (in)14.25
• Motor Width (in)7
• Motor Height (in)6.5
• Motor Length (mm)362
• Motor Width (mm)178
• Motor Height (mm)165
• Open-Head SensorNo
• Housing MaterialPainted Aluminum Controller; Painted Steel and Aluminum Drive
• Motor hp1/10
• Remote I/O4 to 20 mA, 0 to 10 V, start/stop and direction via contact closure
• DescriptionL/S Precision Modular Washdown Drive w/ Remote; 600 rpm

![Two year warranty](https://pim-resources.coleparmer.com/icon/2yrwarranty.gif Two year warranty)

Includes

6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country-specific plug/cord set; please specify ultimate destination when ordering.

Key Features

• Flow rate 0.06 to 3400 mL/min with L/S tubing—flow rate depends on drive rpm and tubing size
• Three digit LED display shows motor rpm — confirm speed setting at a glance
• Reversible motor—purge tubing before or after pumping; pump fluid in either direction
• LED indicators confirm motor direction
• Wall-mount controller housing is powder-coated aluminum, IP66/NEMA 4X rated for washdown
• Remote control capabilities via weather-resistant connection on controller
• Accepts up to 2 pump heads

More About this Item

L/S® modular drives feature reversible pumping and allow you the flexibility to separate the motor from the controller. These accurate modular drives have powerful motors, speed display, and ±0.25% speed control for precise flow regulation—ideal for metering applications.
