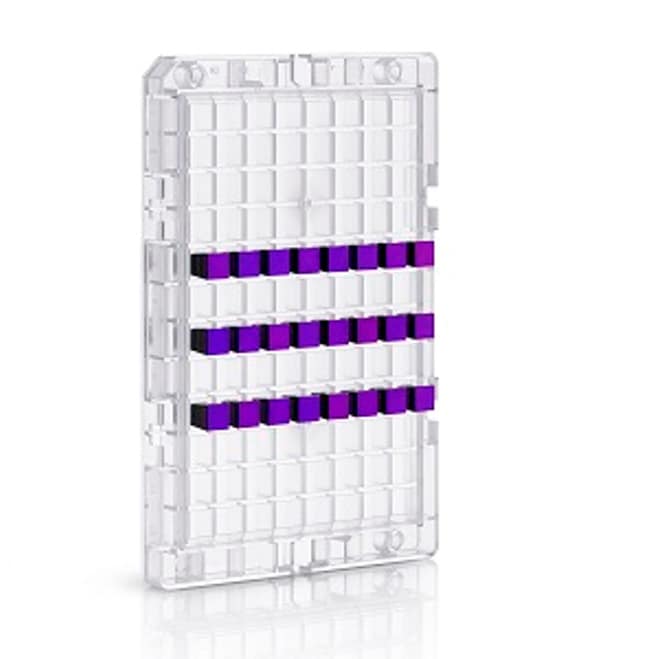

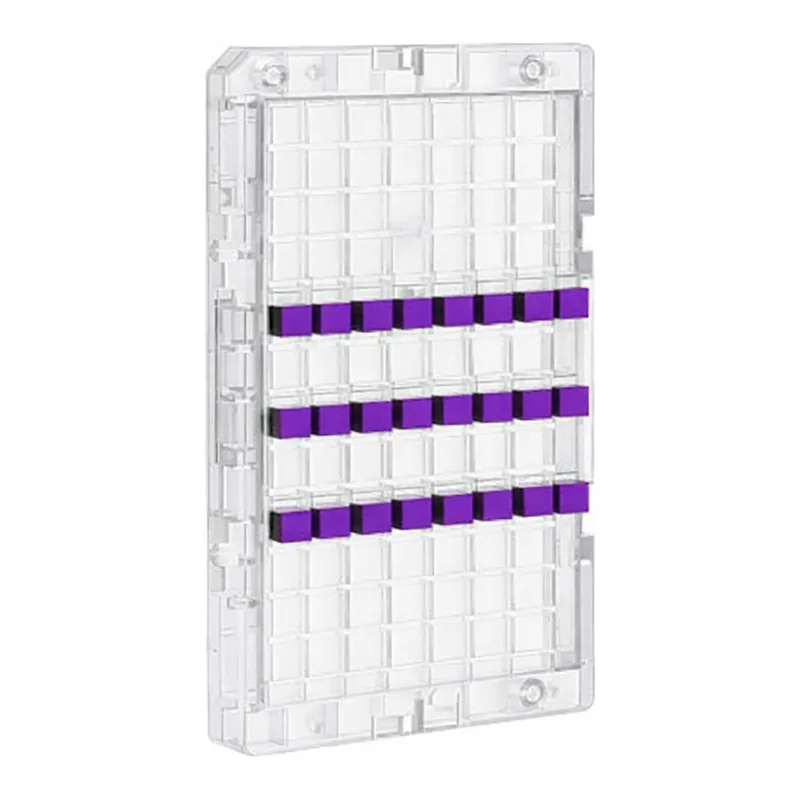

Thermo Fisher Scientific GeneChip Canine Gene 1.1 ST Array Plate

Applied Biosystems™ GeneChip™ Canine Gene 1.1 ST Array Plate

The GeneChip™ Canine Gene 1.1 ST 24-Array Plate enables you to:

• Measure expression across the entire gene with higher resolution and accuracy than classical 3′-biased microarray solutions
• Obtain accurate and reproducible data using multiple independent measurements per transcript
• Process up to 96 samples on a single array plate using the GeneTitan™ Instrument

Development of the Gene Expression Microarrays

Model and applied research organisms are valuable for comparative genomics, evolutionary biology, and understanding molecular mechanisms underlying human disease and agricultural improvement.
The Gene 1.1 ST Array Plates were developed to analyze a wide range of model and applied research organisms, offering whole-transcript coverage.

These arrays were designed in collaboration with leading researchers such as:

• Alan Archibald (Roslin Institute; Porcine Gene 1.1 ST Array design)
• Leonard Zon and Yi Zhou (Children’s Hospital Boston and Harvard Medical School; Zebrafish Gene 1.1 ST Array design)

Key Benefits

• Highest transcript coverage — up to 26 probes per transcript for confident expression measurement
• Whole-transcriptome analysis — captures transcript isoforms missed by 3′-biased designs
• High data correlation — inter- and intra-array strip signal correlation (R > 0.99)
• Convenient format — process up to 96 samples simultaneously with minimal manual handling

Proven Performance from the Industry Standard

The Gene 1.1 ST Array Plates provide whole-transcriptome coverage for selected model and applied research organisms.
All designs are based on the latest genomic content and offer up to 26 probes spanning the full gene length, allowing accurate detection and higher resolution than classical 3′-biased arrays.

Whole-transcriptome analysis enables detection of multiple transcript isoforms, including:

• Splice variants
• Non-polyadenylated transcripts
• Transcripts with alternative polyadenylation sites
• Truncated transcripts

Content Profile

Gene 1.1 ST Array Plates provide comprehensive coverage of the transcribed genome.
Each transcript is interrogated by up to 26 unique 25-mer probes, covering approximately 650 bases per transcript.
This high probe density ensures superior performance, data confidence, and compatibility with future genomic updates.
