VELP TX4 Digital Vortex Mixer with IR Sensor

Robust and Versatile

• Digital control of vibration time and speed
• Timed operation up to 999:59 minutes
• Large, bright LCD multi-parameter display
• Variable speed operation, electronically controlled up to 3000 rpm
• Large choice of accessories to suit tubes, plates and flasks
• Universal voltage / frequency model
• Accessories fit by simple pressure
• Optimum resistance to chemicals from technopolymer casing
• Excellent stability with zinc alloy base
• Large, anti-slip rubber feet for staying in required position
• IP 42 protection against particles and liquids
• Designed for the longest lifespan and guaranteed by 3 years warranty

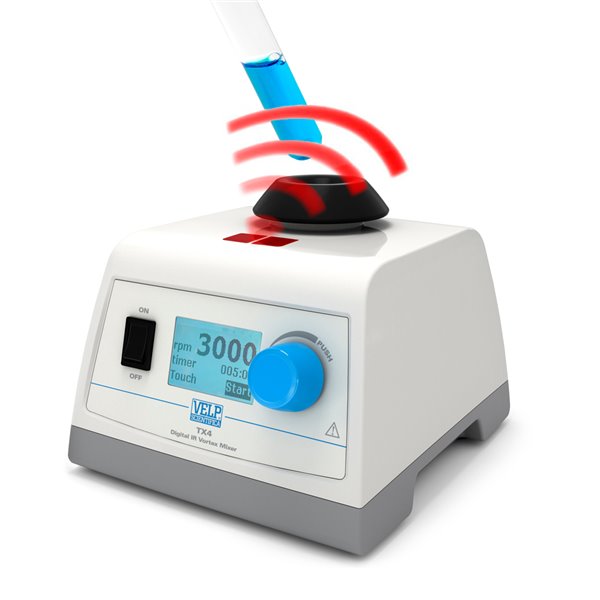

Digital Vortex Mixer with IR Sensor - A VELP Patented Solution

VELP Scientifica is the only company in the world to offer a vortex mixer with the innovative and revolutionary IR Sensor, for an outstanding efficiency and exclusive comfort.

As soon the test tube is detected, the instrument automatically starts vibrating, without the need for any pressure!

Compared with the traditional touch mode, the patented infrared sensor technology ensures a drastic reduction in repetitive strain.

TECHNICAL DATA

CONSTRUCTION MATERIAL:	zinc alloy and technopolymer
SUPPORT SYSTEM:	4 anti-sliding feet
ORBITAL DIAMETER:	4.5 mm
SPEED SETTING:	digital
SPEED CONTROL:	electronic
SPEED:	up to 3000 rpm
OPERATING MODES:	infrared sensor, continuous
DISPLAY:	LCD
TIMER:	0 - 999:59
CEI EN 60529:	IP 42
POWER:	15 W
WEIGHT:	2.7 Kg (5.9 lb)
DIMENSIONS (WXHXD):	150x130x165 mm (5.9x5.1x6.5 in)

Brochures & Leaflets

VELP Scientifica invites you to download brochures and leaflets in order to explore our premium quality solutions and to have all the major key arguments, features and specifications of a product in your hands, in any place, and at any time.

TX4 Digital Vortex Mixer with IR Sensor - Leaflet
Laboratory Equipment - Line Brochure [EN]
Product Portfolio - Brochure [EN]

Instruction manuals

Download the instruction manual that contains all the main technical specifications of the instrument and the necessary information for its correct use.

TX4 instruction manual

Comparison tables

Select the category of products you are interested in and this tool will give you an easy overview of what is available at VELP in order to find the product that is perfect for you. These comparison tables provide a brief description with side by side features from basic equipment to the most advanced analytical solutions.

VELP Vortex Mixers Comparison Table

Certifications

Our compliance to statutory rules and regulations worldwide.
With the CE mark, VELP Scientifica declares that the products are designed and manufactured in compliance with the essential safety requirements of the European Directive on Safety.
The Certification Body (CB) Certificate is an international program created by the IECEE for the acceptance of product safety test results among participating laboratories and certification organizations around the world.
The cNEMKOus mark ensures this product is designed and manufactured in compliance with the International Directive on Safety IEC/EN 61010-1. The cNEMKOus mark has the same legal status as any other NRTL/SCC accredited marks, for U.S. and Canada.

CE Declaration of Conformity VELP Scientifica Vortex Mixers
CB Certificate VELP Scientifica Vortex Mixer
cNEMKOus VELP Scientifica Vortex Mixers
