Thermo Scientific™

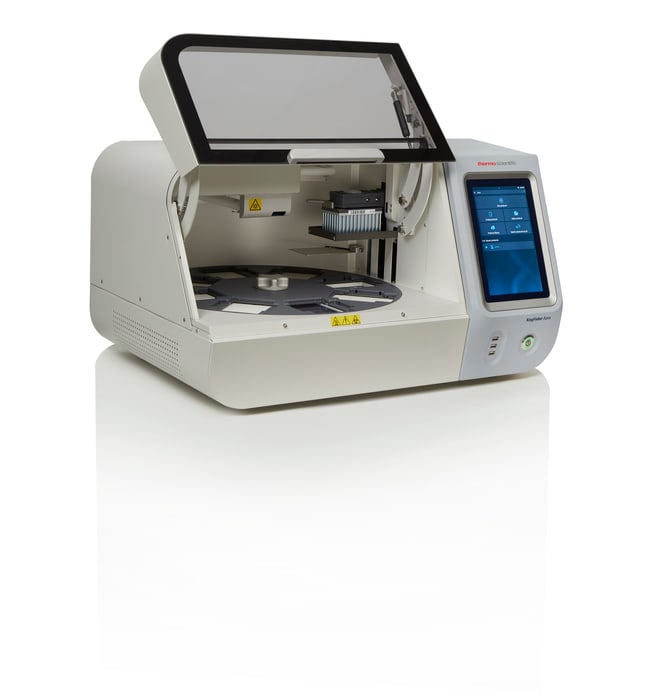

KingFisher Apex Purification Systems

The KingFisher Apex Purification System is a versatile and user-friendly instrument that uses magnetic particle processing to automate the purification or isolation of DNA, RNA, proteins, and cells from virtually any source.

The KingFisher Apex Purification System is a versatile and user-friendly instrument that uses magnetic particle processing to automate the purification or isolation of DNA, RNA, proteins, and cells from virtually any source. It moves magnetic beads, not liquids, through the main steps of sample preparation: bind, wash, and elute. This process provides excellent quality, reproducible results, and reduces hands-on time for sample processing.

사양

샘플 종류Plasma, Blood, Urine, Saliva, Cell Homogenate, Tissue Homogenate

적합한 다운스트림 분석PCR/qPCR, Sequencing, Mass Spec

부피(미터법) 프로세싱10 to 80 μL

데크 당 플레이트8

용량96 Samples

설명KingFisher Apex with 96 PCR head

Collection Efficiency of Particles>98% with 2.8 μm particle size

냉각 온도Down to +40°C

디스플레이Touch screen (10 in.)

용도(애플리케이션)Genomics and proteomics, target identification, veterinary assays, biomarker discovery, quality control, forensics

가열 온도+4°C above ambient temperature up to +100°C

자기봉96

입자 크기(미터법)ca. >1 μm

실행당 샘플96

자석 헤드 유형96 in one frame, interchangeable

UV 노출 시간Up to 23 hr. 59 min.

UV 램프2 pcs

플레이트 유형96 PCR plate (semi/skirted)

깊이(영국식 단위)22 in.

깊이(미터법)56 cm

높이(영국식 단위)18 in.

높이(미터법)46 cm

중량(영국식 단위)123 lb.

중량(미터법)56 kg

폭(영국식 단위)31 in.

폭(미터법)79 cm

Unit SizeEach
