Thermo Scientific™

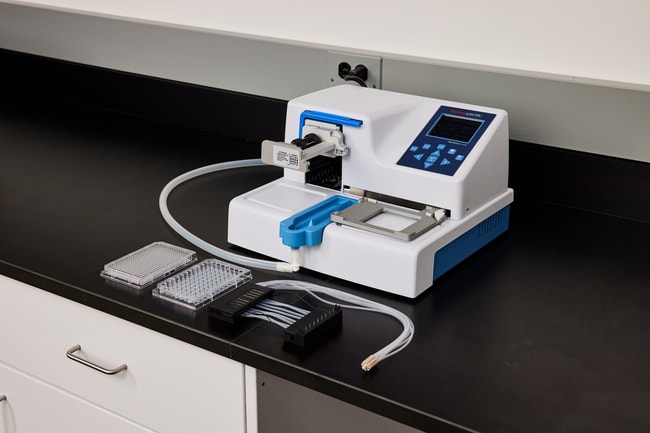

Multidrop™ Combi SMART+ Reagent Dispenser

뛰어난 유연성과 성능을 제공하고 사용이 간편한 Thermo Scientific™ Multidrop™ Combi Reagent Dispenser를 사용하여 실험실의 특정 요구 사항을 충족하십시오.

기본에 충실한 마이크로 웰플레이트 디스펜서인 Thermo Scientific™ Multidrop™ Combi+ Reagent Dispenser는 용액의 분주가 쉽고 빠릅니다.

시약 분주를 위한 다양한 기능과 함께 신약개발 또는 유전체 및 단백체 분석에 활용할 수 있습니다.

사양

정확도Small tube dispensing cassette: 2μL, ±10%; 10μL, ±5% Standard tube dispensing cassette: 20μL, ±2%; 100μL, ±1%

제품 유형Reagent Dispenser

설명Multidrop™ Combi+ Reagent Dispenser

채널8

부피(미터법)0.5 to 2500 μL

용도(애플리케이션)The instrument is intended for automated dispensing of up to eight different reagents simultaneously into 6, 12, 24, 48, 96, or 384-well plate format. It can be used in several applications, for example, in drug discovery/high-throughput screening, genomic, proteomic and cell-based assays, and ELISA. It is capable of dispensing into 2D tubes in SLAS format that are shorter than 50mm.

용도(장비)Can be used with automated systems (e.g. Thermo Scientific™ Orbitor™ Microplate Mover) and a variety of microplates and strips in 96, 384 or 1536-well plate format

포함One standard tube dispensing cassette (cat. no. 24072670)

인터페이스On-board software and Serial RS-232 or USB for PC control

플레이트 유형6-1536 - 6, 12, 24, 48, 96, and 384 well plates

정밀도

• Small tube dispensing cassette: 2 μL: CV ≤ 5%; 10 μL: CV ≤ 3%
• Standard tube dispensing cassette: 20 μL: CV ≤ 1.5%; 100 μL: ≤ CV 1%

속도

• 96-well plate: 10μL in 5 sec.; 20μL in 5sec.; 100μL in 10 sec
• 384-well plate: 1μL in 6 sec.; 5μL in 9 sec.; 10μL in 13 sec.; 20μL in 21 sec.
• 1536-well plate: 1μL in 15 sec.; 5μL in 28 sec.

부피(영국식 단위)

• Small tube dispensing cassette: 0.5-50μL, in 0.5μL increment
• Standard tube dispensing cassette: 5-2500μL, in 5 μL increment

부피(미터법) 데드<1mL volume range 0.5-50μL; <7mL volume range >50μL (it is possible to blackflush the reagent into original reservoir to avoid loss of expensive reagent)

워런티1 year

치수(길이 x 폭 x 높이)14 x 8.6 x 12.9 in.; 35.5 x 22 x 33 cm

중량(영국식 단위)20.1 lb

중량(미터법)9.1 kg

Unit SizeEach
