Thermo Scientific™

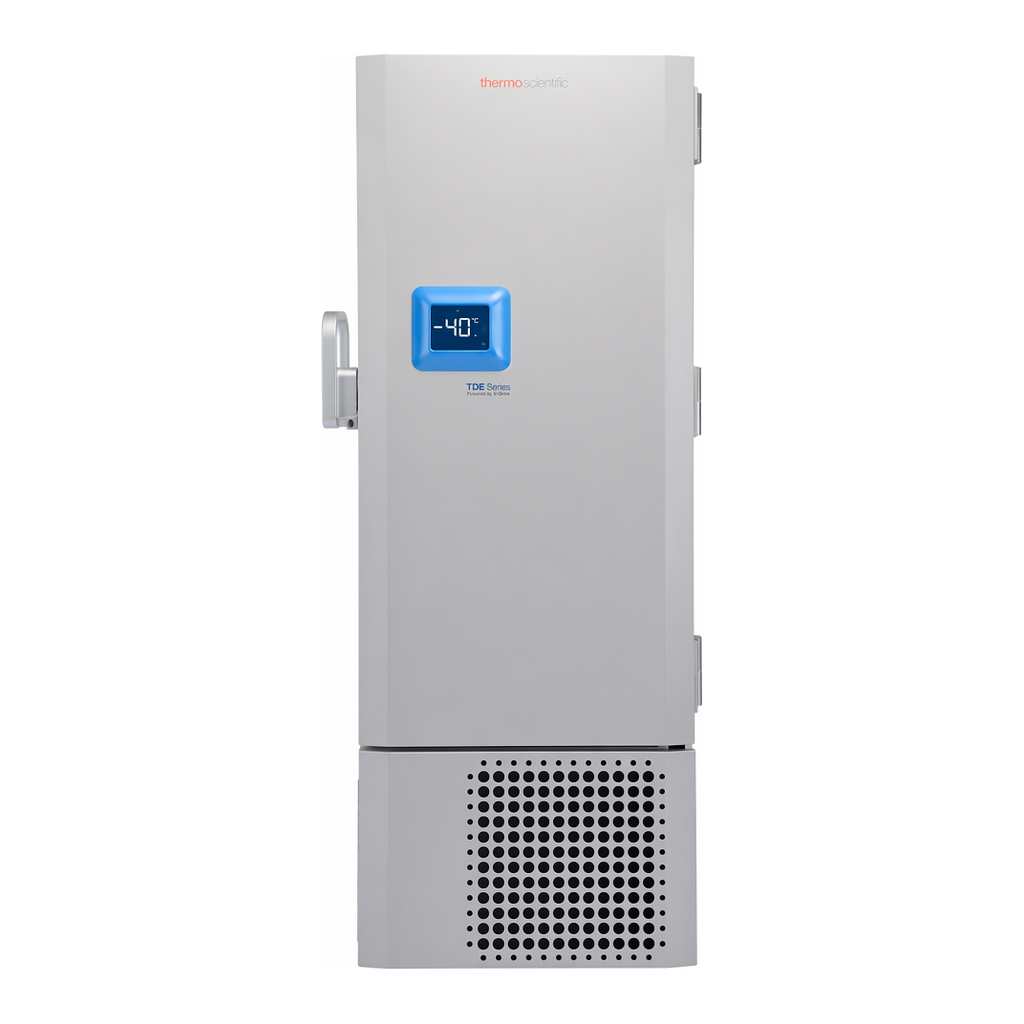

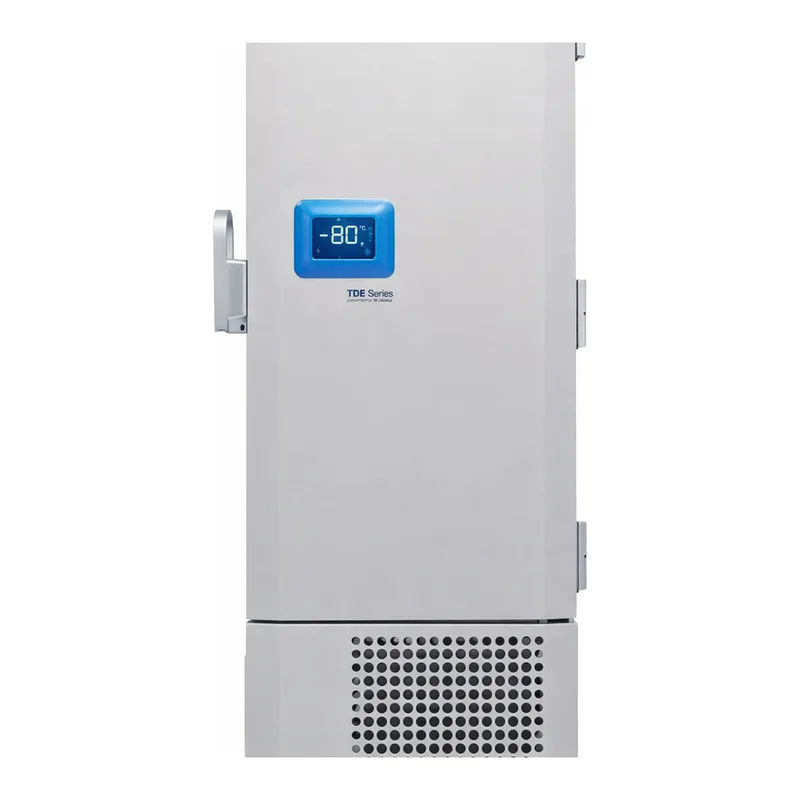

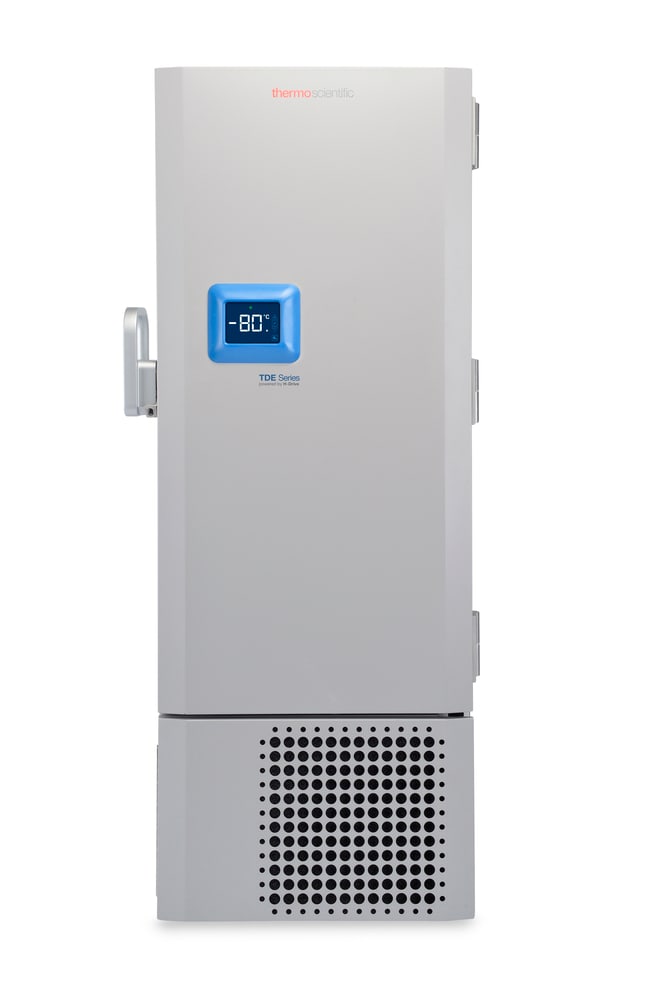

TDE Series -86°C Ultra-Low Temperature Freezers

Part of the Standard Performance (STP) family, Thermo Scientific™ TDE Series ultra-low temperature freezers, powered by H-drive, feature four upright models, maximizing storage capacity from 30,000 up to 60,000 2 mL vials. The TDE Series is a sustainable and reliable solution with ultimate sample security and operational savings for every lab.

Part of the Standard Performance (STP) family, Thermo Scientific™ TDE Series ultra-low temperature freezers, powered by H-drive, feature four upright models, maximizing storage capacity from 30,000 up to 60,000 2 mL vials.

The TDE Series is a sustainable and reliable solution with ultimate sample security and operational savings for every lab. From our first ULT freezer in 1940 to today, the combined experience of REVCO, Forma Scientific, Jewett, HERAFreeze, and other families of products continues to drive our ability to deliver industry-leading innovations that help accelerate science and health care.

사양

용량(영국식 단위)14.9 cu. ft.

용량(미터법)422 L

온도 범위-50°C to -80°C

도어 스타일Latched pull-out swing door

No. of Doors1 (1 compartment)

내부 도어4

도어 개방 회복14 minutes

힌지 면Left

캐비닛 재질Cold-rolled Steel

챔버 재질냉간압연 강철

단열Vacuum, foam

내부Painted steel

외부 마감재Powder-coated steel

선반3

드로어None

랙 수12

키트 당 랙 수3

인증/규정준수CE, UL, cUL, ISO 13485

스타일직립형

디스플레이HIC Interface, 7-Segment Display with capacitive touch screen

캐스터4

색상Gray

콘덴서 유형Fan-forced

용도(애플리케이션)Storage of general (non-flammable) laboratory materials

용도(장비)Storage racks

포함Shelves, power plug

일반적인 수명10 years

워런티5 years parts

성에 제거수동

최소 클리어런스30 cm

-80°C에서의 피크 변화+6.0 /4.5c

-80 C 277 minutes

수랭식No

깊이(영국식 단위) 외부38.5 in.

깊이(영국식 단위) 내부28.3 in.

깊이(미터법) 외부97.7 cm

깊이(미터법) 내부71.9 cm

높이(영국식 단위) 외부78 in.

높이(영국식 단위) 내부51.2 in.

높이(미터법) 외부1981 mm

높이(미터법) 내부1300 mm

길이(영국식 단위) 외부38.5 in.

길이(미터법) 외부978 mm

길이(영국식 단위) 내부28.3 in.

길이(미터법) 내부719 mm

폭(영국식 단위) 외부23 in.

폭(영국식 단위) 내부17.8 in.

폭(미터법) 외부584 mm

폭(미터법) 내부452 mm

모니터링 옵션Available separately

액세스 보안Key Lock Standard, Padlock Compatible

차트 기록계Optional

데이터 출력RS485/4-20mA output/Dry Contacts

작동 모드Standard Mode

설정 지점 보안Yes

백업 시스템CO2 or LN2 Optional

Smart View 호환성Yes

암페어7.2 Amp

플러그 유형EU

전압230 V

전기 요구사항208-230V, 60 Hz, 1 Phase

주파수60 Hz

상One

에너지 사용량11kWh/day

바이알 용량30,000

압축기H-drive

냉매R290/R170+R290 Mix

배송 중량(영국식 단위)712 lbs.

배송 중량(미터법)323 kg

중량(영국식 단위)622 lbs.

중량(미터법)282 kg

보유30,000 samples

랙 용량12

Unit SizeEach
