Invitrogen™

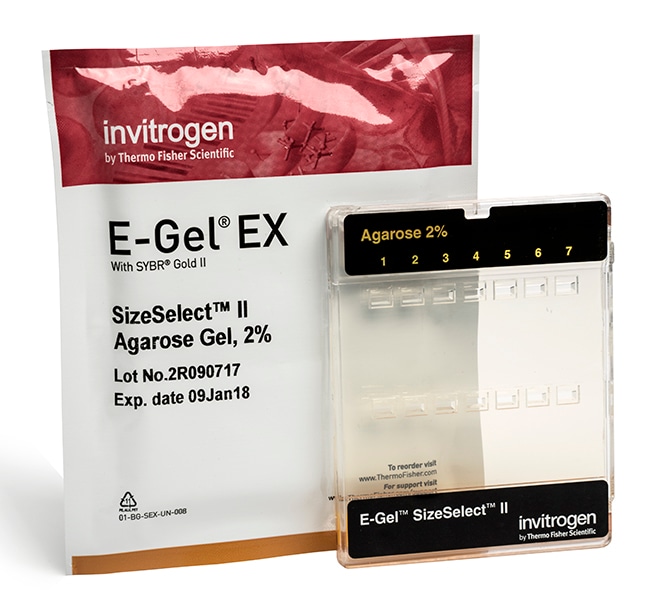

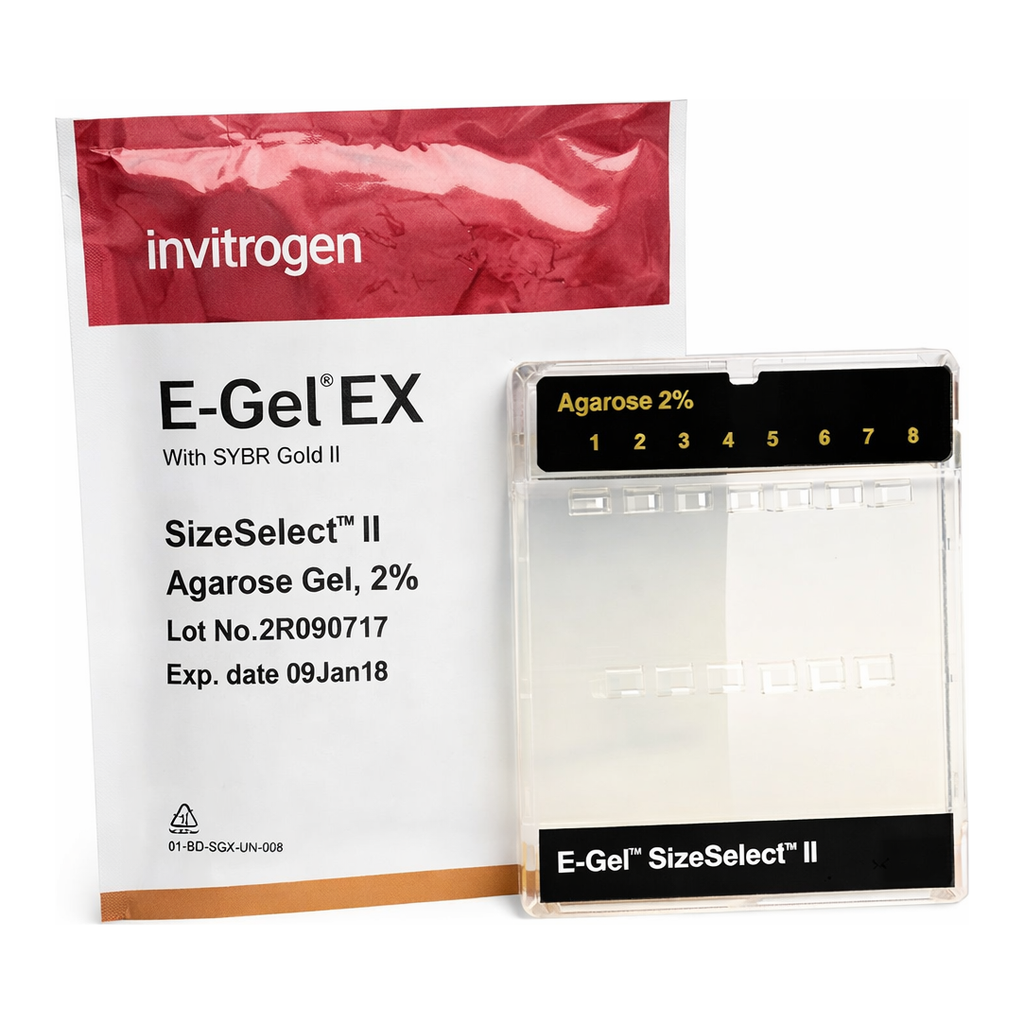

E-Gel™ SizeSelect™ II Agarose Gels, 2%

Electrophoresis using E-Gel SizeSelect II Agarose Gels is a convenient method for accurate size selection of DNA libraries for next-generation자세히 알아보기

Electrophoresis using E-Gel SizeSelect II Agarose Gels is a convenient method for accurate size selection of DNA libraries for next-generation sequencing (NGS) applications. With E-Gel SizeSelect II gels, you can separate and recover DNA for library construction in three easy steps: load, run, and retrieve.

E-Gel SizeSelect II agarose gels enable you to:
• Save time—no need to prepare a gel and gel-purify after electrophoresis
• Simplify DNA recovery—retrieve purified DNA directly from the recovery well with a pipette
• Improve result consistency—achieve accurate and consistent size selection

Fast and accurate DNA size selection in three easy steps
DNA fragment library size selection with E-Gel SizeSelect II precast gels is a simple 3-step procedure that eliminates conventional gel purification. To extract the DNA band of interest, load the sample into the loading wells, run the gel until the band reaches the recovery wells, and retrieve the sample. The resulting fragment library demonstrates a sharp fragment cut-off and is ready for use in an NGS workflow without any need for re-purification. Multiple bands from the one loading well can be collected during the same gel run.

DNA fragment libraries extracted from E-Gel SizeSelect II gels are compatible with the Ion Torrent sequencing workflow.

Real-time control of the sample

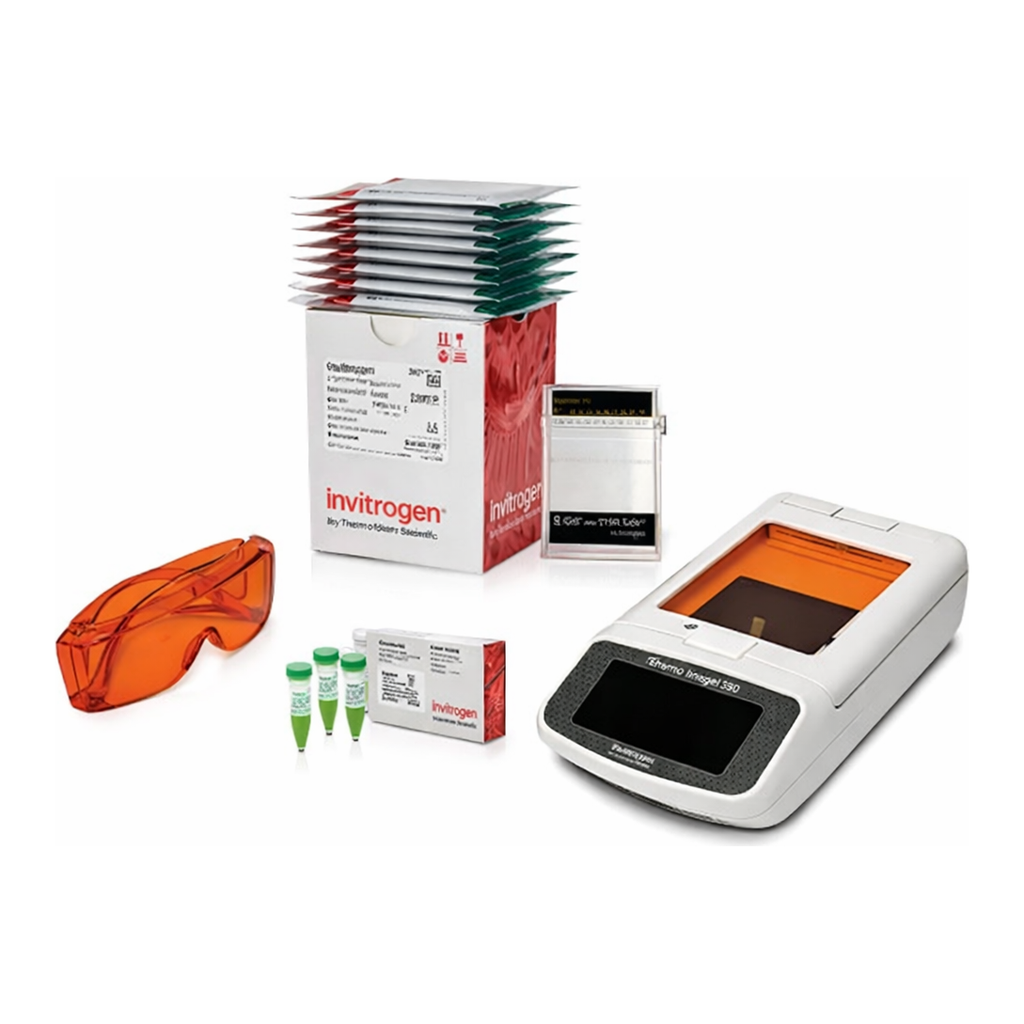

SYBR Gold II DNA Gel Stain is incorporated into the gel itself, allowing you to visually monitor DNA band migration progress on the blue-light transilluminator of the E-Gel Power Snap Electrophoresis Device. The gel has reference marks for better control of the sample prior to the sample recovery step. If the target DNA passes the recovery well, the Reverse gel protocol allows for re-capture of the DNA band.

Nucleic acid markers
Learn more about our E-Gel DNA ladders ›

Enables better results
Even a short exposure of your DNA sample to UV light during visualization may lead to DNA damage. Using E-Gel SizeSelect II gels together with the blue-light transilluminator minimizes the risk of UV damage compared to a conventional gel purification workflow. The direct access to your sample from the retrieval well allows you to avoid excising gel band slices and the risk of losing your DNA during a gel purification step.

사양

Compatible LaddersE-Gel™ Sizing DNA Ladder

젤 비율2%

젤 유형E-Gel

제품 유형Agarose Gel

염색 유형SYBR™ Gold

웰7-well

수량10 gels

배송 조건Room Temperature

Unit SizeEach
